| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004376_30409cztM0_level2.evt | modeM0/AS1C05_019T04_9000004376_30409cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,512,320 | 97,542,720 |
| Size | 494.5 MB | 93.0 MB |
| Events in quadrant A | 4,134,812 | 642,887 |
| Events in quadrant B | 4,654,047 | 651,763 |
| Events in quadrant C | 3,006,154 | 631,243 |
| Events in quadrant D | 3,507,345 | 614,827 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16318 | 1 |
| B | 0 | 18022 | 1 |
| C | 0 | 12742 | 1 |
| D | 0 | 14269 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5908 | 272 | 4.603927% |
| B | 5909 | 87 | 1.472330% |
| C | 5909 | 129 | 2.183111% |
| D | 5909 | 151 | 2.555424% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6998 | 5908 | 188 | 188 | 2.69% | 3.18% |  |
| B | 6999 | 5909 | 4 | 4 | 0.06% | 0.07% |  |
| C | 6999 | 5909 | 7 | 7 | 0.10% | 0.12% |  |
| D | 6999 | 5909 | 118 | 118 | 1.69% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 239 | 1126737 | 7740.38 | 732 | 718 | 145.5 |
| A | 0 | 13 | 163313 | 1117.69 | 732 | 718 | 145.5 |
| A | 8 | 192 | 15113 | 98.95 | 732 | 718 | 145.5 |
| B | 6 | 159 | 1662230 | 11958.33 | 729 | 712 | 138.9 |
| B | 4 | 80 | 54169 | 384.74 | 729 | 712 | 138.9 |
| B | 0 | 229 | 38301 | 270.54 | 729 | 712 | 138.9 |
| C | 14 | 238 | 130408 | 789.85 | 707 | 710 | 164.2 |
| C | 15 | 208 | 46256 | 277.37 | 707 | 710 | 164.2 |
| C | 10 | 22 | 24845 | 146.98 | 707 | 710 | 164.2 |
| D | 2 | 250 | 273170 | 1540.54 | 709 | 692 | 176.9 |
| D | 13 | 249 | 215262 | 1213.14 | 709 | 692 | 176.9 |
| D | 8 | 195 | 180228 | 1015.06 | 709 | 692 | 176.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

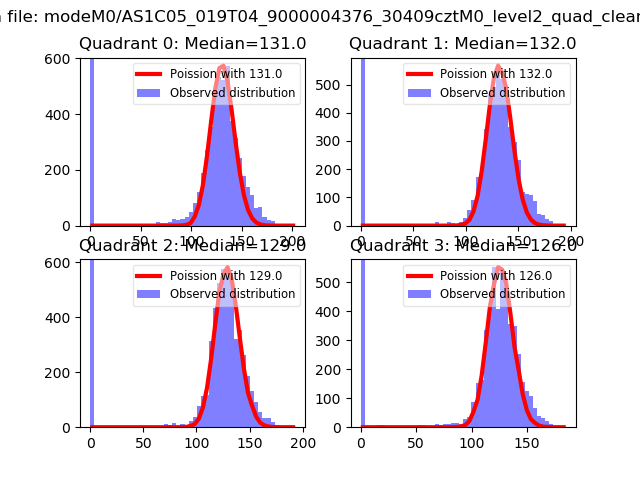

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

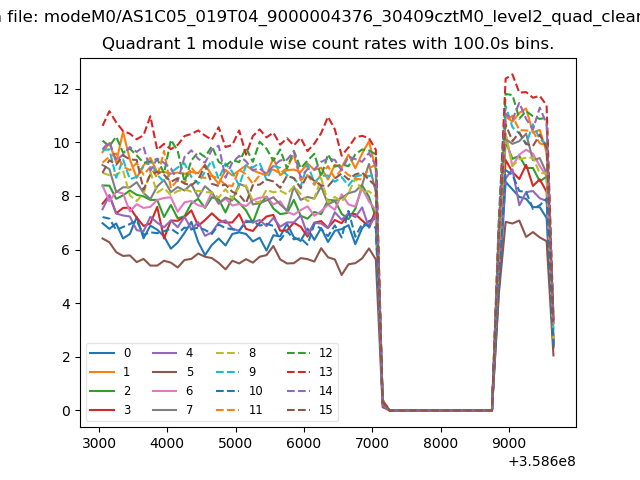

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

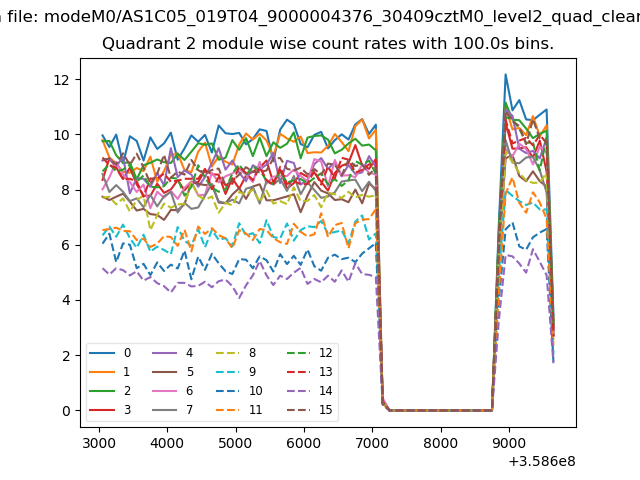

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

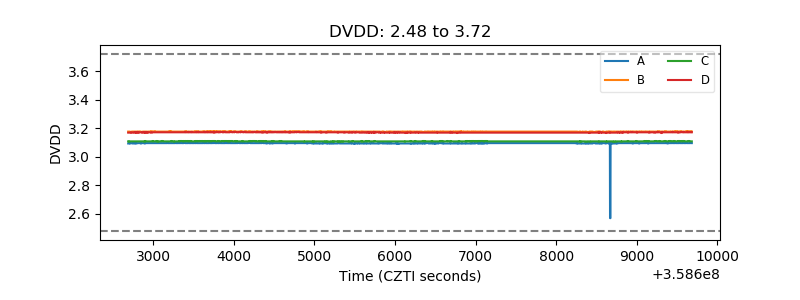

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

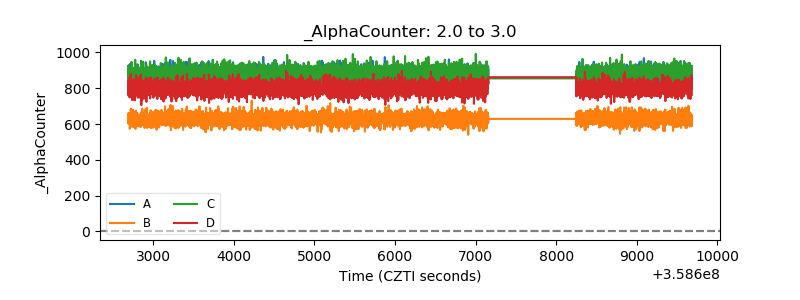

| Alpha Counter |  |
| _CPM_Rate |  |

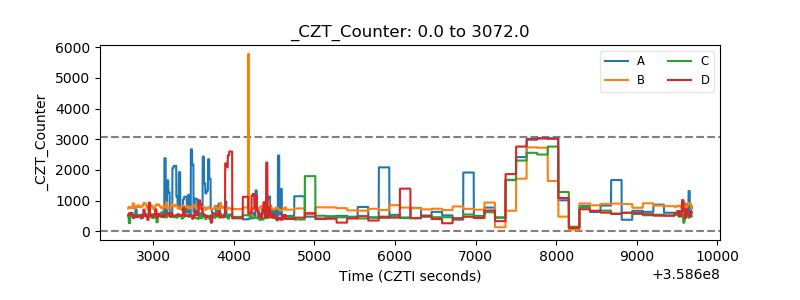

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

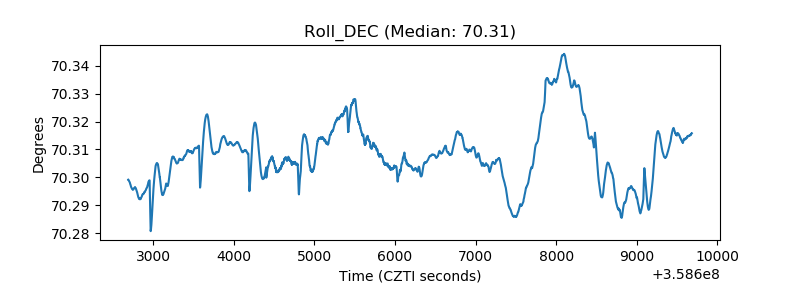

| _Roll_DEC |  |
| _Roll_RA |  |

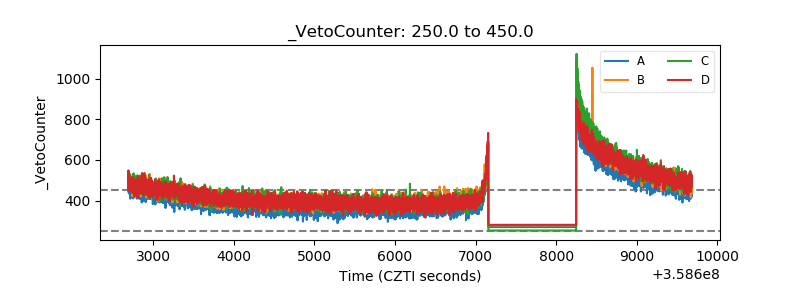

| Veto Counter |  |
