| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004376_30410cztM0_level2.evt | modeM0/AS1C05_019T04_9000004376_30410cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,306,880 | 118,140,480 |
| Size | 542.9 MB | 112.7 MB |
| Events in quadrant A | 3,708,323 | 801,908 |
| Events in quadrant B | 5,301,864 | 799,500 |
| Events in quadrant C | 3,531,401 | 780,145 |
| Events in quadrant D | 4,266,001 | 749,374 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15408 | 2 |
| B | 0 | 19890 | 2 |
| C | 0 | 14746 | 2 |
| D | 0 | 17031 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 136 | 2.123673% |
| B | 6404 | 134 | 2.092442% |
| C | 6404 | 208 | 3.247970% |
| D | 6403 | 282 | 4.404186% |

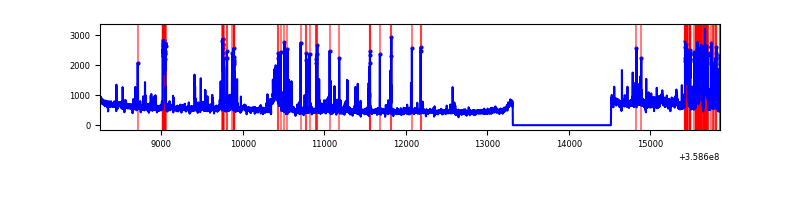

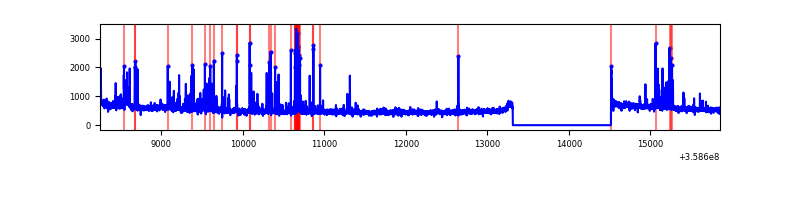

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6404 | 47 | 47 | 0.62% | 0.73% |  |
| B | 7609 | 6404 | 21 | 21 | 0.28% | 0.33% |  |
| C | 7609 | 6404 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7608 | 6403 | 195 | 195 | 2.56% | 3.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 313402 | 1877.34 | 846 | 832 | 166.5 |
| A | 14 | 239 | 96641 | 575.44 | 846 | 832 | 166.5 |
| A | 8 | 192 | 28289 | 164.91 | 846 | 832 | 166.5 |
| B | 6 | 159 | 1826241 | 11747.36 | 836 | 816 | 155.4 |
| B | 4 | 80 | 110267 | 704.36 | 836 | 816 | 155.4 |
| B | 0 | 229 | 77382 | 492.73 | 836 | 816 | 155.4 |
| C | 14 | 238 | 160168 | 852.51 | 818 | 825 | 186.9 |
| C | 15 | 208 | 71603 | 378.67 | 818 | 825 | 186.9 |
| C | 14 | 254 | 40878 | 214.29 | 818 | 825 | 186.9 |
| D | 13 | 249 | 428357 | 2220.81 | 815 | 794 | 192.5 |
| D | 2 | 250 | 308746 | 1599.54 | 815 | 794 | 192.5 |
| D | 8 | 195 | 229017 | 1185.41 | 815 | 794 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

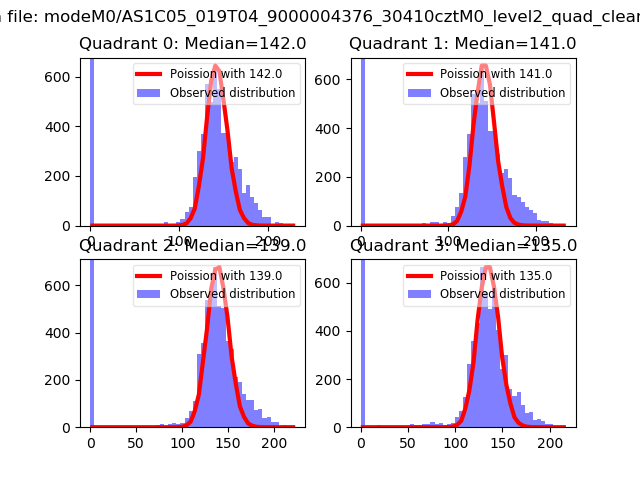

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

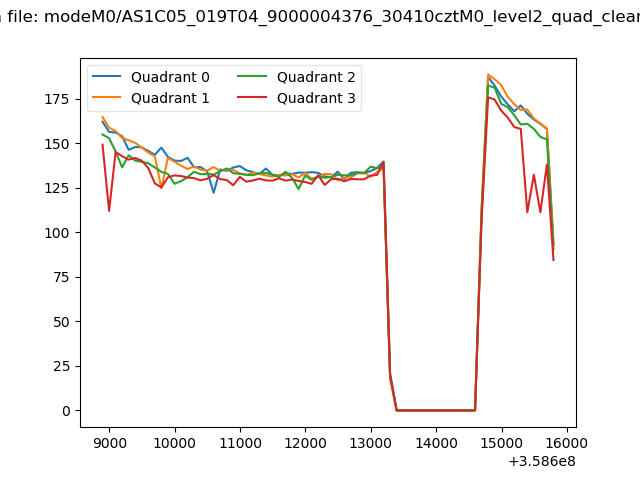

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

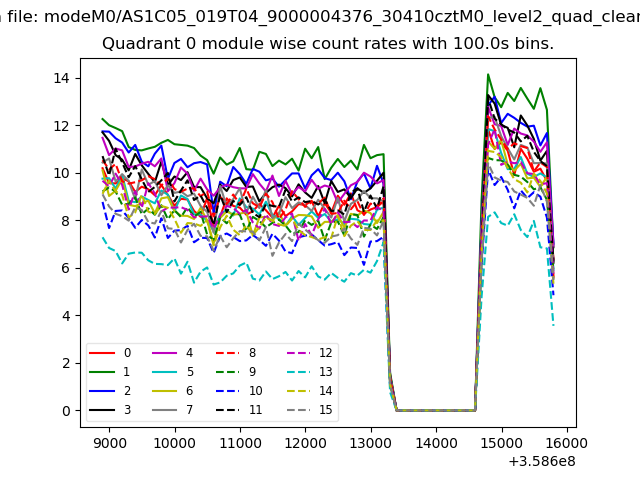

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

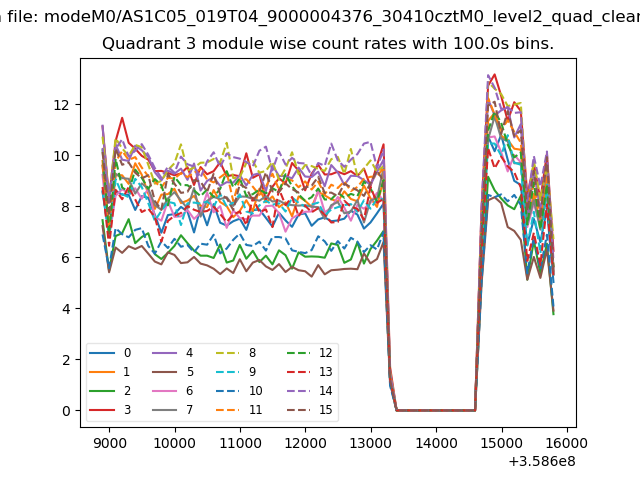

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

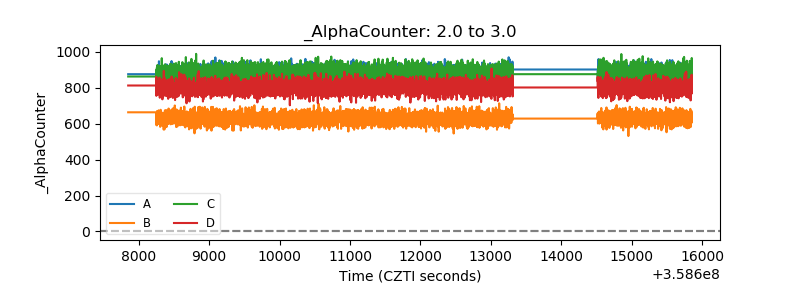

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

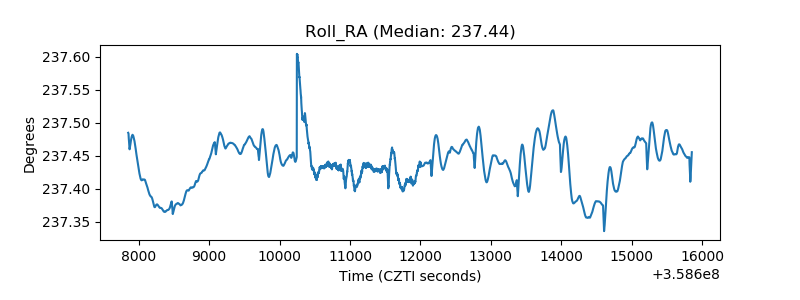

| _Roll_RA |  |
| Veto Counter |  |
