| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T02_9000004378_30426cztM0_level2.evt | modeM0/AS1A10_121T02_9000004378_30426cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,233,600 | 80,026,560 |
| Size | 561.9 MB | 76.3 MB |
| Events in quadrant A | 3,495,097 | 506,283 |
| Events in quadrant B | 5,476,355 | 502,838 |
| Events in quadrant C | 3,838,549 | 494,713 |
| Events in quadrant D | 4,616,439 | 487,382 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14477 | 2 |
| B | 0 | 20320 | 2 |
| C | 0 | 15671 | 2 |
| D | 0 | 18030 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6190 | 94 | 1.518578% |
| B | 6190 | 168 | 2.714055% |
| C | 6190 | 207 | 3.344103% |
| D | 6190 | 510 | 8.239095% |

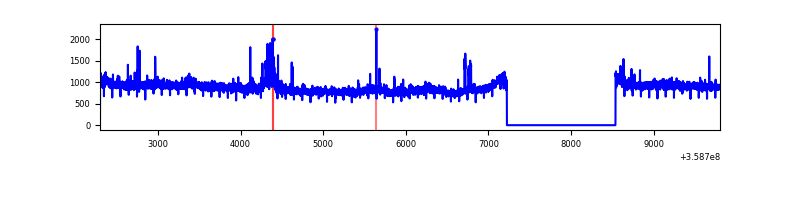

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7505 | 6190 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7505 | 6190 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7505 | 6190 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7505 | 6190 | 190 | 190 | 2.53% | 3.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 24648 | 135.62 | 894 | 881 | 175.2 |
| A | 0 | 13 | 22302 | 122.24 | 894 | 881 | 175.2 |
| A | 13 | 254 | 11771 | 62.14 | 894 | 881 | 175.2 |
| B | 6 | 159 | 1809523 | 11107.61 | 883 | 865 | 162.8 |
| B | 0 | 229 | 163062 | 996.11 | 883 | 865 | 162.8 |
| B | 4 | 80 | 28035 | 166.86 | 883 | 865 | 162.8 |
| C | 3 | 233 | 185865 | 927.08 | 866 | 876 | 199.5 |
| C | 14 | 238 | 152347 | 759.1 | 866 | 876 | 199.5 |
| C | 10 | 22 | 65608 | 324.41 | 866 | 876 | 199.5 |
| D | 13 | 104 | 695033 | 3136.22 | 846 | 833 | 221.3 |
| D | 2 | 250 | 310096 | 1397.17 | 846 | 833 | 221.3 |
| D | 13 | 249 | 187792 | 844.63 | 846 | 833 | 221.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

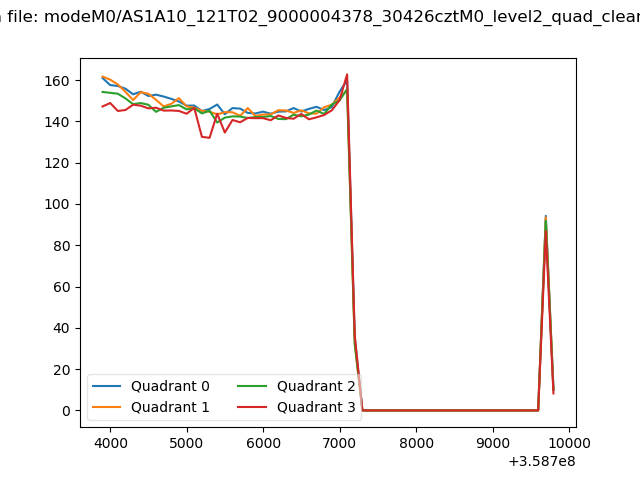

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

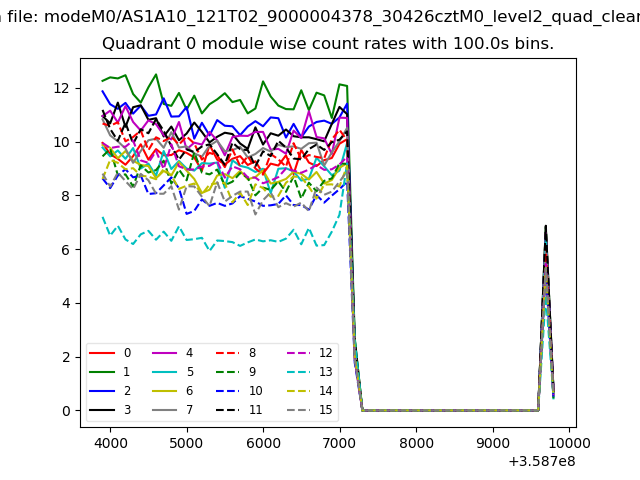

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

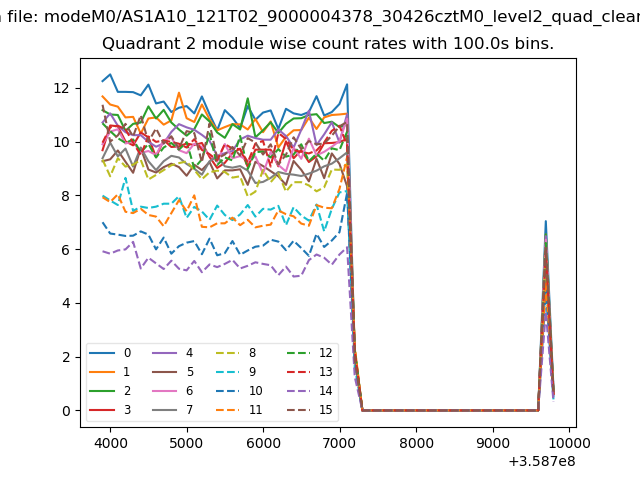

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

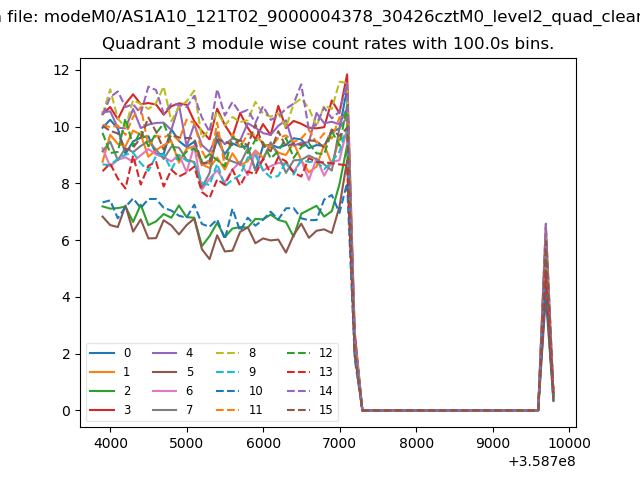

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

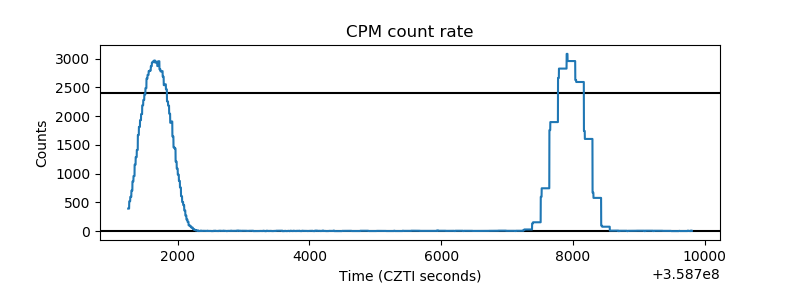

| _CPM_Rate |  |

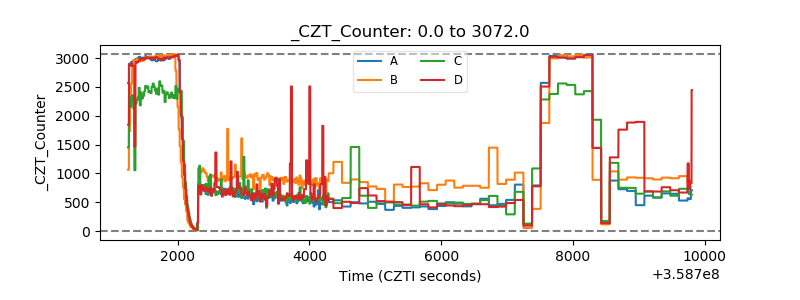

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

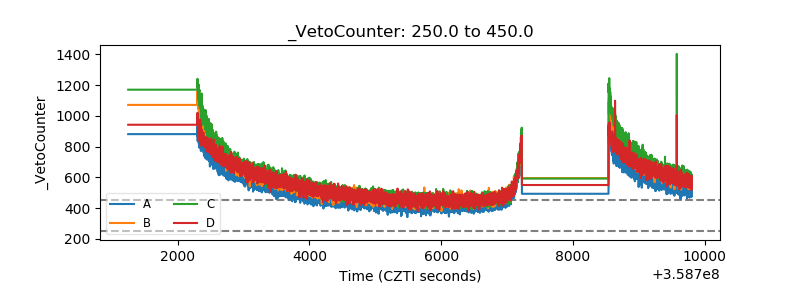

| Veto Counter |  |
