| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T02_9000004378_30454cztM0_level2.evt | modeM0/AS1A10_121T02_9000004378_30454cztM0_level2_quad_clean.evt |
| Size (bytes) | 621,838,080 | 70,338,240 |
| Size | 593.0 MB | 67.1 MB |
| Events in quadrant A | 3,647,376 | 430,720 |
| Events in quadrant B | 5,646,943 | 423,658 |
| Events in quadrant C | 3,790,125 | 414,113 |
| Events in quadrant D | 5,308,873 | 407,564 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15059 | 2 |
| B | 0 | 20896 | 2 |
| C | 0 | 15447 | 2 |
| D | 0 | 20427 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6502 | 96 | 1.476469% |
| B | 6502 | 160 | 2.460781% |
| C | 6502 | 181 | 2.783759% |
| D | 6502 | 265 | 4.075669% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7772 | 6503 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7772 | 6503 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7772 | 6503 | 16 | 16 | 0.21% | 0.25% |  |
| D | 7772 | 6503 | 198 | 198 | 2.55% | 3.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 26537 | 139.27 | 936 | 922 | 183.9 |
| A | 13 | 254 | 12170 | 61.15 | 936 | 922 | 183.9 |
| A | 3 | 137 | 8588 | 41.68 | 936 | 922 | 183.9 |
| B | 6 | 159 | 1799884 | 10552.45 | 913 | 893 | 170.5 |
| B | 0 | 229 | 237964 | 1390.6 | 913 | 893 | 170.5 |
| B | 12 | 111 | 19643 | 109.98 | 913 | 893 | 170.5 |
| C | 14 | 238 | 149714 | 731.8 | 890 | 900 | 203.4 |
| C | 0 | 10 | 85608 | 416.55 | 890 | 900 | 203.4 |
| C | 3 | 233 | 55617 | 269.07 | 890 | 900 | 203.4 |
| D | 13 | 104 | 1464473 | 6892.05 | 903 | 887 | 212.4 |
| D | 12 | 227 | 176405 | 826.52 | 903 | 887 | 212.4 |
| D | 8 | 195 | 135019 | 631.63 | 903 | 887 | 212.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

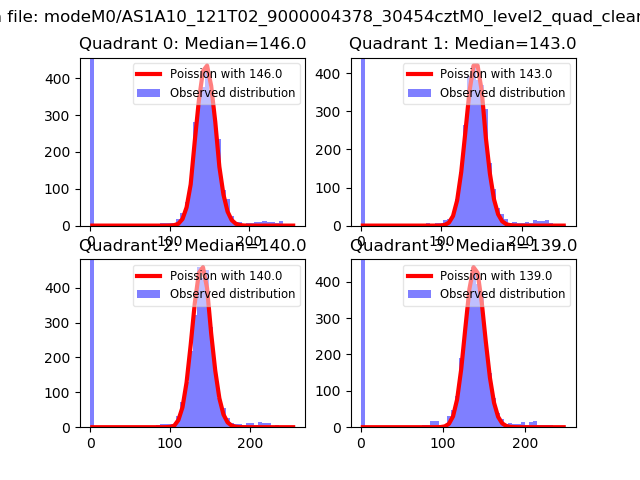

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

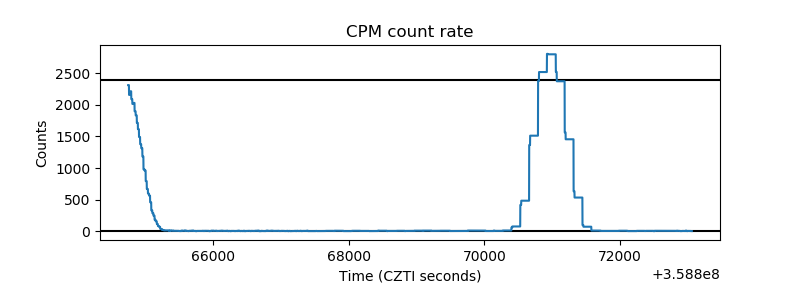

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

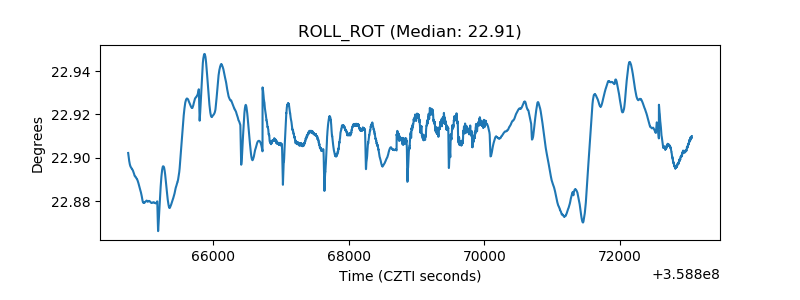

| _ROLL_ROT |  |

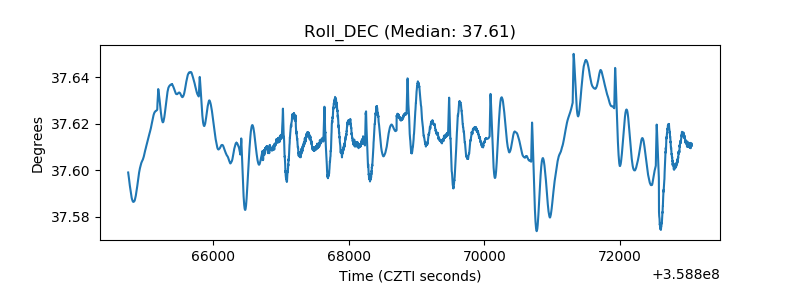

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
