| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T02_9000004378_30458cztM0_level2.evt | modeM0/AS1A10_121T02_9000004378_30458cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,959,360 | 103,478,400 |
| Size | 597.0 MB | 98.7 MB |
| Events in quadrant A | 3,356,546 | 677,634 |
| Events in quadrant B | 5,498,544 | 678,496 |
| Events in quadrant C | 3,694,380 | 661,961 |
| Events in quadrant D | 5,950,137 | 643,975 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14208 | 2 |
| B | 0 | 20655 | 4 |
| C | 0 | 15098 | 2 |
| D | 0 | 22485 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6768 | 47 | 0.694444% |
| B | 6767 | 128 | 1.891532% |
| C | 6767 | 254 | 3.753510% |
| D | 6767 | 336 | 4.965273% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 6769 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7662 | 6768 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7662 | 6768 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7662 | 6768 | 169 | 169 | 2.21% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 23312 | 132.62 | 855 | 840 | 169.4 |
| A | 8 | 192 | 22434 | 127.44 | 855 | 840 | 169.4 |
| A | 13 | 254 | 13216 | 73.04 | 855 | 840 | 169.4 |
| B | 6 | 159 | 1977616 | 12329.8 | 851 | 831 | 160.3 |
| B | 0 | 229 | 132154 | 819.1 | 851 | 831 | 160.3 |
| B | 5 | 255 | 23656 | 142.37 | 851 | 831 | 160.3 |
| C | 14 | 238 | 169327 | 870.65 | 827 | 833 | 193.5 |
| C | 3 | 233 | 148879 | 764.99 | 827 | 833 | 193.5 |
| C | 0 | 10 | 71064 | 362.9 | 827 | 833 | 193.5 |
| D | 13 | 104 | 1597164 | 7501.79 | 822 | 806 | 212.8 |
| D | 12 | 227 | 1053791 | 4948.31 | 822 | 806 | 212.8 |
| D | 8 | 195 | 109428 | 510.45 | 822 | 806 | 212.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

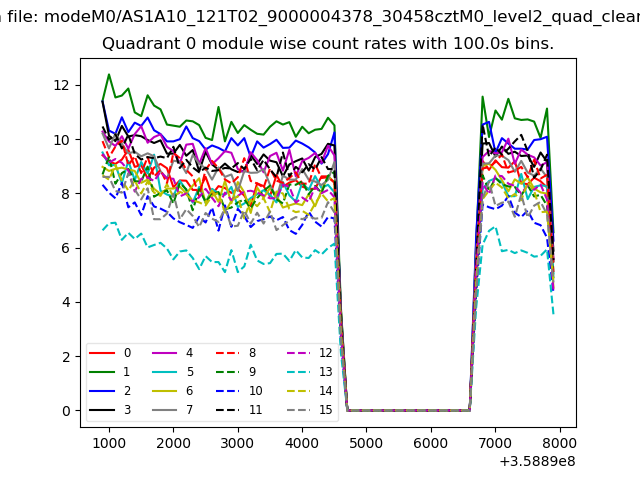

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

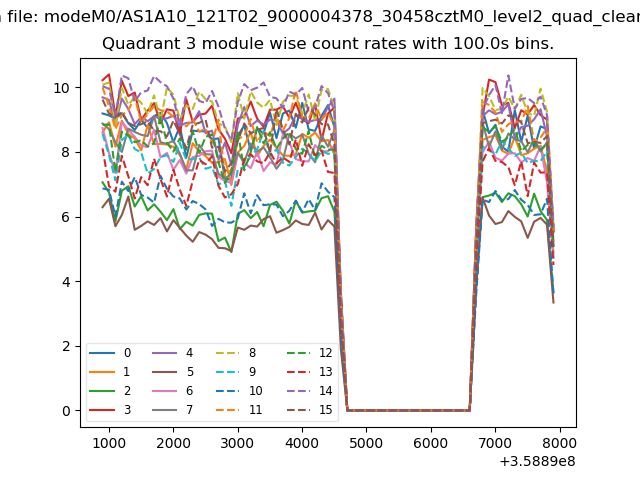

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

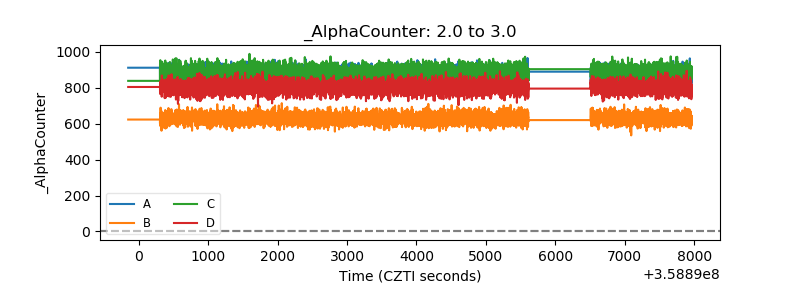

| Alpha Counter |  |

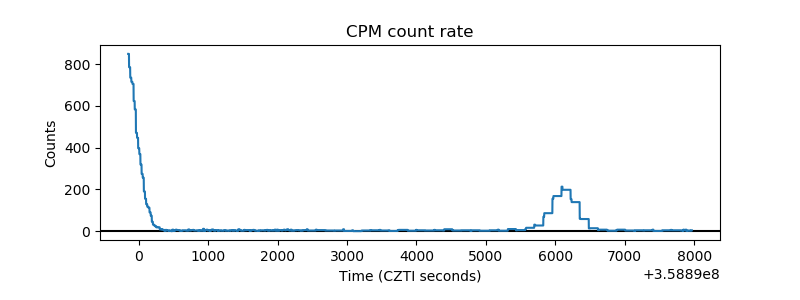

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

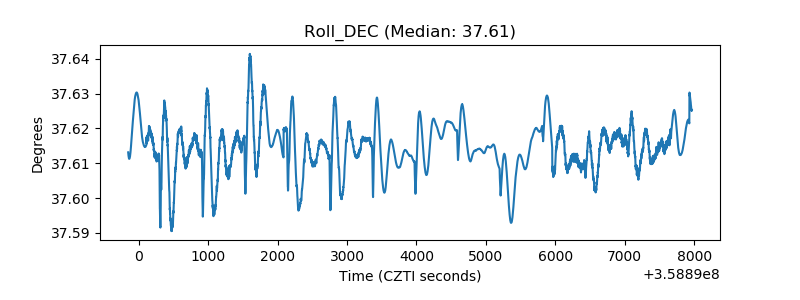

| _Roll_DEC |  |

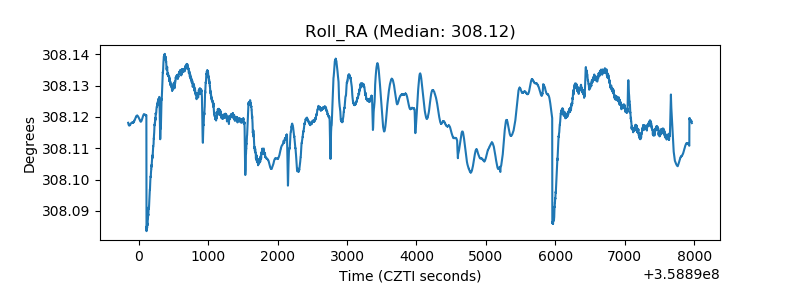

| _Roll_RA |  |
| Veto Counter |  |
