| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T02_9000004378_30459cztM0_level2.evt | modeM0/AS1A10_121T02_9000004378_30459cztM0_level2_quad_clean.evt |
| Size (bytes) | 672,264,000 | 104,981,760 |
| Size | 641.1 MB | 100.1 MB |
| Events in quadrant A | 3,805,500 | 673,071 |
| Events in quadrant B | 6,081,315 | 673,662 |
| Events in quadrant C | 3,998,343 | 659,521 |
| Events in quadrant D | 5,957,923 | 641,773 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16257 | 2 |
| B | 0 | 23476 | 2 |
| C | 0 | 16621 | 2 |
| D | 0 | 23150 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7639 | 81 | 1.060348% |
| B | 7639 | 226 | 2.958502% |
| C | 7639 | 374 | 4.895929% |
| D | 7640 | 632 | 8.272251% |

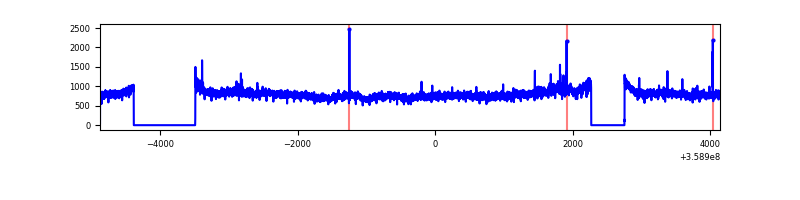

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9019 | 7641 | 5 | 5 | 0.06% | 0.07% |  |
| B | 9019 | 7641 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9019 | 7641 | 3 | 3 | 0.03% | 0.04% |  |
| D | 9020 | 7642 | 252 | 252 | 2.79% | 3.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 51591 | 261.91 | 960 | 939 | 193.4 |
| A | 8 | 192 | 22330 | 110.61 | 960 | 939 | 193.4 |
| A | 0 | 13 | 19804 | 97.55 | 960 | 939 | 193.4 |
| B | 6 | 159 | 2189252 | 11924.66 | 952 | 927 | 183.5 |
| B | 0 | 229 | 88888 | 479.32 | 952 | 927 | 183.5 |
| B | 0 | 230 | 28217 | 148.71 | 952 | 927 | 183.5 |
| C | 14 | 238 | 206124 | 945.82 | 921 | 927 | 217.0 |
| C | 14 | 254 | 79739 | 363.27 | 921 | 927 | 217.0 |
| C | 3 | 233 | 49678 | 224.71 | 921 | 927 | 217.0 |
| D | 13 | 104 | 1835161 | 7696.88 | 910 | 893 | 238.3 |
| D | 8 | 195 | 147839 | 616.61 | 910 | 893 | 238.3 |
| D | 2 | 250 | 134729 | 561.6 | 910 | 893 | 238.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

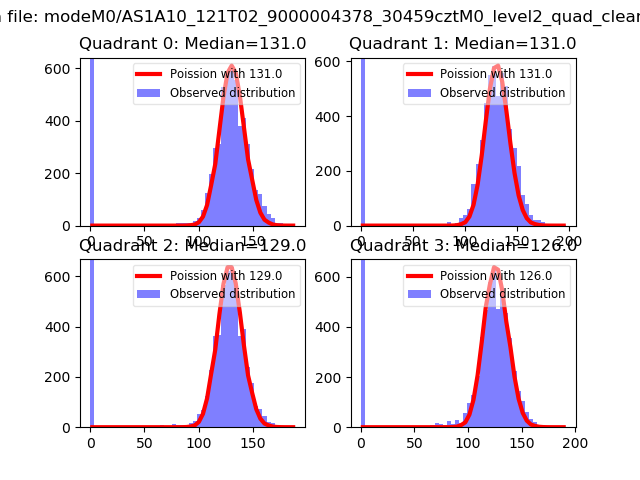

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

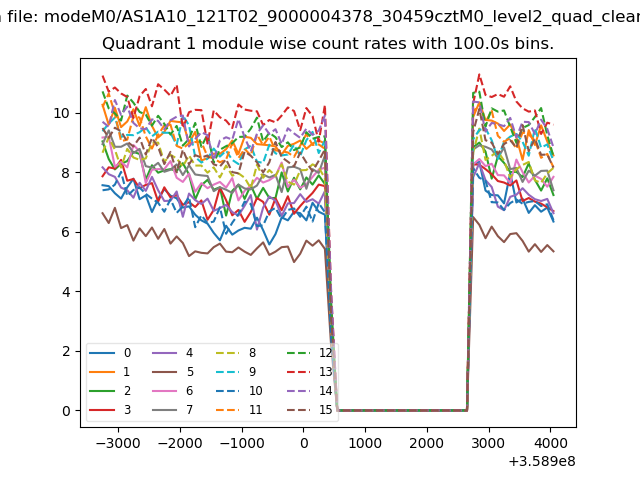

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

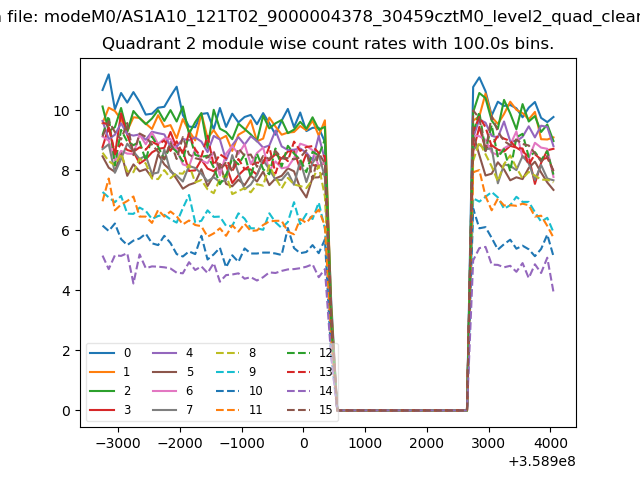

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

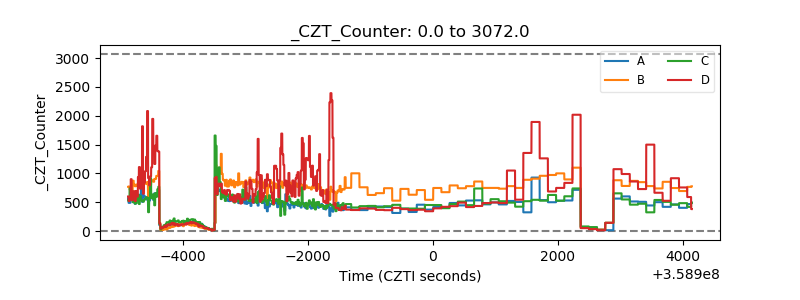

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

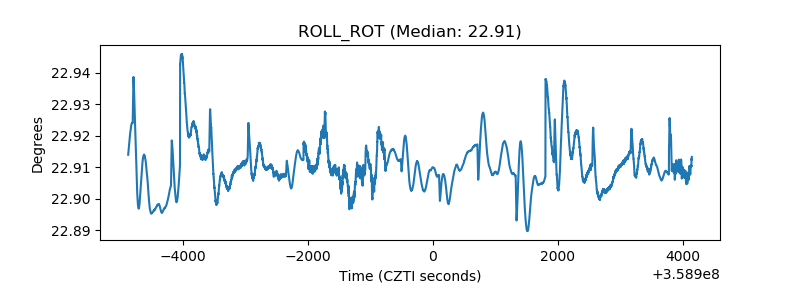

| _ROLL_ROT |  |

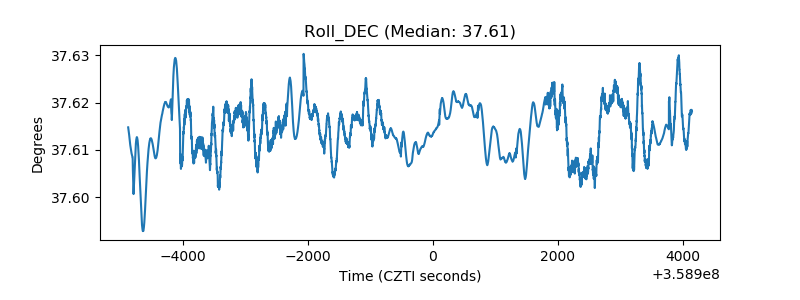

| _Roll_DEC |  |
| _Roll_RA |  |

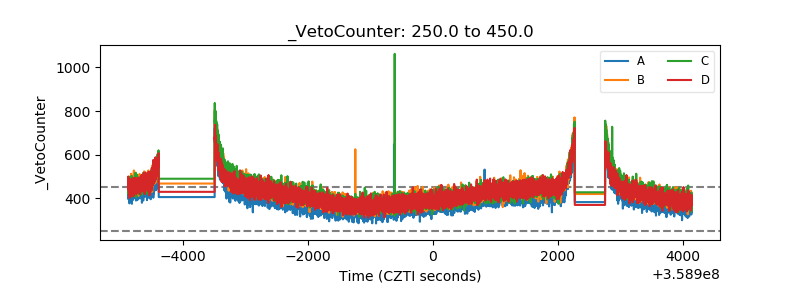

| Veto Counter |  |
