| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T04_9000004382_30480cztM0_level2.evt | modeM0/AS1A10_058T04_9000004382_30480cztM0_level2_quad_clean.evt |
| Size (bytes) | 649,255,680 | 77,181,120 |
| Size | 619.2 MB | 73.6 MB |
| Events in quadrant A | 3,339,087 | 504,995 |
| Events in quadrant B | 5,256,649 | 495,359 |
| Events in quadrant C | 4,384,440 | 474,546 |
| Events in quadrant D | 6,234,891 | 400,102 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14016 | 2 |
| B | 0 | 20268 | 2 |
| C | 0 | 17651 | 2 |
| D | 0 | 23000 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6614 | 78 | 1.179317% |
| B | 6615 | 156 | 2.358277% |
| C | 6615 | 252 | 3.809524% |
| D | 6615 | 1032 | 15.600907% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

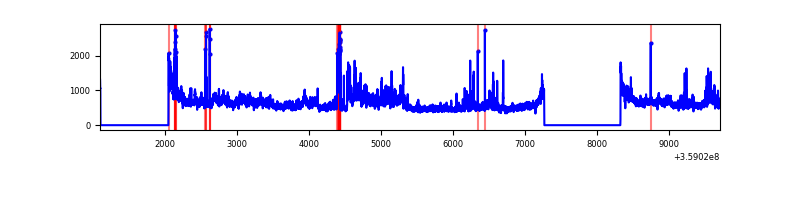

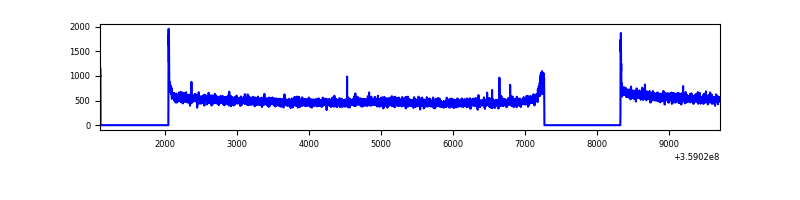

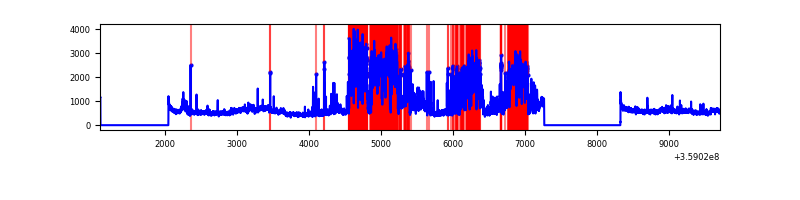

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8619 | 6615 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8620 | 6616 | 13 | 13 | 0.15% | 0.20% |  |
| C | 8620 | 6616 | 32 | 32 | 0.37% | 0.48% |  |
| D | 8620 | 6616 | 868 | 868 | 10.07% | 13.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 21554 | 120.83 | 860 | 846 | 171.4 |
| A | 13 | 254 | 11541 | 62.4 | 860 | 846 | 171.4 |
| A | 3 | 137 | 8360 | 43.84 | 860 | 846 | 171.4 |
| B | 6 | 159 | 1812622 | 11290.96 | 844 | 823 | 160.5 |
| B | 0 | 229 | 47493 | 290.84 | 844 | 823 | 160.5 |
| B | 0 | 230 | 29657 | 179.69 | 844 | 823 | 160.5 |
| C | 3 | 233 | 810897 | 4258.62 | 814 | 819 | 190.2 |
| C | 10 | 22 | 198348 | 1038.42 | 814 | 819 | 190.2 |
| C | 14 | 238 | 132332 | 691.37 | 814 | 819 | 190.2 |
| D | 13 | 104 | 1985523 | 10888.93 | 772 | 752 | 182.3 |
| D | 12 | 218 | 915037 | 5015.99 | 772 | 752 | 182.3 |
| D | 8 | 195 | 165411 | 903.36 | 772 | 752 | 182.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

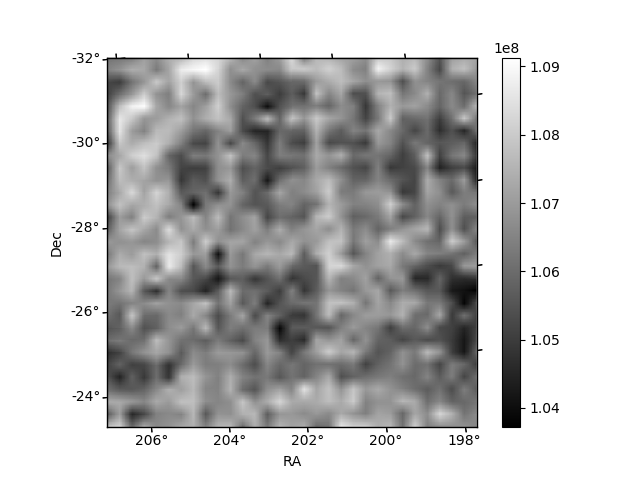

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

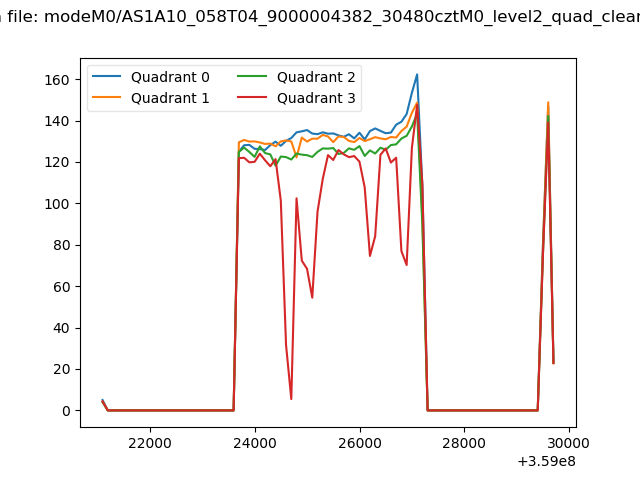

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

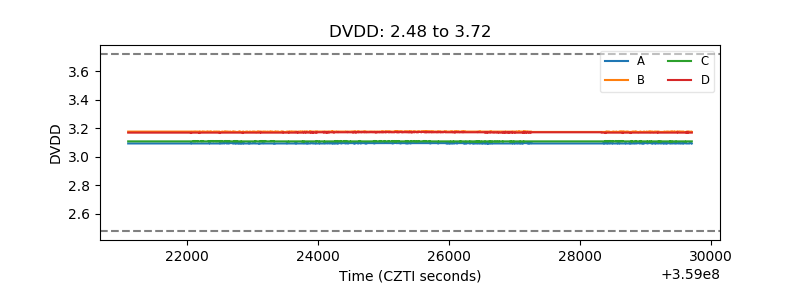

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

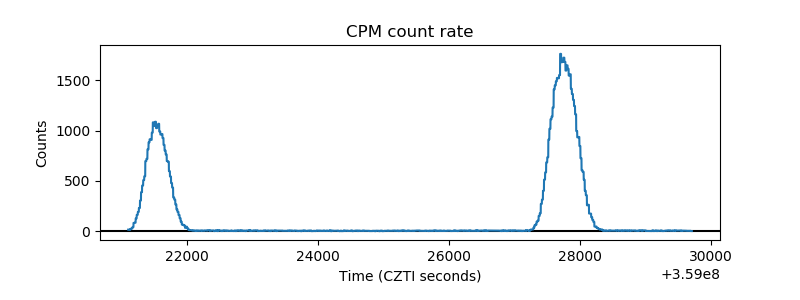

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
