| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T04_9000004382_30482cztM0_level2.evt | modeM0/AS1A10_058T04_9000004382_30482cztM0_level2_quad_clean.evt |
| Size (bytes) | 689,555,520 | 95,624,640 |
| Size | 657.6 MB | 91.2 MB |
| Events in quadrant A | 3,617,273 | 654,489 |
| Events in quadrant B | 5,561,255 | 642,895 |
| Events in quadrant C | 4,168,586 | 617,416 |
| Events in quadrant D | 7,083,966 | 514,090 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15054 | 3 |
| B | 0 | 21142 | 2 |
| C | 0 | 17027 | 2 |
| D | 0 | 25642 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6689 | 119 | 1.779040% |
| B | 6690 | 226 | 3.378176% |
| C | 6690 | 261 | 3.901345% |
| D | 6690 | 1394 | 20.837070% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

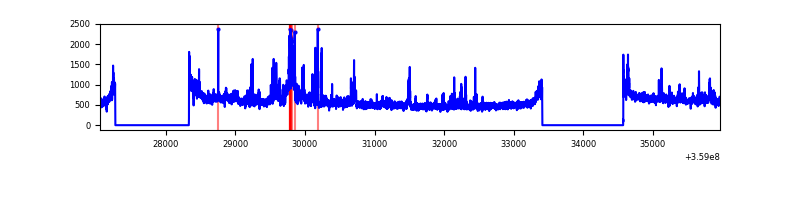

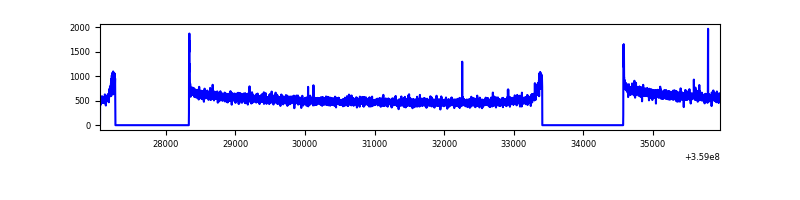

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8914 | 6691 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8915 | 6692 | 21 | 21 | 0.24% | 0.31% |  |
| C | 8915 | 6692 | 11 | 11 | 0.12% | 0.16% |  |
| D | 8915 | 6692 | 1264 | 1264 | 14.18% | 18.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 21042 | 108.95 | 929 | 916 | 184.7 |
| A | 13 | 254 | 12296 | 61.6 | 929 | 916 | 184.7 |
| A | 12 | 96 | 9042 | 43.99 | 929 | 916 | 184.7 |
| B | 6 | 159 | 1830522 | 10776.38 | 904 | 884 | 169.8 |
| B | 0 | 229 | 76830 | 447.31 | 904 | 884 | 169.8 |
| B | 0 | 156 | 37120 | 213.43 | 904 | 884 | 169.8 |
| C | 3 | 233 | 367889 | 1811.3 | 874 | 881 | 202.6 |
| C | 10 | 22 | 203279 | 998.9 | 874 | 881 | 202.6 |
| C | 14 | 238 | 147256 | 722.41 | 874 | 881 | 202.6 |
| D | 13 | 104 | 2875580 | 14890.41 | 820 | 801 | 193.1 |
| D | 12 | 218 | 807614 | 4179.03 | 820 | 801 | 193.1 |
| D | 8 | 195 | 148357 | 764.29 | 820 | 801 | 193.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

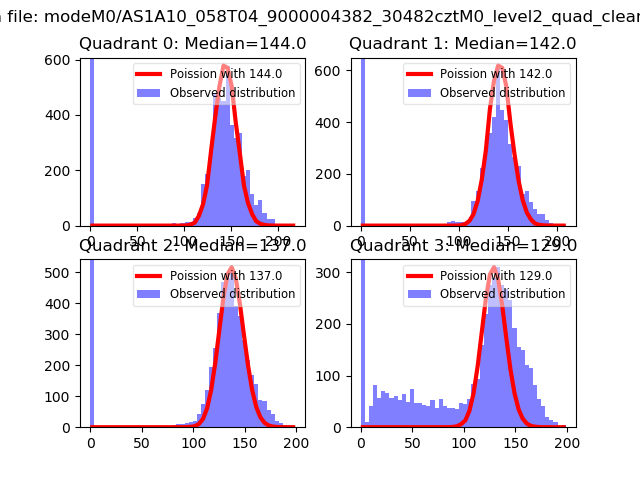

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

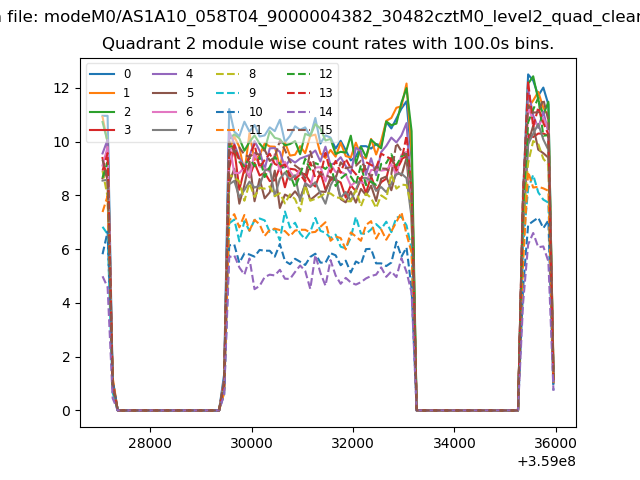

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

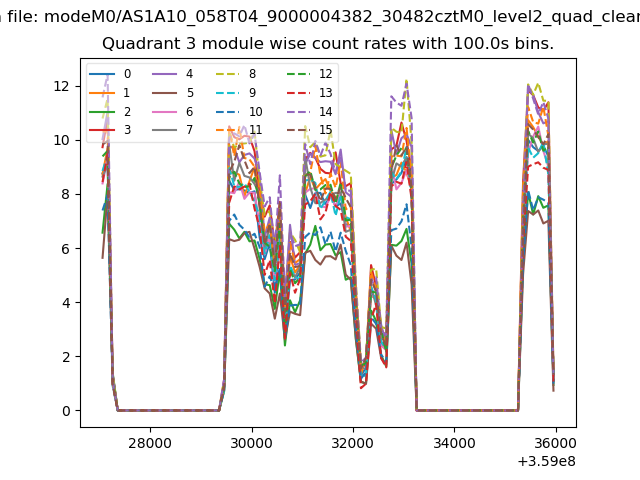

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

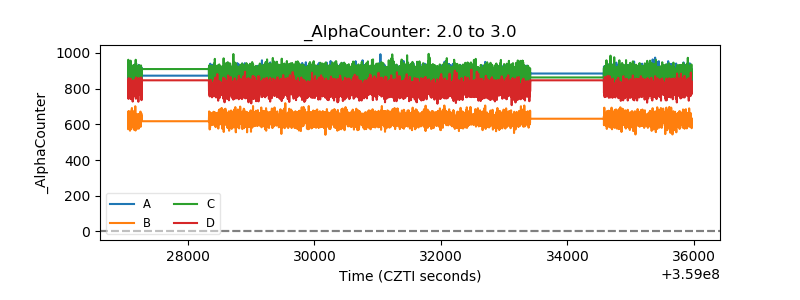

| Alpha Counter |  |
| _CPM_Rate |  |

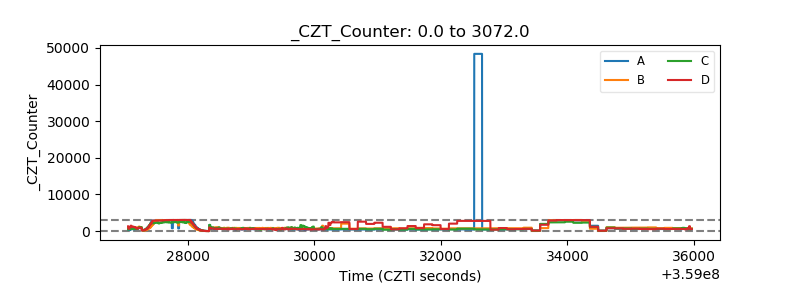

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

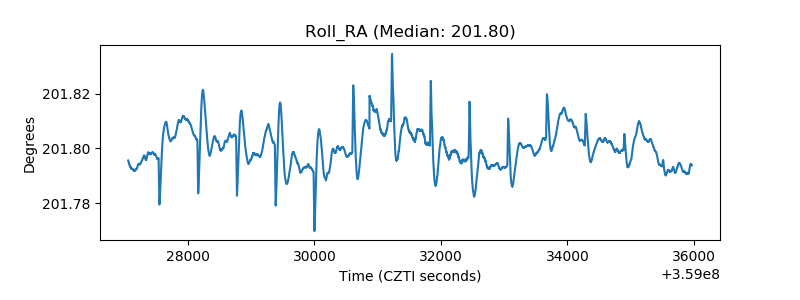

| _Roll_RA |  |
| Veto Counter |  |
