| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T04_9000004382_30483cztM0_level2.evt | modeM0/AS1A10_058T04_9000004382_30483cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,523,840 | 105,526,080 |
| Size | 503.1 MB | 100.6 MB |
| Events in quadrant A | 3,335,551 | 722,146 |
| Events in quadrant B | 4,830,153 | 718,308 |
| Events in quadrant C | 3,473,125 | 683,098 |
| Events in quadrant D | 3,945,392 | 667,843 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13675 | 1 |
| B | 0 | 18206 | 1 |
| C | 0 | 14049 | 1 |
| D | 0 | 15570 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5781 | 105 | 1.816295% |
| B | 5782 | 155 | 2.680733% |
| C | 5782 | 165 | 2.853684% |
| D | 5781 | 200 | 3.459609% |

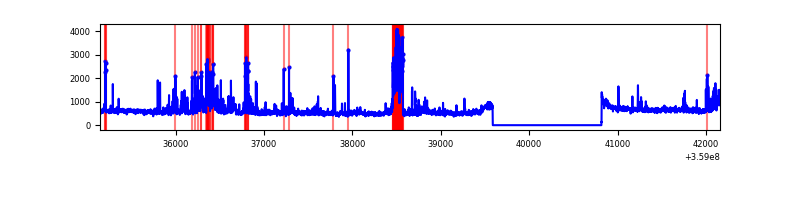

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7012 | 5782 | 20 | 20 | 0.29% | 0.35% |  |
| B | 7013 | 5783 | 13 | 13 | 0.19% | 0.22% |  |
| C | 7013 | 5783 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7012 | 5782 | 123 | 123 | 1.75% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 165287 | 1022.19 | 812 | 800 | 160.9 |
| A | 4 | 2 | 21441 | 128.27 | 812 | 800 | 160.9 |
| A | 8 | 192 | 10846 | 62.43 | 812 | 800 | 160.9 |
| B | 6 | 159 | 1575140 | 10620.57 | 790 | 774 | 148.2 |
| B | 5 | 255 | 49010 | 325.4 | 790 | 774 | 148.2 |
| B | 0 | 229 | 47749 | 316.89 | 790 | 774 | 148.2 |
| C | 3 | 233 | 351136 | 2021.09 | 758 | 765 | 173.4 |
| C | 14 | 238 | 125344 | 718.62 | 758 | 765 | 173.4 |
| C | 10 | 22 | 23928 | 133.61 | 758 | 765 | 173.4 |
| D | 7 | 238 | 304534 | 1692.09 | 773 | 757 | 179.5 |
| D | 8 | 195 | 223957 | 1243.27 | 773 | 757 | 179.5 |
| D | 12 | 218 | 163047 | 903.99 | 773 | 757 | 179.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

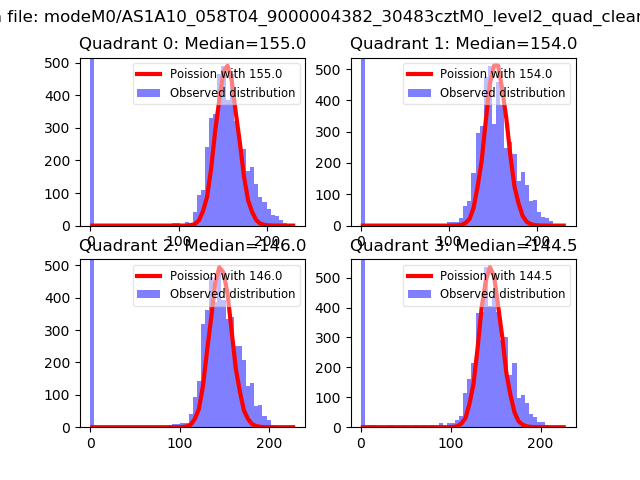

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

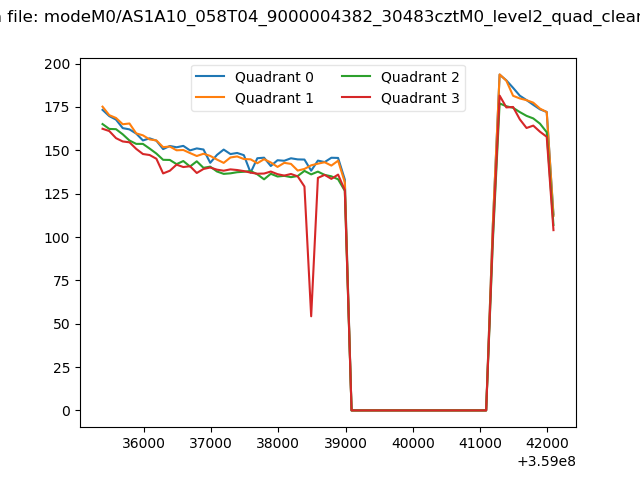

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

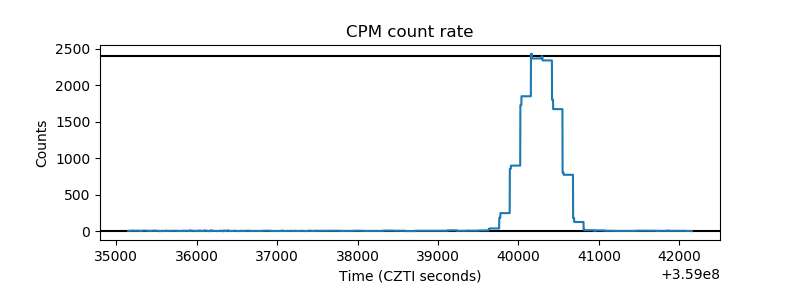

| _CPM_Rate |  |

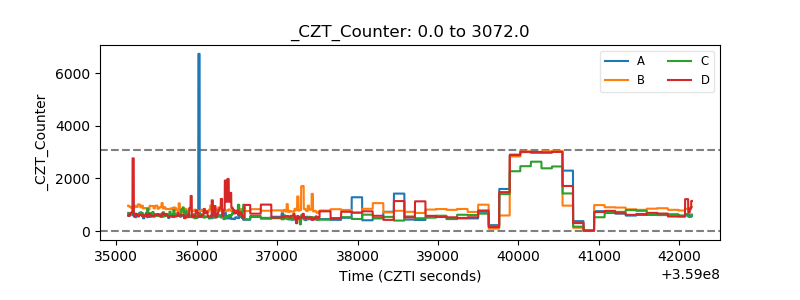

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

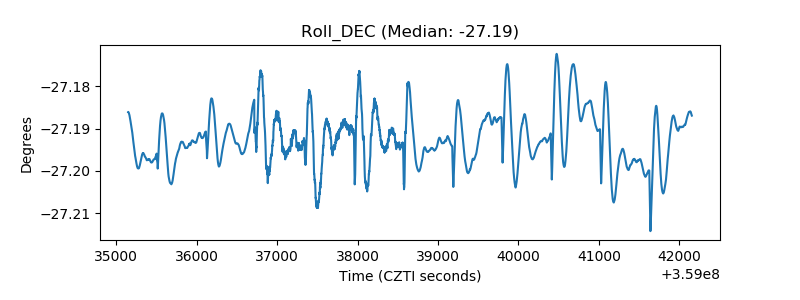

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
