| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T04_9000004382_30484cztM0_level2.evt | modeM0/AS1A10_058T04_9000004382_30484cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,813,440 | 118,543,680 |
| Size | 539.6 MB | 113.1 MB |
| Events in quadrant A | 3,544,682 | 823,272 |
| Events in quadrant B | 5,243,357 | 813,153 |
| Events in quadrant C | 3,673,622 | 764,598 |
| Events in quadrant D | 4,252,706 | 754,591 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14692 | 2 |
| B | 0 | 19645 | 2 |
| C | 0 | 14967 | 2 |
| D | 0 | 16818 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6222 | 115 | 1.848280% |
| B | 6222 | 186 | 2.989392% |
| C | 6222 | 182 | 2.925104% |
| D | 6222 | 213 | 3.423337% |

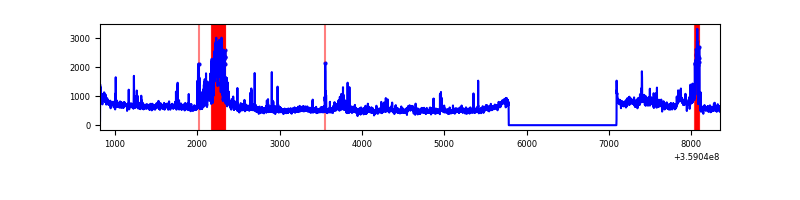

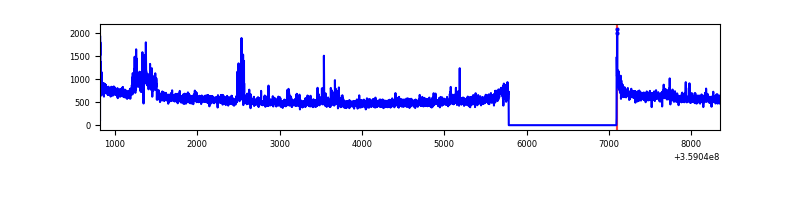

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7532 | 6223 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7532 | 6223 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7532 | 6223 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7532 | 6223 | 133 | 133 | 1.77% | 2.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 43488 | 239.33 | 900 | 886 | 178.0 |
| A | 8 | 192 | 20952 | 112.73 | 900 | 886 | 178.0 |
| A | 4 | 2 | 12378 | 64.56 | 900 | 886 | 178.0 |
| B | 6 | 159 | 1684248 | 10340.98 | 869 | 851 | 162.8 |
| B | 0 | 229 | 82756 | 503.14 | 869 | 851 | 162.8 |
| B | 4 | 171 | 29374 | 175.21 | 869 | 851 | 162.8 |
| C | 3 | 233 | 262941 | 1383.76 | 831 | 838 | 189.4 |
| C | 14 | 238 | 137756 | 722.85 | 831 | 838 | 189.4 |
| C | 2 | 114 | 14462 | 71.93 | 831 | 838 | 189.4 |
| D | 12 | 218 | 548013 | 2761.15 | 856 | 836 | 198.2 |
| D | 8 | 195 | 280519 | 1411.33 | 856 | 836 | 198.2 |
| D | 2 | 250 | 48706 | 241.56 | 856 | 836 | 198.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

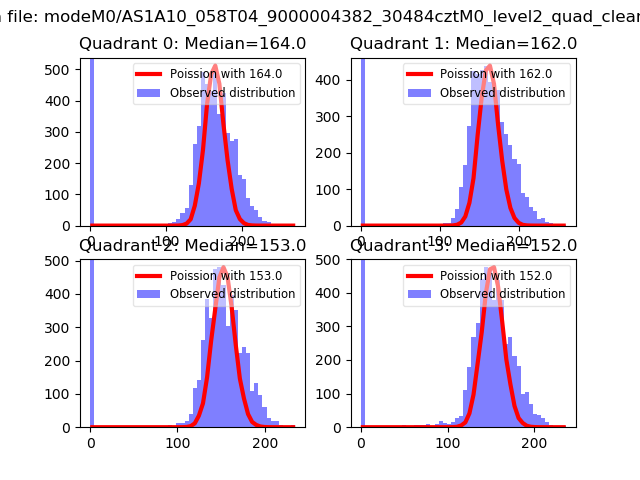

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

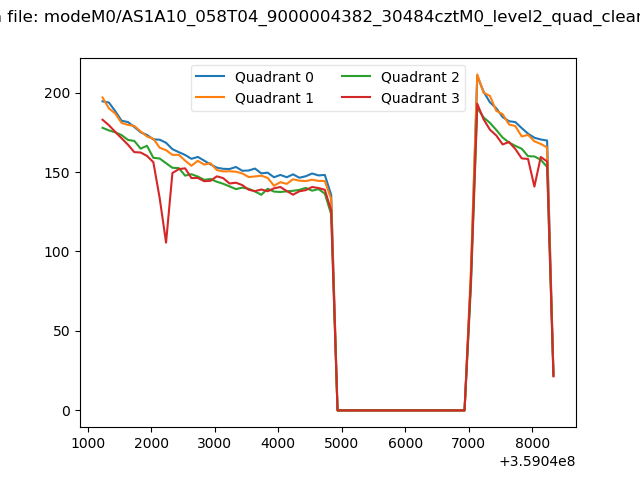

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

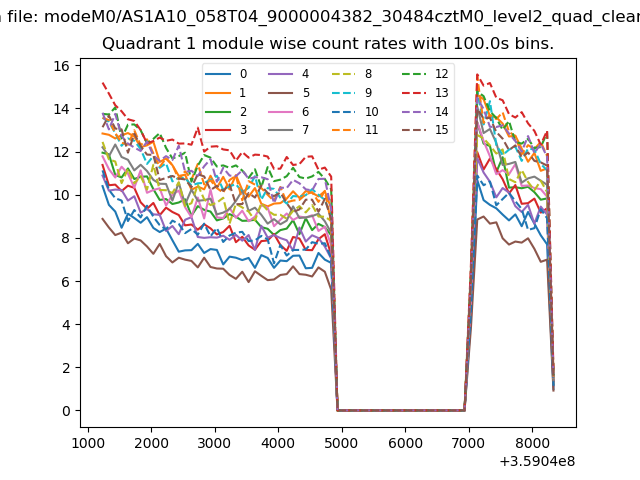

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

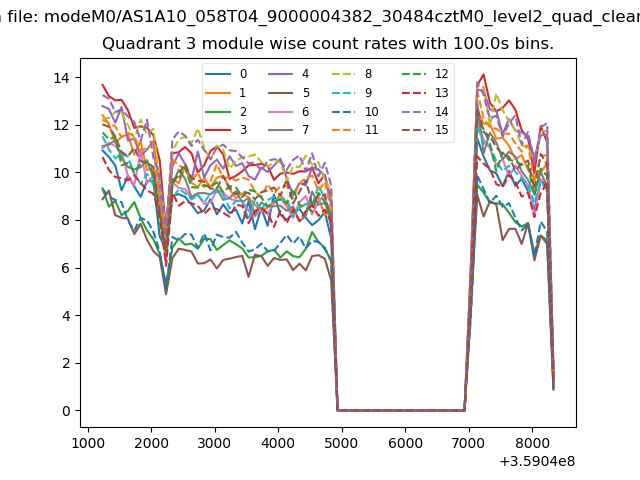

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

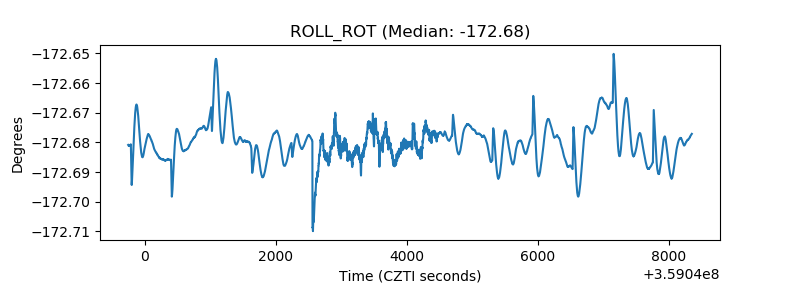

| _ROLL_ROT |  |

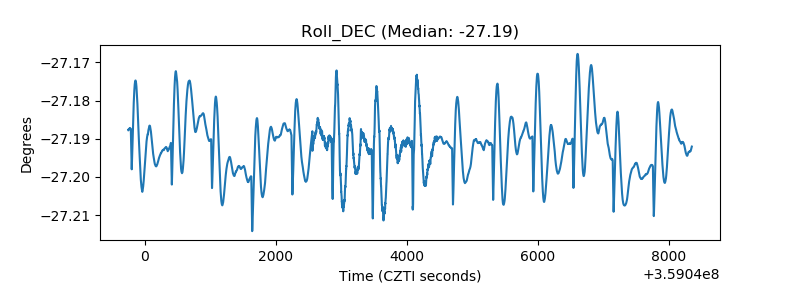

| _Roll_DEC |  |
