| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T22_9000004384_30496cztM0_level2.evt | modeM0/AS1A10_053T22_9000004384_30496cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,303,360 | 85,011,840 |
| Size | 543.9 MB | 81.1 MB |
| Events in quadrant A | 3,312,535 | 563,018 |
| Events in quadrant B | 4,616,672 | 560,892 |
| Events in quadrant C | 3,237,468 | 532,636 |
| Events in quadrant D | 5,700,386 | 499,876 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13529 | 1 |
| B | 0 | 18192 | 1 |
| C | 0 | 13237 | 1 |
| D | 0 | 21102 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5980 | 107 | 1.789298% |
| B | 5980 | 58 | 0.969900% |
| C | 5980 | 98 | 1.638796% |
| D | 5980 | 826 | 13.812709% |

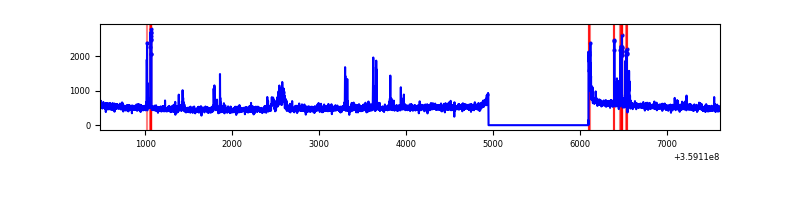

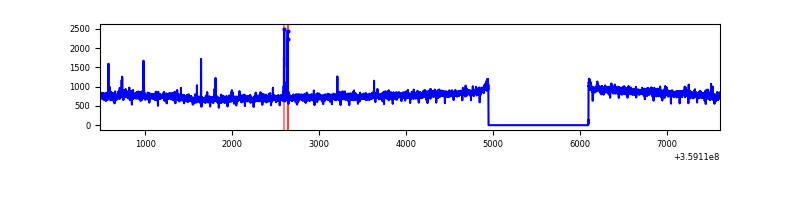

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7130 | 5981 | 73 | 73 | 1.02% | 1.22% |  |
| B | 7130 | 5981 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7130 | 5981 | 31 | 31 | 0.43% | 0.52% |  |
| D | 7130 | 5981 | 686 | 686 | 9.62% | 11.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 314519 | 2050.77 | 765 | 753 | 153.0 |
| A | 12 | 96 | 36333 | 232.55 | 765 | 753 | 153.0 |
| A | 8 | 192 | 11948 | 73.17 | 765 | 753 | 153.0 |
| B | 6 | 159 | 1603826 | 11189.45 | 749 | 732 | 143.3 |
| B | 0 | 229 | 46196 | 317.33 | 749 | 732 | 143.3 |
| B | 0 | 230 | 19643 | 132.0 | 749 | 732 | 143.3 |
| C | 10 | 22 | 215148 | 1272.89 | 721 | 728 | 168.5 |
| C | 14 | 238 | 119970 | 707.87 | 721 | 728 | 168.5 |
| C | 3 | 233 | 49908 | 291.95 | 721 | 728 | 168.5 |
| D | 12 | 218 | 1007626 | 6238.75 | 687 | 671 | 161.4 |
| D | 13 | 104 | 743201 | 4600.46 | 687 | 671 | 161.4 |
| D | 1 | 52 | 490045 | 3031.99 | 687 | 671 | 161.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

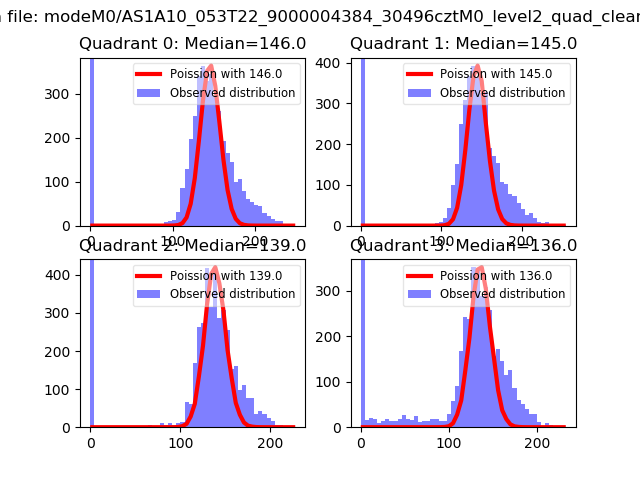

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

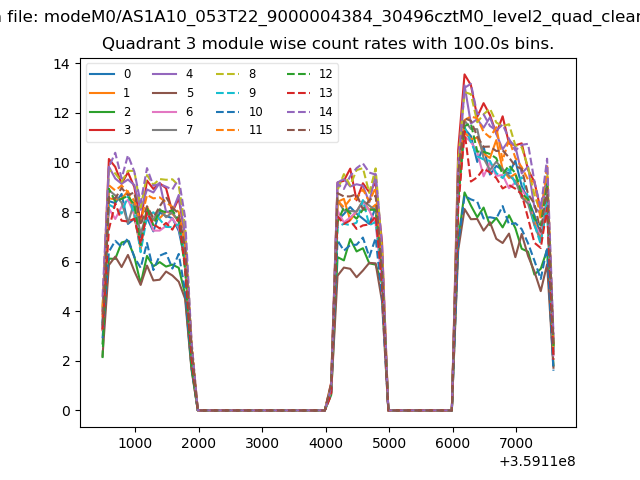

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

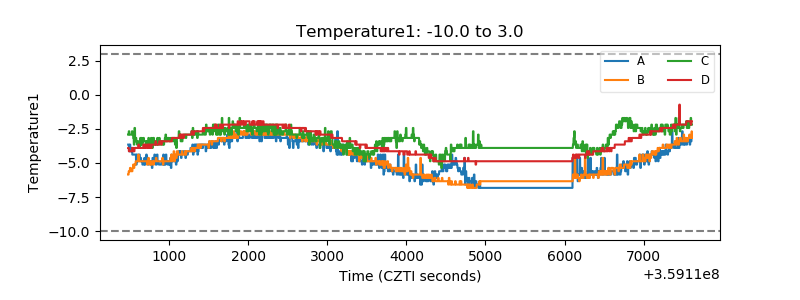

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

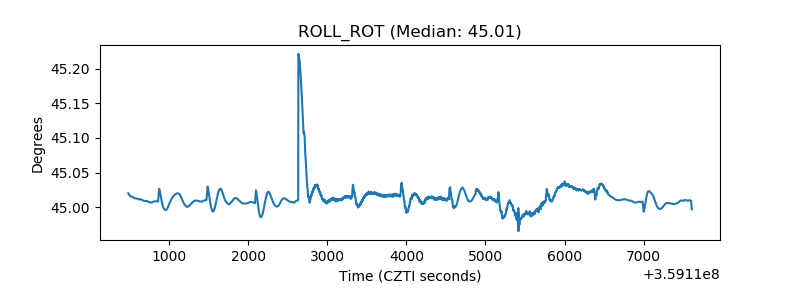

| _ROLL_ROT |  |
| _Roll_DEC |  |

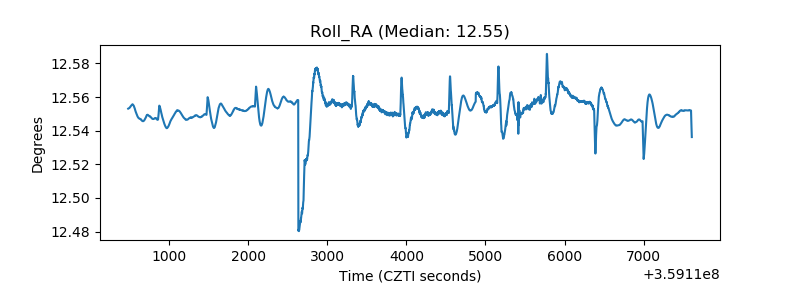

| _Roll_RA |  |
| Veto Counter |  |
