| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T47_9000004386_30500cztM0_level2.evt | modeM0/AS1A10_053T47_9000004386_30500cztM0_level2_quad_clean.evt |
| Size (bytes) | 232,179,840 | 31,824,000 |
| Size | 221.4 MB | 30.3 MB |
| Events in quadrant A | 1,450,524 | 199,999 |
| Events in quadrant B | 2,189,652 | 197,730 |
| Events in quadrant C | 1,534,728 | 189,203 |
| Events in quadrant D | 1,678,724 | 189,999 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5794 | 1 |
| B | 0 | 8106 | 1 |
| C | 0 | 5986 | 1 |
| D | 0 | 6627 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2597 | 84 | 3.234501% |
| B | 2597 | 119 | 4.582210% |
| C | 2597 | 144 | 5.544859% |
| D | 2597 | 68 | 2.618406% |

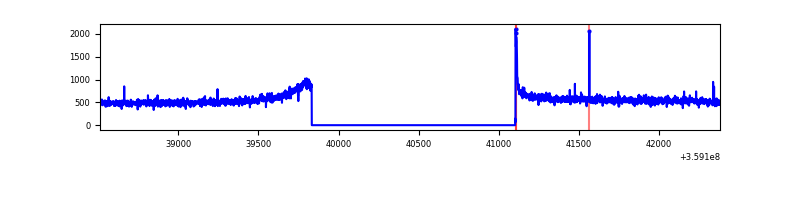

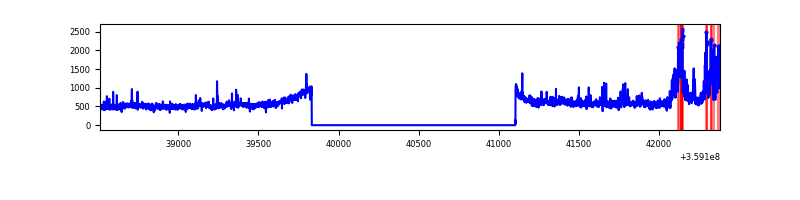

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3867 | 2598 | 3 | 3 | 0.08% | 0.12% |  |
| B | 3867 | 2598 | 1 | 1 | 0.03% | 0.04% |  |
| C | 3867 | 2598 | 32 | 32 | 0.83% | 1.23% |  |
| D | 3867 | 2598 | 22 | 22 | 0.57% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 13835 | 180.56 | 370 | 363 | 74.6 |
| A | 12 | 96 | 5404 | 67.56 | 370 | 363 | 74.6 |
| A | 13 | 254 | 4953 | 61.52 | 370 | 363 | 74.6 |
| B | 6 | 159 | 737388 | 10580.46 | 360 | 352 | 69.7 |
| B | 0 | 229 | 29521 | 418.73 | 360 | 352 | 69.7 |
| B | 12 | 111 | 8323 | 114.43 | 360 | 352 | 69.7 |
| C | 0 | 10 | 110612 | 1360.36 | 345 | 347 | 81.1 |
| C | 14 | 238 | 55409 | 679.31 | 345 | 347 | 81.1 |
| C | 10 | 22 | 12379 | 148.44 | 345 | 347 | 81.1 |
| D | 12 | 227 | 165050 | 1965.98 | 357 | 348 | 83.8 |
| D | 8 | 195 | 113621 | 1352.09 | 357 | 348 | 83.8 |
| D | 10 | 253 | 12982 | 150.81 | 357 | 348 | 83.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

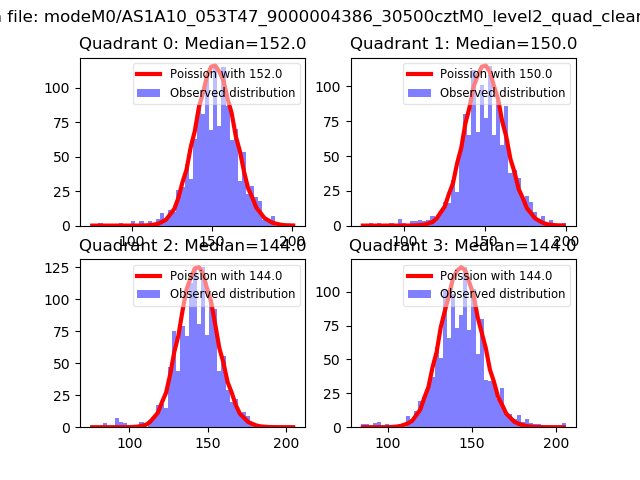

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

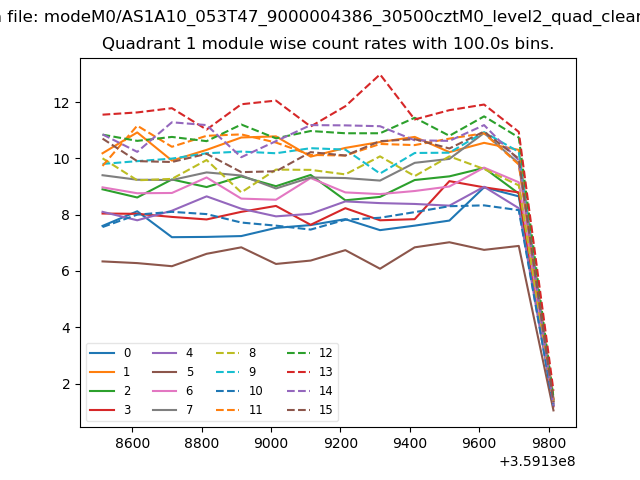

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

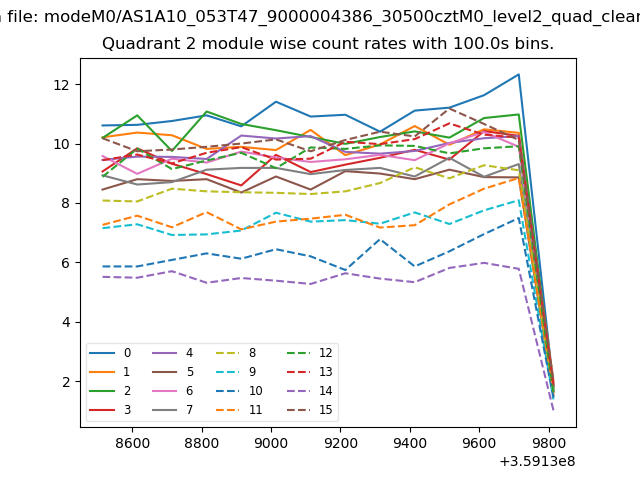

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

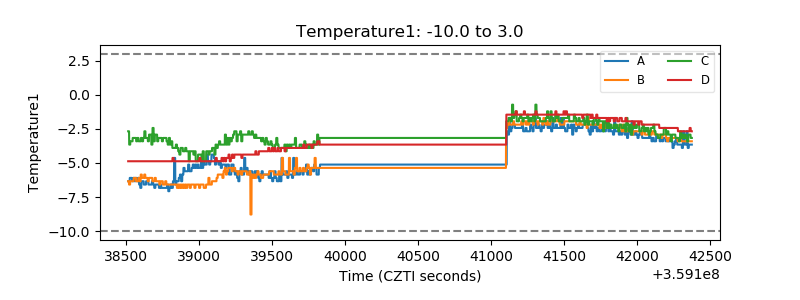

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

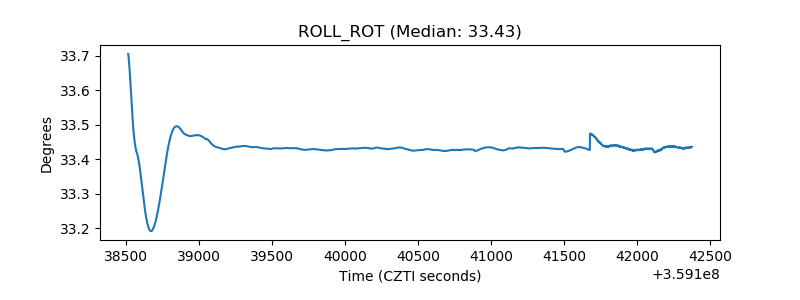

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

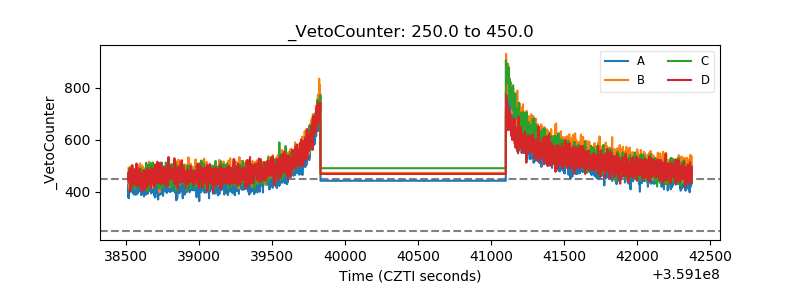

| Veto Counter |  |
