| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004388_30510cztM0_level2.evt | modeM0/AS1C05_019T04_9000004388_30510cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,556,800 | 85,317,120 |
| Size | 509.8 MB | 81.4 MB |
| Events in quadrant A | 3,141,146 | 556,055 |
| Events in quadrant B | 5,023,557 | 548,776 |
| Events in quadrant C | 3,390,329 | 522,711 |
| Events in quadrant D | 4,198,758 | 507,678 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13424 | 1 |
| B | 0 | 19536 | 1 |
| C | 0 | 14060 | 1 |
| D | 0 | 16399 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6425 | 50 | 0.778210% |
| B | 6426 | 91 | 1.416122% |
| C | 6426 | 134 | 2.085279% |
| D | 6426 | 220 | 3.423592% |

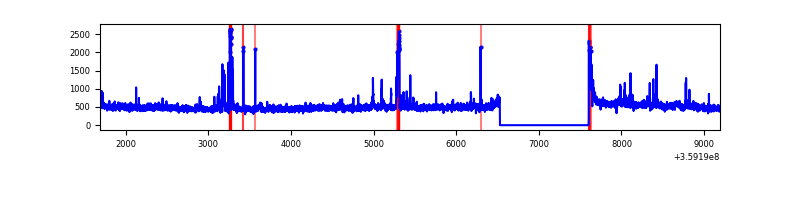

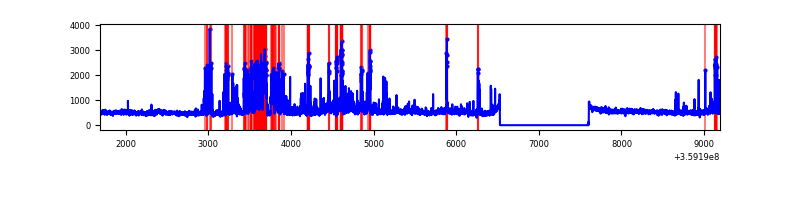

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7500 | 6426 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7501 | 6427 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7501 | 6427 | 36 | 36 | 0.48% | 0.56% |  |
| D | 7501 | 6427 | 202 | 202 | 2.69% | 3.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 22232 | 134.48 | 804 | 788 | 159.5 |
| A | 8 | 192 | 12833 | 75.53 | 804 | 788 | 159.5 |
| A | 13 | 254 | 11785 | 68.96 | 804 | 788 | 159.5 |
| B | 6 | 159 | 1775082 | 11957.62 | 785 | 766 | 148.4 |
| B | 0 | 229 | 71618 | 477.49 | 785 | 766 | 148.4 |
| B | 4 | 171 | 32749 | 215.54 | 785 | 766 | 148.4 |
| C | 10 | 22 | 227360 | 1296.9 | 751 | 753 | 174.7 |
| C | 14 | 238 | 127696 | 726.51 | 751 | 753 | 174.7 |
| C | 3 | 233 | 47991 | 270.35 | 751 | 753 | 174.7 |
| D | 8 | 195 | 338192 | 1901.37 | 759 | 740 | 177.5 |
| D | 2 | 250 | 335728 | 1887.49 | 759 | 740 | 177.5 |
| D | 12 | 233 | 308320 | 1733.06 | 759 | 740 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

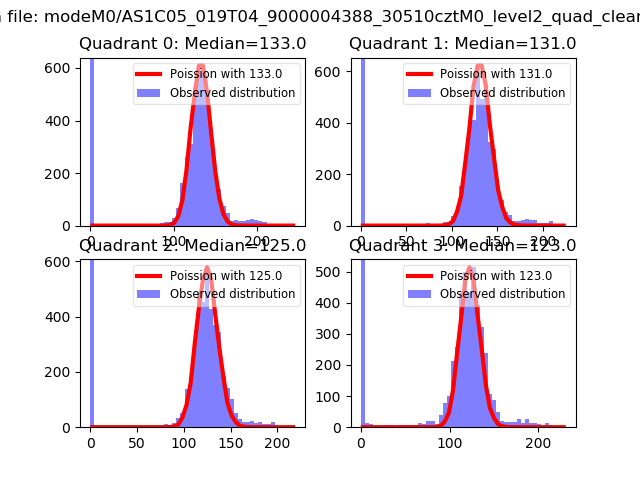

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

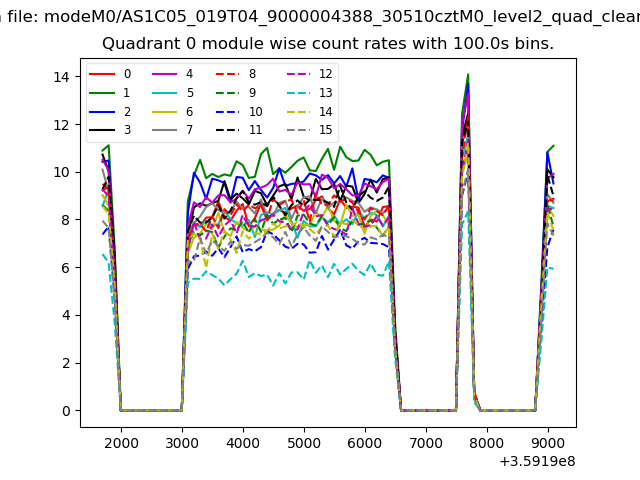

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

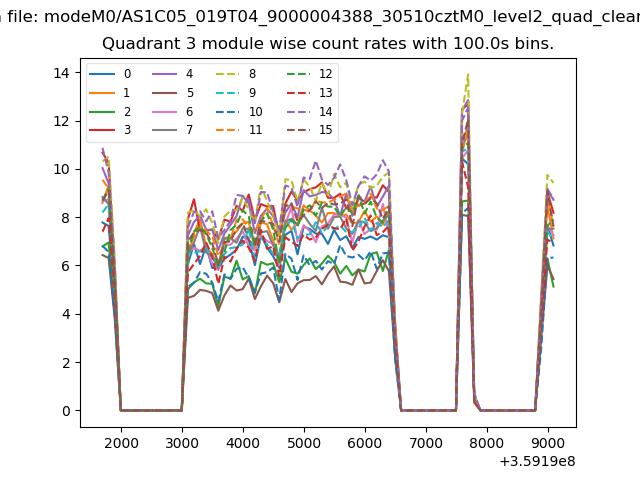

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

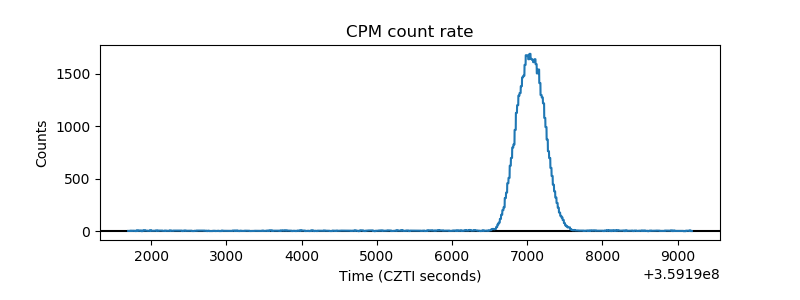

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

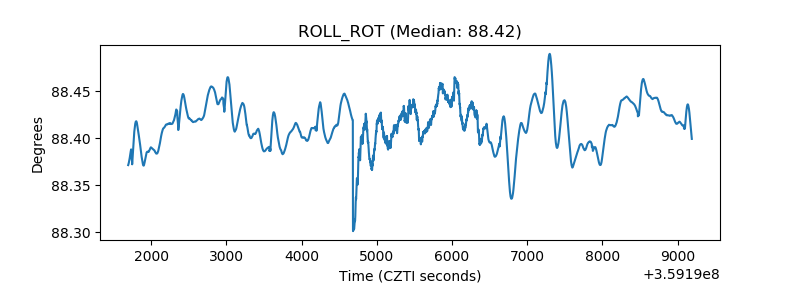

| _ROLL_ROT |  |

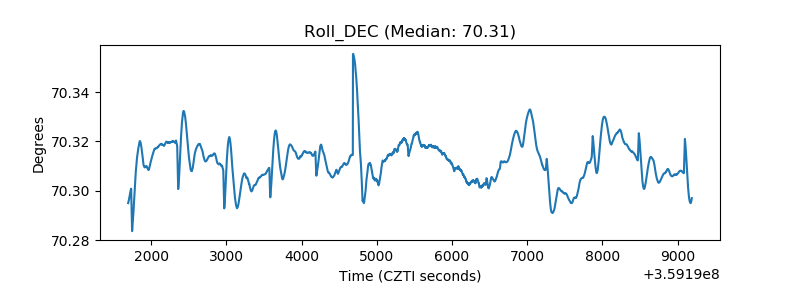

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
