| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004388_30515cztM0_level2.evt | modeM0/AS1C05_019T04_9000004388_30515cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,692,480 | 123,428,160 |
| Size | 530.9 MB | 117.7 MB |
| Events in quadrant A | 3,292,478 | 839,524 |
| Events in quadrant B | 5,501,765 | 834,966 |
| Events in quadrant C | 3,443,042 | 820,885 |
| Events in quadrant D | 4,182,898 | 790,655 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13923 | 2 |
| B | 0 | 20811 | 2 |
| C | 0 | 14221 | 2 |
| D | 0 | 16675 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6484 | 83 | 1.280074% |
| B | 6484 | 175 | 2.698951% |
| C | 6484 | 215 | 3.315854% |
| D | 6484 | 260 | 4.009870% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6485 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7609 | 6485 | 14 | 14 | 0.18% | 0.22% |  |
| C | 7609 | 6485 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7609 | 6485 | 189 | 189 | 2.48% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 48910 | 297.38 | 821 | 806 | 161.8 |
| A | 4 | 2 | 43638 | 264.79 | 821 | 806 | 161.8 |
| A | 8 | 192 | 22938 | 136.82 | 821 | 806 | 161.8 |
| B | 6 | 159 | 1969902 | 13049.76 | 814 | 793 | 150.9 |
| B | 0 | 155 | 140489 | 925.8 | 814 | 793 | 150.9 |
| B | 15 | 36 | 57080 | 373.02 | 814 | 793 | 150.9 |
| C | 14 | 238 | 145864 | 790.75 | 798 | 806 | 183.4 |
| C | 0 | 10 | 58100 | 312.32 | 798 | 806 | 183.4 |
| C | 3 | 233 | 41047 | 219.36 | 798 | 806 | 183.4 |
| D | 13 | 249 | 412174 | 2188.48 | 795 | 773 | 188.0 |
| D | 8 | 195 | 312357 | 1657.5 | 795 | 773 | 188.0 |
| D | 12 | 218 | 242544 | 1286.12 | 795 | 773 | 188.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

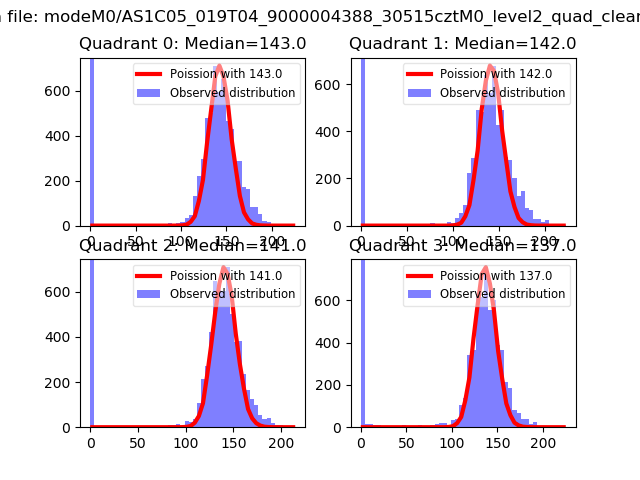

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

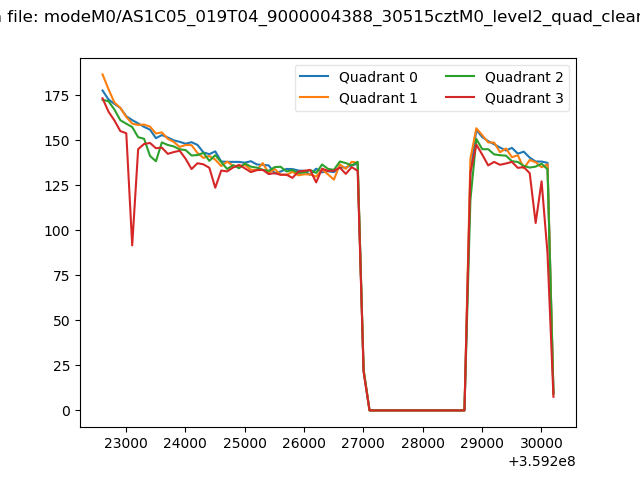

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
