| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004388_30517cztM0_level2.evt | modeM0/AS1C05_019T04_9000004388_30517cztM0_level2_quad_clean.evt |
| Size (bytes) | 630,959,040 | 121,835,520 |
| Size | 601.7 MB | 116.2 MB |
| Events in quadrant A | 3,463,374 | 820,282 |
| Events in quadrant B | 6,026,470 | 809,976 |
| Events in quadrant C | 3,607,478 | 799,729 |
| Events in quadrant D | 5,510,600 | 745,008 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15366 | 2 |
| B | 0 | 23295 | 2 |
| C | 0 | 15538 | 2 |
| D | 0 | 21330 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7395 | 47 | 0.635565% |
| B | 7395 | 194 | 2.623394% |
| C | 7395 | 166 | 2.244760% |
| D | 7394 | 626 | 8.466324% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7800 | 7396 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7800 | 7396 | 22 | 22 | 0.28% | 0.30% |  |
| C | 7800 | 7396 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7799 | 7395 | 431 | 431 | 5.53% | 5.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 24754 | 133.5 | 888 | 868 | 178.9 |
| A | 13 | 254 | 14581 | 76.65 | 888 | 868 | 178.9 |
| A | 12 | 96 | 10908 | 56.12 | 888 | 868 | 178.9 |
| B | 6 | 159 | 2266762 | 13619.82 | 878 | 856 | 166.4 |
| B | 0 | 229 | 101030 | 602.12 | 878 | 856 | 166.4 |
| B | 0 | 190 | 89476 | 532.67 | 878 | 856 | 166.4 |
| C | 14 | 238 | 140078 | 692.83 | 862 | 865 | 200.9 |
| C | 0 | 10 | 42550 | 207.46 | 862 | 865 | 200.9 |
| C | 3 | 233 | 32390 | 156.89 | 862 | 865 | 200.9 |
| D | 12 | 218 | 1175819 | 5431.71 | 824 | 808 | 216.3 |
| D | 8 | 195 | 529087 | 2442.07 | 824 | 808 | 216.3 |
| D | 1 | 52 | 185074 | 851.8 | 824 | 808 | 216.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

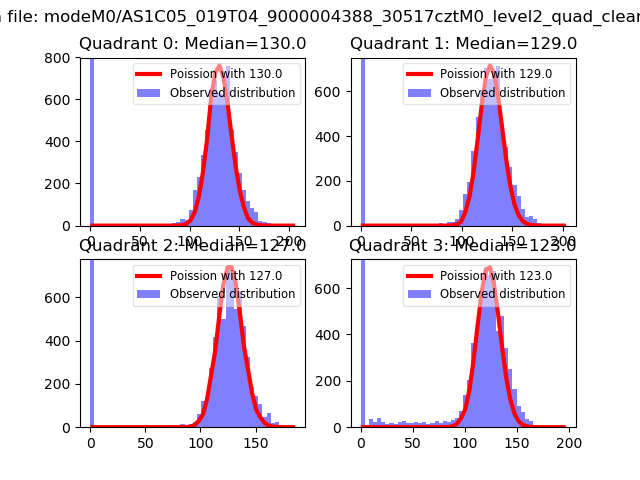

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

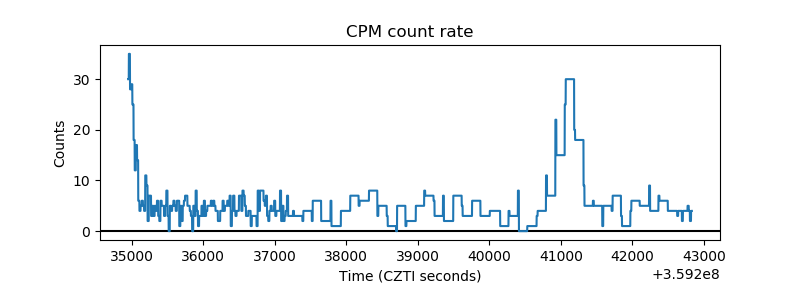

| _CPM_Rate |  |

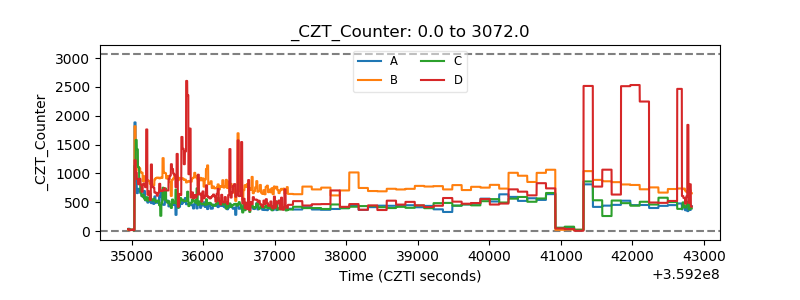

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

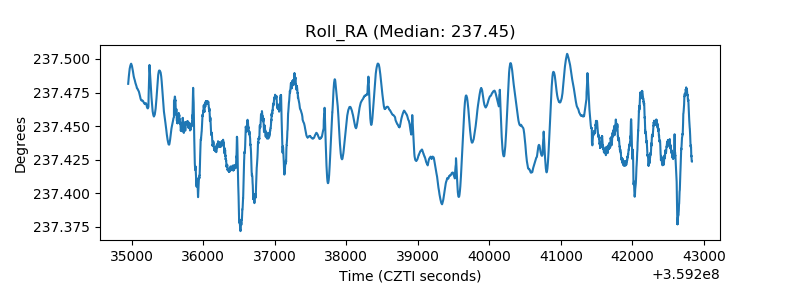

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
