| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T14_9000004390_30527cztM0_level2.evt | modeM0/AS1A10_053T14_9000004390_30527cztM0_level2_quad_clean.evt |
| Size (bytes) | 615,205,440 | 80,709,120 |
| Size | 586.7 MB | 77.0 MB |
| Events in quadrant A | 3,348,528 | 533,139 |
| Events in quadrant B | 5,680,929 | 512,156 |
| Events in quadrant C | 5,355,046 | 480,649 |
| Events in quadrant D | 3,839,593 | 496,436 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13491 | 1 |
| B | 0 | 20691 | 1 |
| C | 0 | 20288 | 1 |
| D | 0 | 15181 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6035 | 84 | 1.391881% |
| B | 6035 | 428 | 7.091964% |
| C | 6036 | 530 | 8.780649% |
| D | 6036 | 97 | 1.607025% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

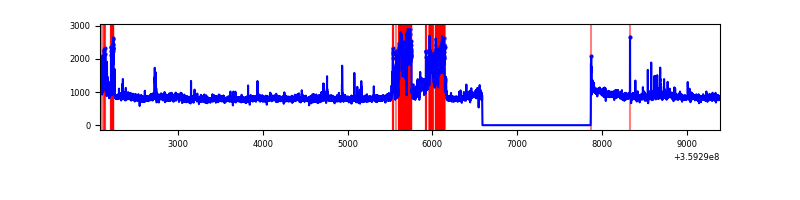

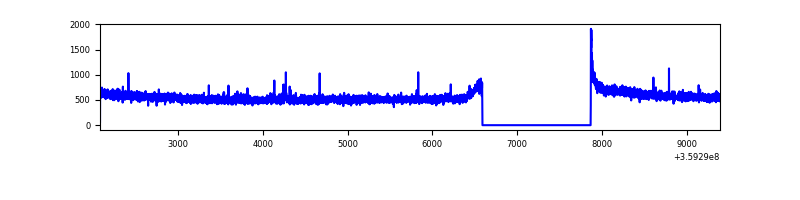

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 6036 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7315 | 6036 | 236 | 236 | 3.23% | 3.91% |  |
| C | 7316 | 6037 | 253 | 253 | 3.46% | 4.19% |  |
| D | 7316 | 6037 | 40 | 40 | 0.55% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10859 | 58.46 | 862 | 847 | 171.3 |
| A | 8 | 192 | 10484 | 56.27 | 862 | 847 | 171.3 |
| A | 12 | 96 | 9138 | 48.41 | 862 | 847 | 171.3 |
| B | 6 | 159 | 1614466 | 10591.2 | 824 | 810 | 152.4 |
| B | 6 | 36 | 711953 | 4667.57 | 824 | 810 | 152.4 |
| B | 0 | 229 | 72028 | 467.44 | 824 | 810 | 152.4 |
| C | 3 | 233 | 1092156 | 6101.37 | 776 | 784 | 178.9 |
| C | 15 | 208 | 835955 | 4669.06 | 776 | 784 | 178.9 |
| C | 10 | 22 | 199116 | 1108.78 | 776 | 784 | 178.9 |
| D | 1 | 52 | 295388 | 1548.67 | 822 | 806 | 190.2 |
| D | 8 | 195 | 221407 | 1159.74 | 822 | 806 | 190.2 |
| D | 13 | 249 | 166132 | 869.15 | 822 | 806 | 190.2 |

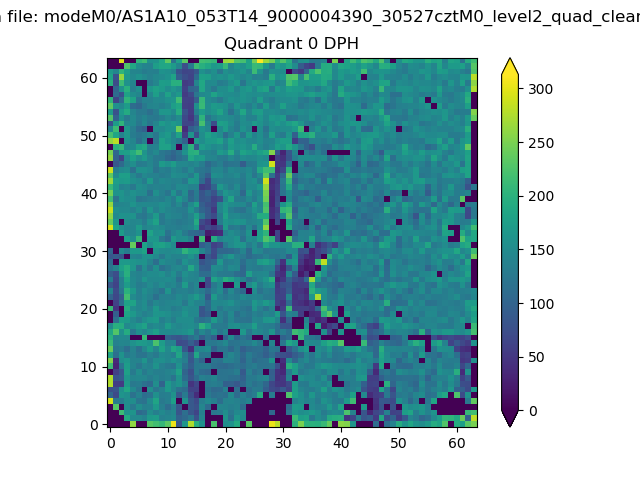

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

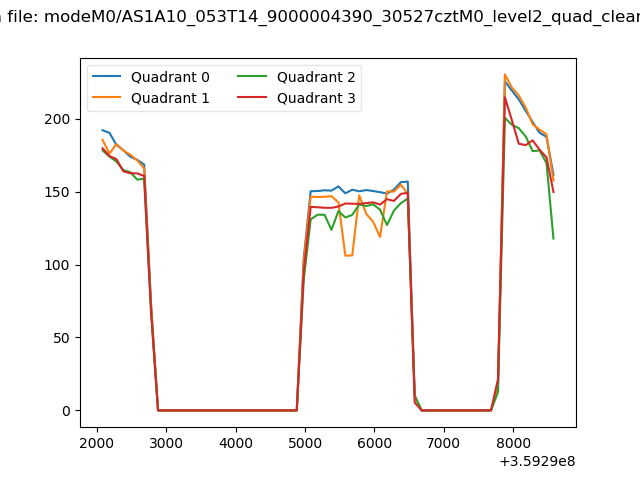

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

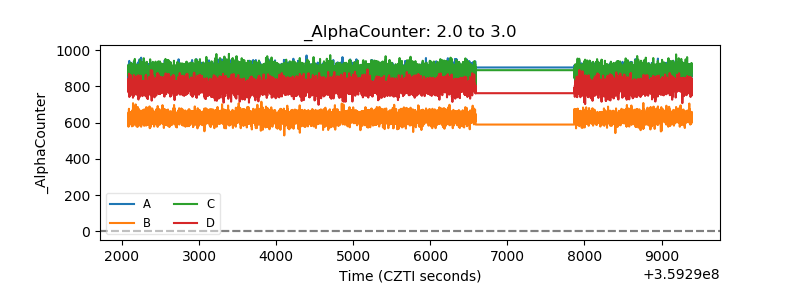

| Alpha Counter |  |

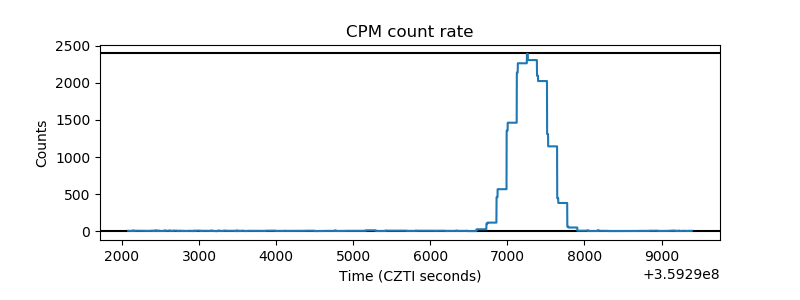

| _CPM_Rate |  |

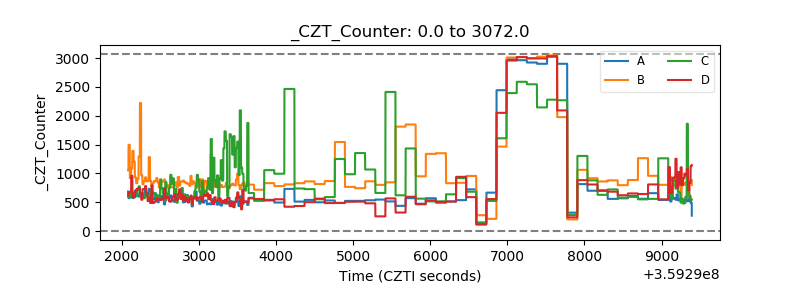

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

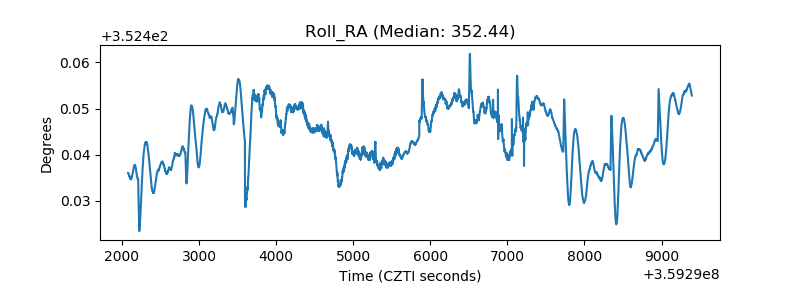

| _Roll_RA |  |
| Veto Counter |  |
