| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T15_9000004392_30530cztM0_level2.evt | modeM0/AS1A10_053T15_9000004392_30530cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,086,720 | 69,704,640 |
| Size | 536.0 MB | 66.5 MB |
| Events in quadrant A | 3,362,613 | 426,174 |
| Events in quadrant B | 5,273,167 | 420,185 |
| Events in quadrant C | 3,592,802 | 401,957 |
| Events in quadrant D | 4,349,554 | 404,116 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13762 | 1 |
| B | 0 | 20033 | 1 |
| C | 0 | 14570 | 1 |
| D | 0 | 17284 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6565 | 92 | 1.401371% |
| B | 6566 | 146 | 2.223576% |
| C | 6566 | 172 | 2.619555% |
| D | 6566 | 130 | 1.979896% |

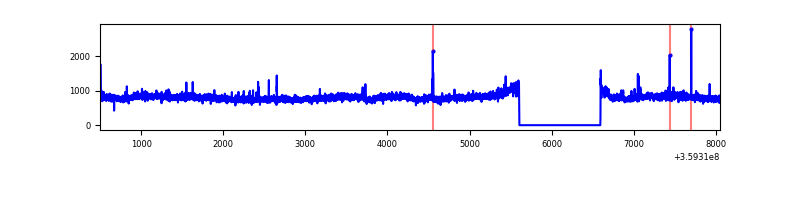

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

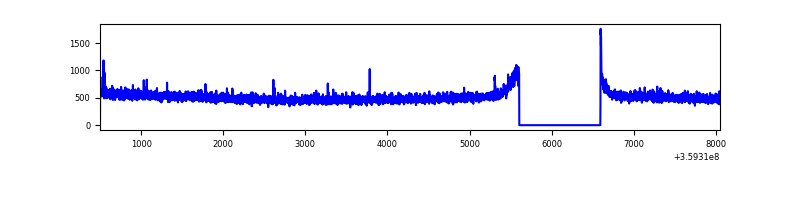

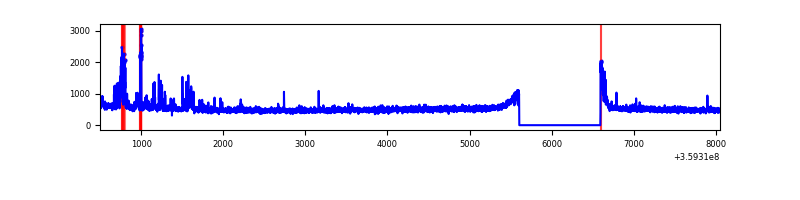

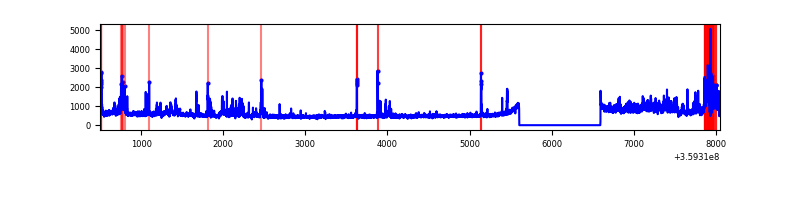

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7555 | 6566 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7556 | 6567 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7556 | 6567 | 23 | 23 | 0.30% | 0.35% |  |
| D | 7556 | 6567 | 76 | 76 | 1.01% | 1.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12336 | 66.68 | 866 | 849 | 172.3 |
| A | 8 | 192 | 11243 | 60.33 | 866 | 849 | 172.3 |
| A | 3 | 137 | 8400 | 43.83 | 866 | 849 | 172.3 |
| B | 6 | 159 | 1855181 | 11600.13 | 847 | 828 | 159.9 |
| B | 0 | 229 | 44362 | 272.33 | 847 | 828 | 159.9 |
| B | 12 | 111 | 19488 | 116.73 | 847 | 828 | 159.9 |
| C | 10 | 22 | 186168 | 985.86 | 811 | 817 | 188.0 |
| C | 14 | 238 | 134150 | 709.18 | 811 | 817 | 188.0 |
| C | 0 | 10 | 53975 | 282.74 | 811 | 817 | 188.0 |
| D | 8 | 195 | 592385 | 2904.87 | 826 | 809 | 203.6 |
| D | 1 | 52 | 288479 | 1412.57 | 826 | 809 | 203.6 |
| D | 12 | 227 | 139702 | 682.02 | 826 | 809 | 203.6 |

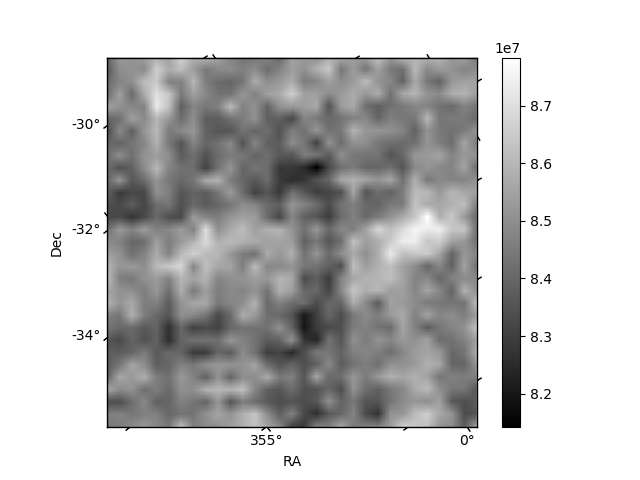

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

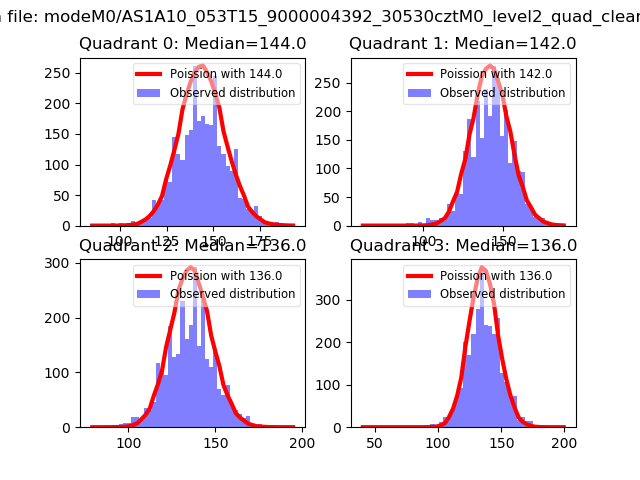

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

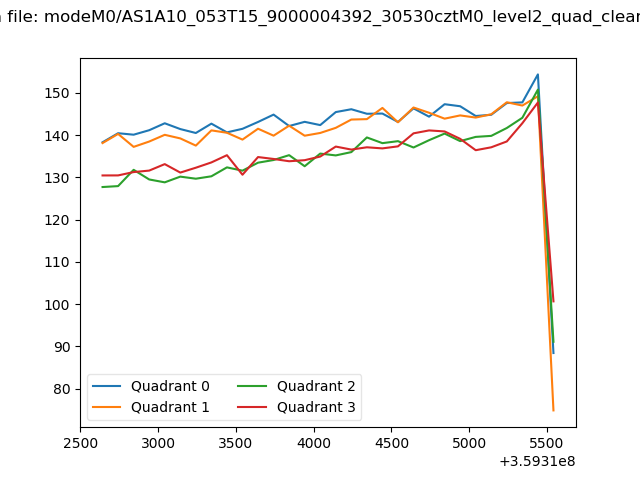

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

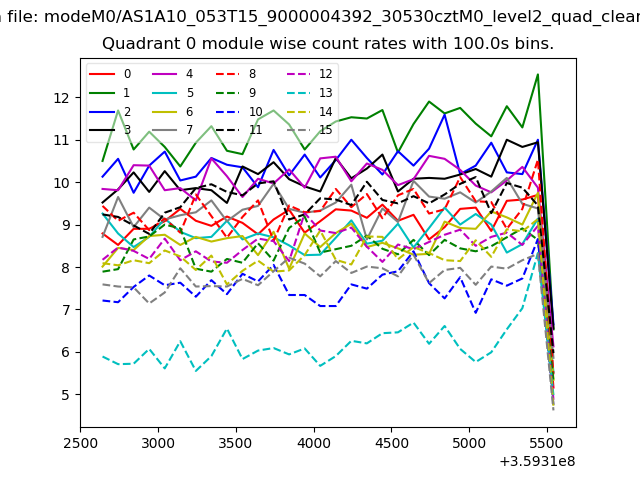

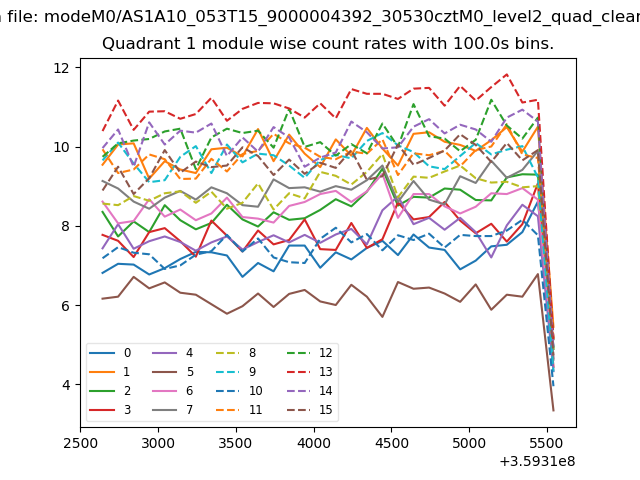

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

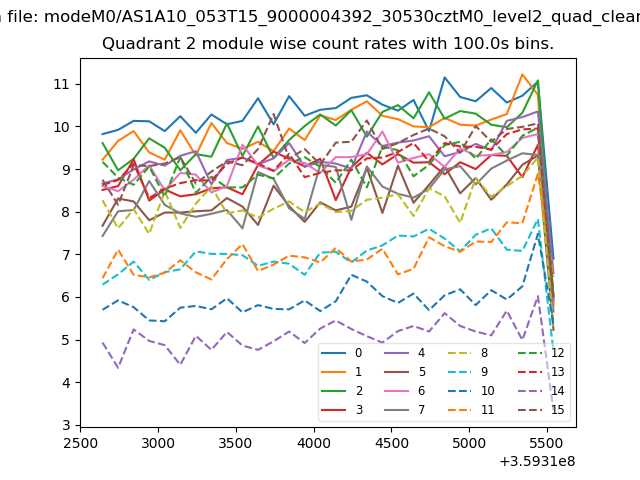

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

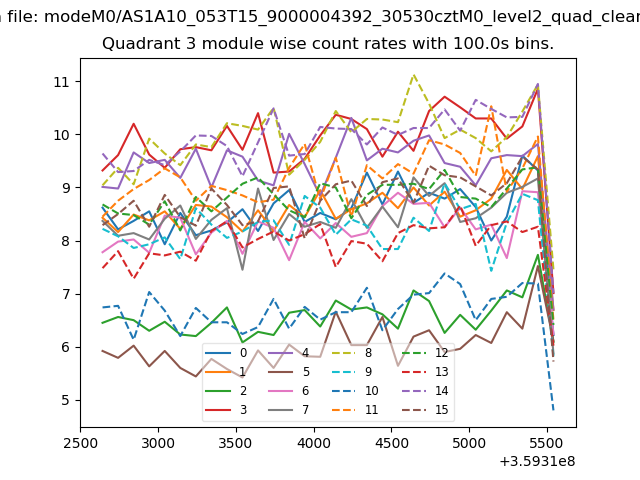

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

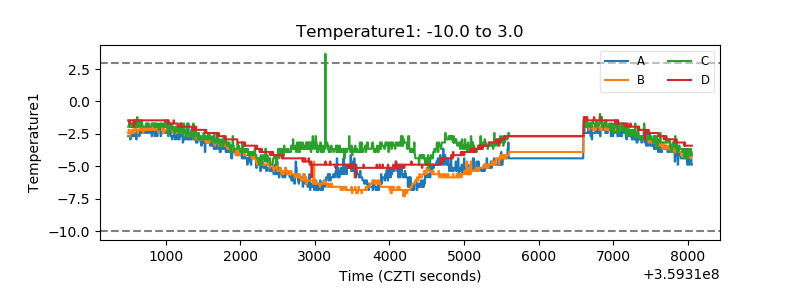

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

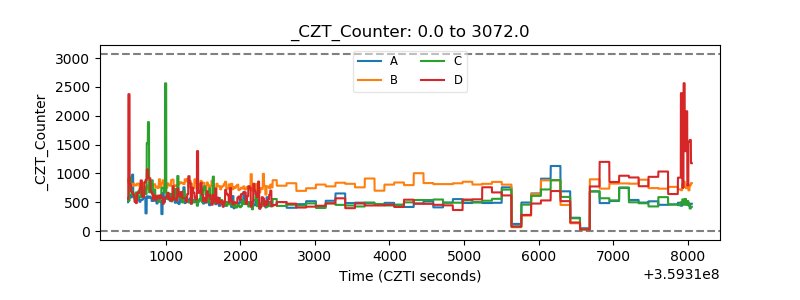

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

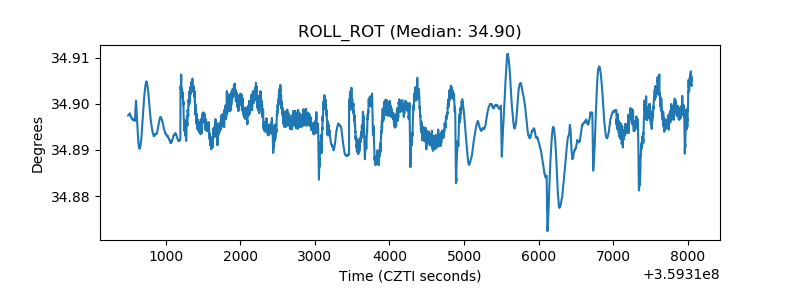

| _ROLL_ROT |  |

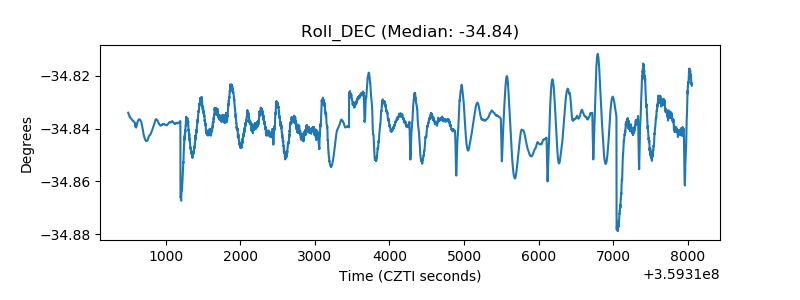

| _Roll_DEC |  |

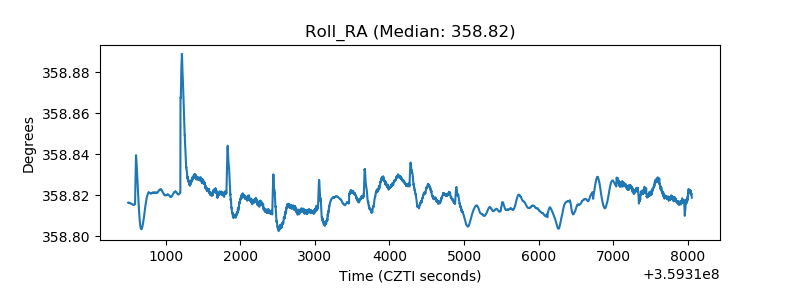

| _Roll_RA |  |

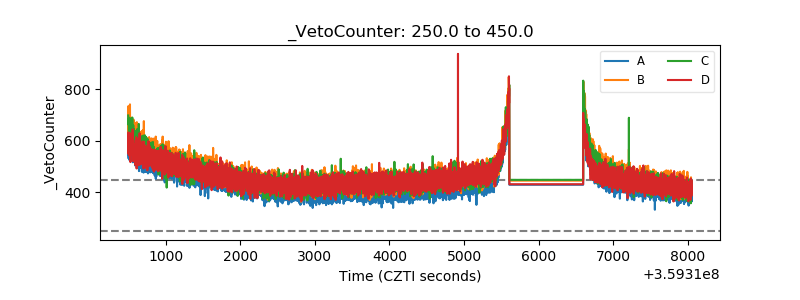

| Veto Counter |  |
