| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T20_9000004398_30547cztM0_level2.evt | modeM0/AS1A10_053T20_9000004398_30547cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,201,280 | 86,215,680 |
| Size | 605.8 MB | 82.2 MB |
| Events in quadrant A | 3,465,395 | 554,650 |
| Events in quadrant B | 5,938,381 | 544,249 |
| Events in quadrant C | 3,594,544 | 526,082 |
| Events in quadrant D | 5,750,784 | 483,382 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14856 | 1 |
| B | 0 | 22535 | 1 |
| C | 0 | 15086 | 1 |
| D | 0 | 21919 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7211 | 98 | 1.359035% |
| B | 7211 | 234 | 3.245042% |
| C | 7211 | 206 | 2.856747% |
| D | 7211 | 784 | 10.872278% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

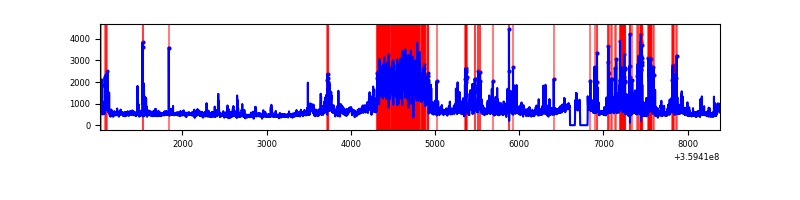

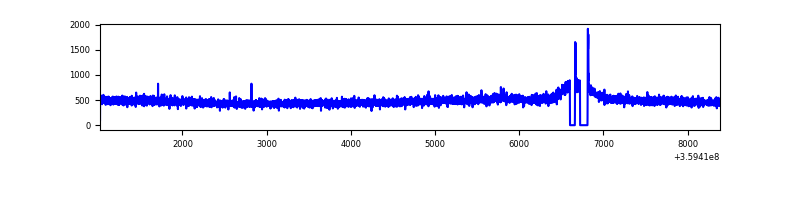

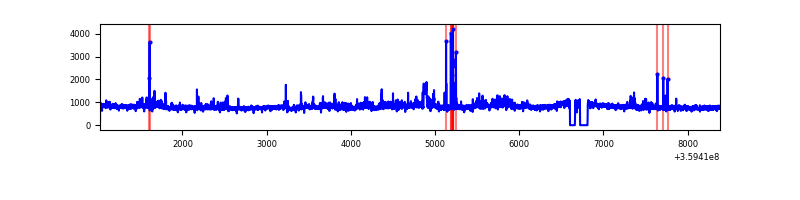

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7361 | 7213 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7361 | 7213 | 15 | 15 | 0.20% | 0.21% |  |
| C | 7361 | 7213 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7361 | 7213 | 360 | 360 | 4.89% | 4.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 22677 | 121.58 | 892 | 875 | 179.3 |
| A | 13 | 254 | 13991 | 73.14 | 892 | 875 | 179.3 |
| A | 3 | 137 | 9189 | 46.36 | 892 | 875 | 179.3 |
| B | 6 | 159 | 2066086 | 12217.14 | 874 | 851 | 169.0 |
| B | 6 | 36 | 339065 | 2000.74 | 874 | 851 | 169.0 |
| B | 4 | 171 | 47669 | 276.96 | 874 | 851 | 169.0 |
| C | 14 | 238 | 139382 | 697.56 | 843 | 849 | 198.6 |
| C | 0 | 10 | 82423 | 410.75 | 843 | 849 | 198.6 |
| C | 3 | 233 | 24234 | 117.75 | 843 | 849 | 198.6 |
| D | 7 | 238 | 1460256 | 7416.37 | 827 | 805 | 196.8 |
| D | 1 | 52 | 504950 | 2561.87 | 827 | 805 | 196.8 |
| D | 8 | 195 | 263409 | 1334.45 | 827 | 805 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

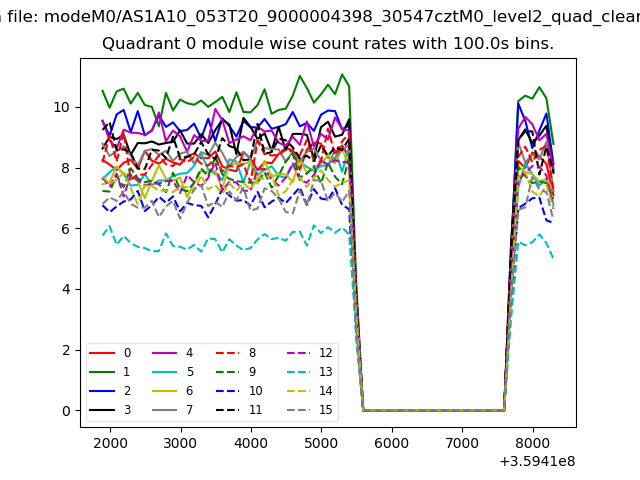

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

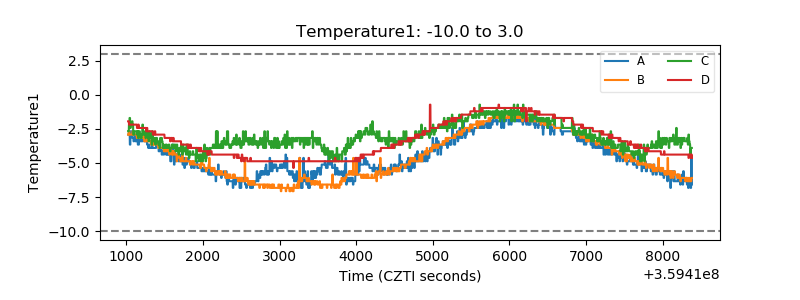

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

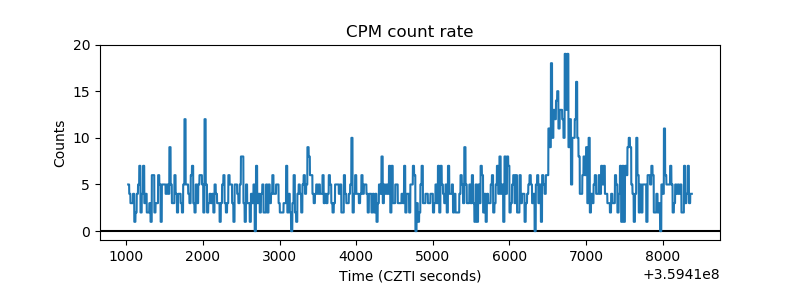

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

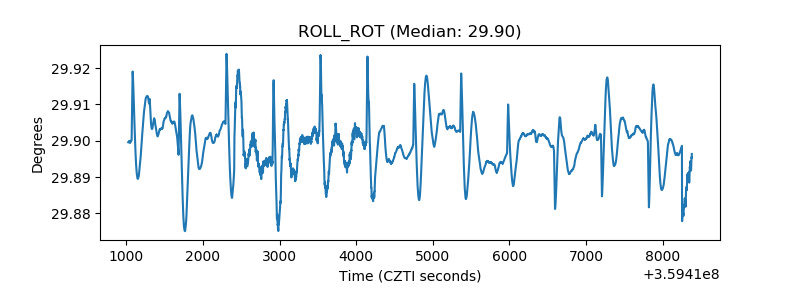

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

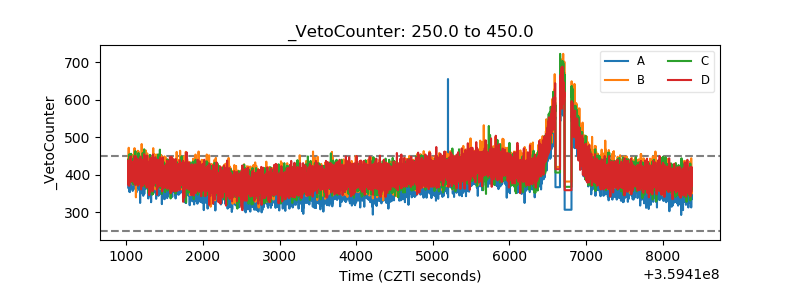

| Veto Counter |  |
