| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_055T01_9000004400_30552cztM0_level2.evt | modeM0/AS1A10_055T01_9000004400_30552cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,561,280 | 71,161,920 |
| Size | 503.1 MB | 67.9 MB |
| Events in quadrant A | 3,268,540 | 432,669 |
| Events in quadrant B | 5,048,135 | 434,287 |
| Events in quadrant C | 3,771,362 | 413,581 |
| Events in quadrant D | 3,441,521 | 413,714 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13804 | 2 |
| B | 0 | 20081 | 2 |
| C | 0 | 15222 | 2 |
| D | 0 | 14236 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6603 | 66 | 0.999546% |
| B | 6603 | 145 | 2.195972% |
| C | 6603 | 210 | 3.180373% |
| D | 6603 | 65 | 0.984401% |

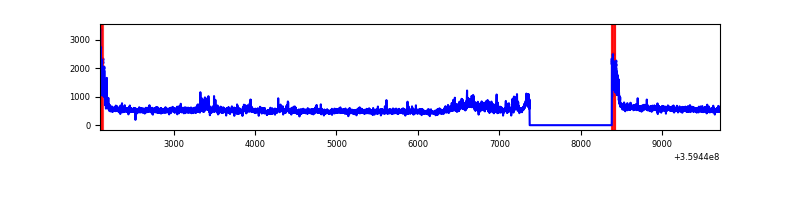

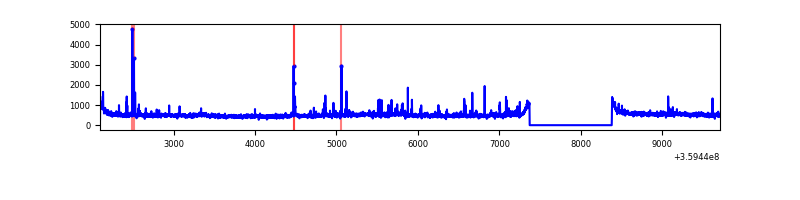

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6604 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7613 | 6604 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7613 | 6604 | 19 | 19 | 0.25% | 0.29% |  |
| D | 7613 | 6604 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 21673 | 124.27 | 837 | 822 | 167.8 |
| A | 0 | 13 | 16249 | 91.94 | 837 | 822 | 167.8 |
| A | 13 | 254 | 11249 | 62.14 | 837 | 822 | 167.8 |
| B | 6 | 159 | 1738434 | 10935.31 | 831 | 811 | 158.9 |
| B | 4 | 171 | 34680 | 213.15 | 831 | 811 | 158.9 |
| B | 12 | 111 | 19509 | 117.67 | 831 | 811 | 158.9 |
| C | 3 | 233 | 333633 | 1791.97 | 799 | 806 | 185.7 |
| C | 0 | 10 | 169461 | 908.05 | 799 | 806 | 185.7 |
| C | 14 | 238 | 131109 | 701.56 | 799 | 806 | 185.7 |
| D | 8 | 195 | 189668 | 981.52 | 813 | 794 | 192.4 |
| D | 1 | 52 | 70485 | 362.16 | 813 | 794 | 192.4 |
| D | 13 | 249 | 38319 | 195.01 | 813 | 794 | 192.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

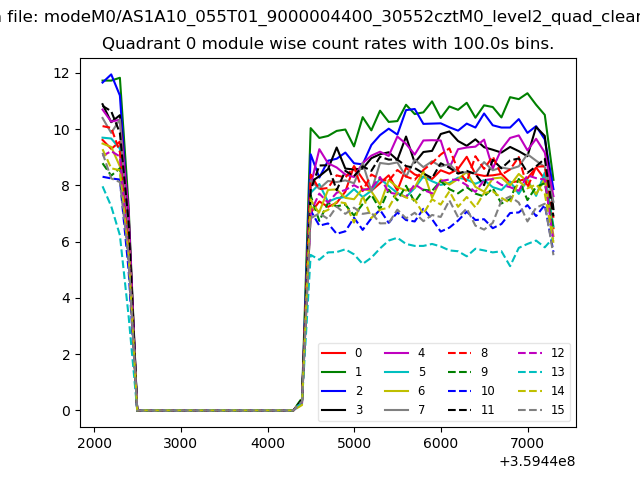

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

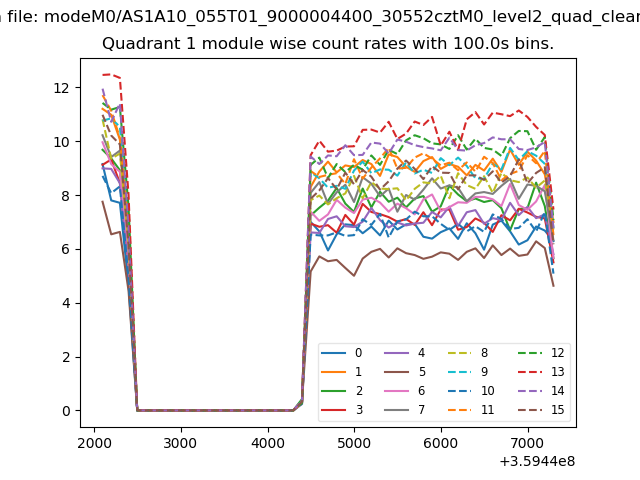

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

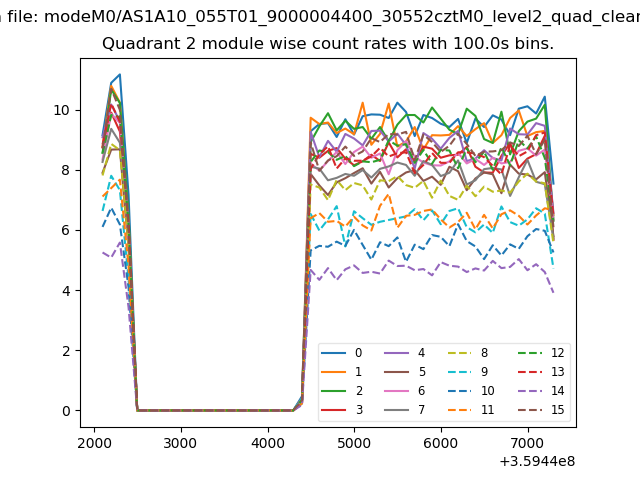

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

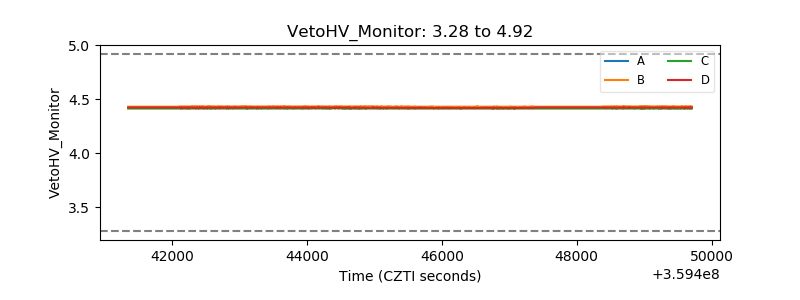

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

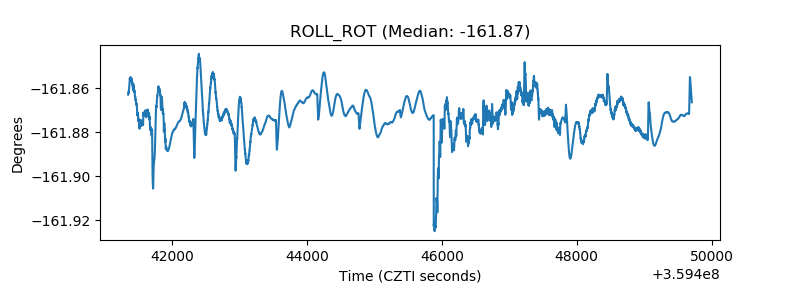

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

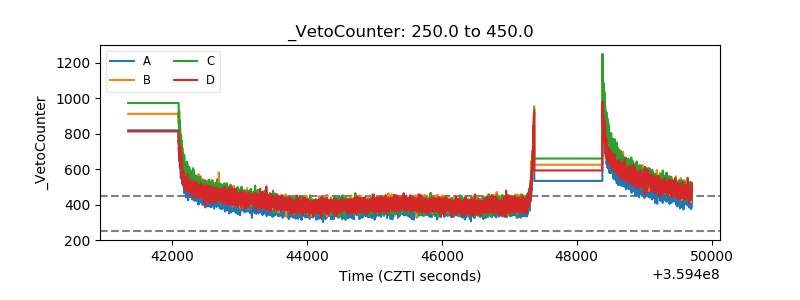

| Veto Counter |  |
