| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_055T01_9000004400_30554cztM0_level2.evt | modeM0/AS1A10_055T01_9000004400_30554cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,756,800 | 70,623,360 |
| Size | 525.2 MB | 67.4 MB |
| Events in quadrant A | 3,455,784 | 431,440 |
| Events in quadrant B | 5,146,868 | 431,603 |
| Events in quadrant C | 3,708,807 | 414,750 |
| Events in quadrant D | 3,931,532 | 410,576 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14250 | 2 |
| B | 0 | 19818 | 2 |
| C | 0 | 15236 | 2 |
| D | 0 | 15687 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6453 | 74 | 1.146753% |
| B | 6453 | 147 | 2.278010% |
| C | 6453 | 279 | 4.323570% |
| D | 6453 | 99 | 1.534170% |

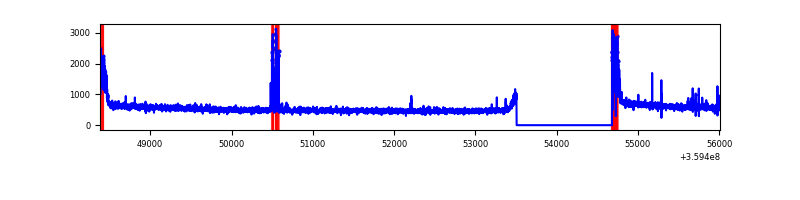

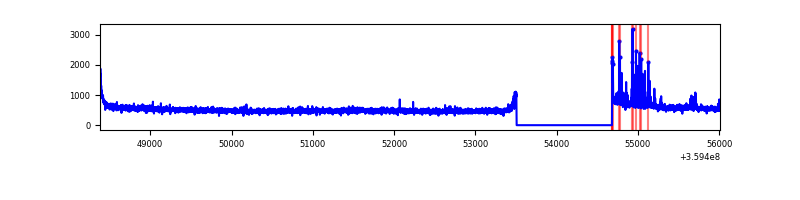

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7628 | 6454 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7628 | 6454 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7628 | 6454 | 55 | 55 | 0.72% | 0.85% |  |
| D | 7628 | 6454 | 44 | 44 | 0.58% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 100369 | 586.39 | 864 | 849 | 169.7 |
| A | 8 | 192 | 24334 | 138.38 | 864 | 849 | 169.7 |
| A | 13 | 254 | 10898 | 59.21 | 864 | 849 | 169.7 |
| B | 6 | 159 | 1719930 | 10848.77 | 854 | 835 | 158.5 |
| B | 4 | 171 | 30435 | 186.8 | 854 | 835 | 158.5 |
| B | 0 | 230 | 29473 | 180.73 | 854 | 835 | 158.5 |
| C | 0 | 10 | 300502 | 1601.04 | 818 | 825 | 187.2 |
| C | 14 | 238 | 143974 | 764.78 | 818 | 825 | 187.2 |
| C | 3 | 233 | 43932 | 230.3 | 818 | 825 | 187.2 |
| D | 1 | 52 | 492072 | 2529.5 | 837 | 817 | 194.2 |
| D | 8 | 195 | 179664 | 920.89 | 837 | 817 | 194.2 |
| D | 2 | 250 | 36568 | 184.08 | 837 | 817 | 194.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

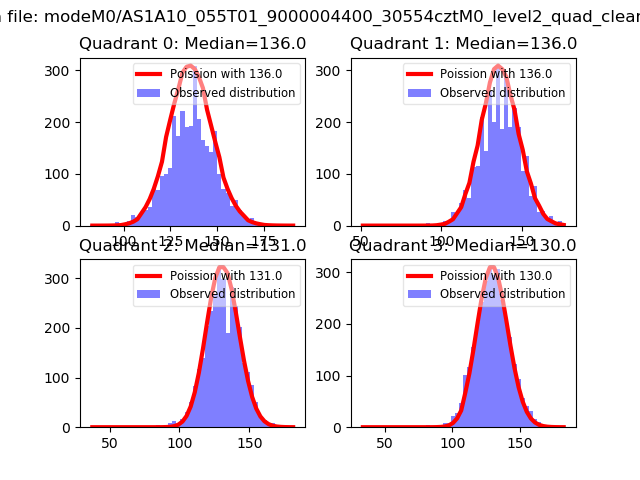

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

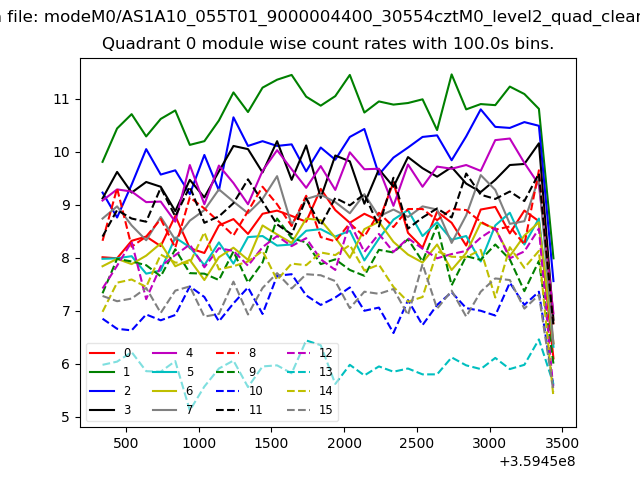

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

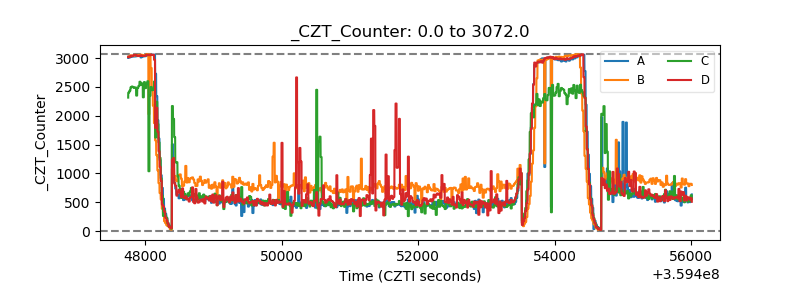

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

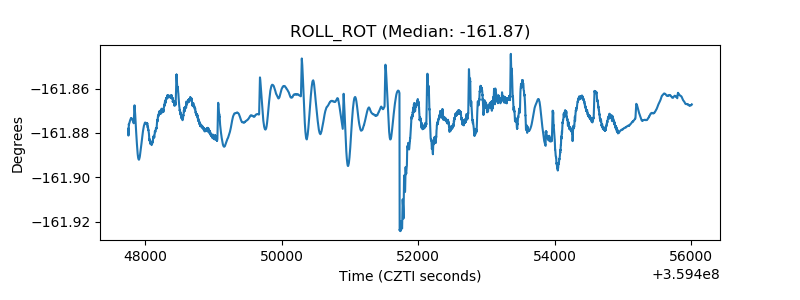

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
