| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T78_9000004402_30561cztM0_level2.evt | modeM0/AS1A10_094T78_9000004402_30561cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,548,160 | 78,269,760 |
| Size | 406.8 MB | 74.6 MB |
| Events in quadrant A | 2,237,554 | 527,660 |
| Events in quadrant B | 3,563,623 | 524,153 |
| Events in quadrant C | 2,360,421 | 510,378 |
| Events in quadrant D | 4,447,855 | 488,180 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9486 | 1 |
| B | 0 | 13955 | 1 |
| C | 0 | 9721 | 1 |
| D | 0 | 16298 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4551 | 74 | 1.626016% |
| B | 4551 | 153 | 3.361898% |
| C | 4551 | 117 | 2.570864% |
| D | 4550 | 218 | 4.791209% |

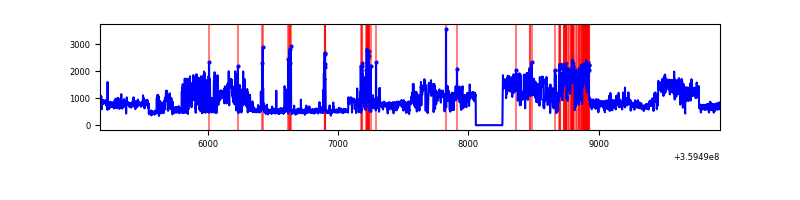

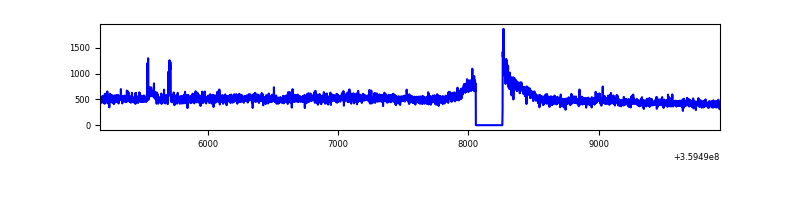

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4756 | 4552 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4756 | 4552 | 19 | 19 | 0.40% | 0.42% |  |
| C | 4756 | 4552 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4755 | 4551 | 93 | 93 | 1.96% | 2.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 12816 | 103.94 | 576 | 563 | 117.9 |
| A | 13 | 254 | 8279 | 65.46 | 576 | 563 | 117.9 |
| A | 3 | 137 | 5973 | 45.89 | 576 | 563 | 117.9 |
| B | 6 | 159 | 1291583 | 12015.39 | 562 | 547 | 107.4 |
| B | 5 | 172 | 41964 | 385.46 | 562 | 547 | 107.4 |
| B | 12 | 111 | 13444 | 120.03 | 562 | 547 | 107.4 |
| C | 3 | 233 | 143812 | 1111.91 | 543 | 545 | 128.8 |
| C | 14 | 238 | 88590 | 683.33 | 543 | 545 | 128.8 |
| C | 2 | 114 | 10901 | 80.37 | 543 | 545 | 128.8 |
| D | 1 | 52 | 2175318 | 16477.68 | 553 | 538 | 132.0 |
| D | 8 | 195 | 129277 | 975.42 | 553 | 538 | 132.0 |
| D | 2 | 234 | 21544 | 159.16 | 553 | 538 | 132.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

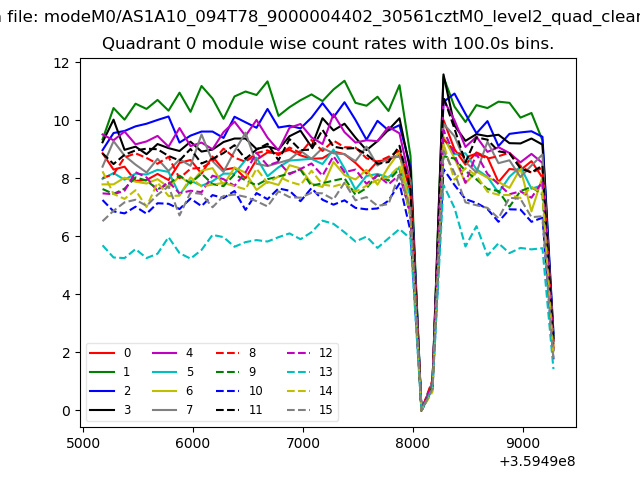

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

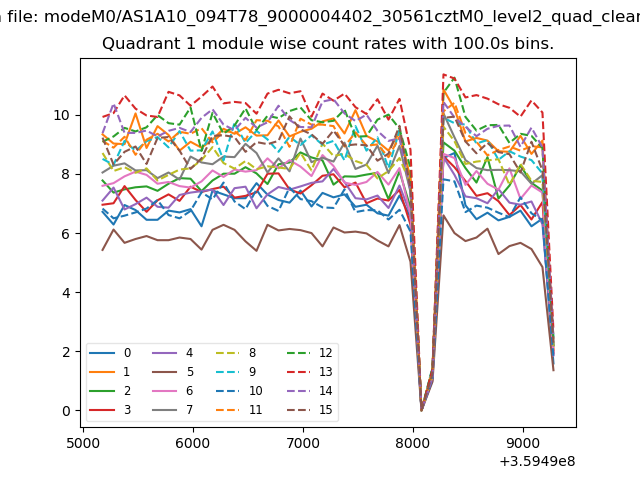

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

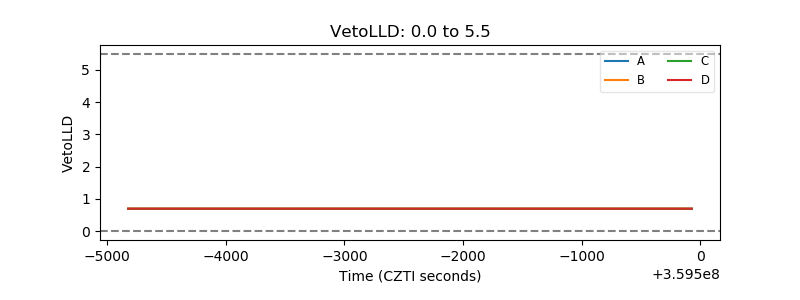

| Veto LLD |  |
| Alpha Counter |  |

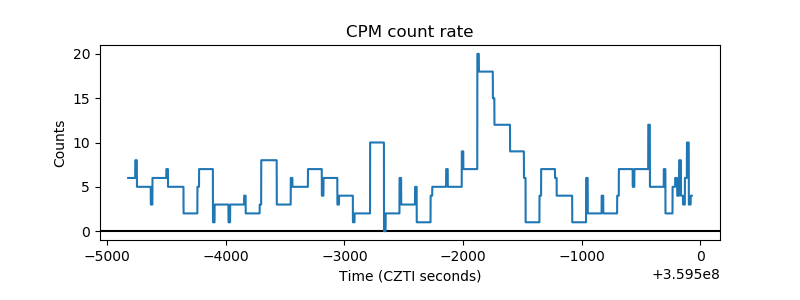

| _CPM_Rate |  |
| CZT Counter |  |

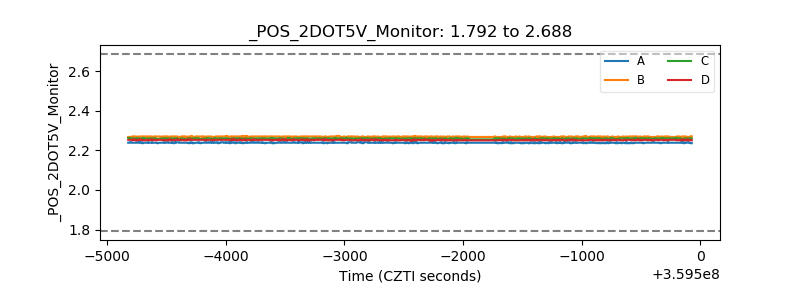

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

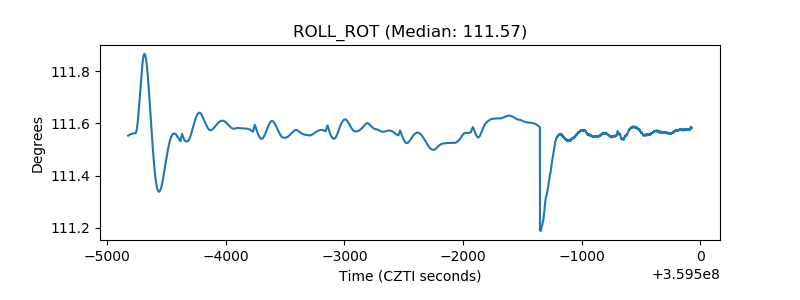

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
