| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T78_9000004402_30745cztM0_level2.evt | modeM0/AS1A10_094T78_9000004402_30745cztM0_level2_quad_clean.evt |
| Size (bytes) | 95,437,440 | 12,029,760 |
| Size | 91.0 MB | 11.5 MB |
| Events in quadrant A | 574,576 | 72,628 |
| Events in quadrant B | 896,640 | 71,299 |
| Events in quadrant C | 707,543 | 69,847 |
| Events in quadrant D | 635,751 | 67,793 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2869 | 594 |
| B | 0 | 3987 | 718 |
| C | 0 | 3469 | 634 |
| D | 0 | 3184 | 714 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 4 |
| B | 0 | 26 | 4 |
| C | 0 | 26 | 6 |
| D | 0 | 27 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140517270977320 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1082 | 1 | 0.092421% |
| B | 1071 | 5 | 0.466853% |
| C | 1080 | 13 | 1.203704% |
| D | 1070 | 6 | 0.560748% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

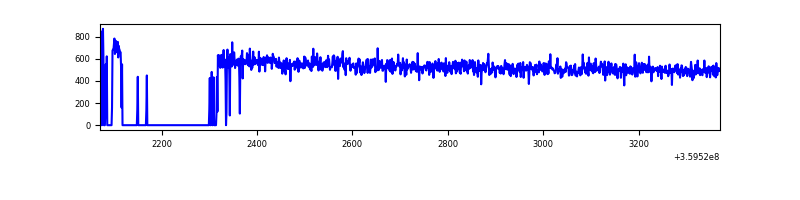

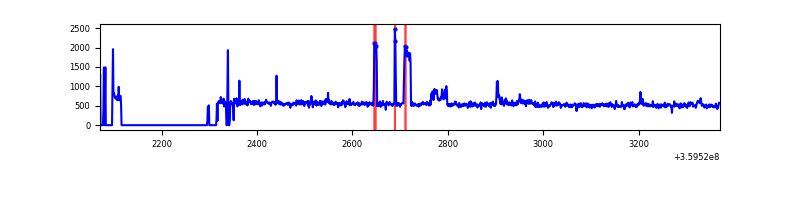

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1299 | 1096 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1300 | 1084 | 1 | 1 | 0.08% | 0.09% |  |
| C | 1300 | 1093 | 1 | 1 | 0.08% | 0.09% |  |
| D | 1300 | 1080 | 7 | 7 | 0.54% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2002 | 60.0 | 148 | 146 | 30.9 |
| A | 0 | 226 | 1226 | 34.91 | 148 | 146 | 30.9 |
| A | 3 | 137 | 1217 | 34.62 | 148 | 146 | 30.9 |
| B | 6 | 159 | 315089 | 10740.74 | 146 | 142 | 29.3 |
| B | 10 | 247 | 8499 | 285.0 | 146 | 142 | 29.3 |
| B | 12 | 111 | 3077 | 100.09 | 146 | 142 | 29.3 |
| C | 3 | 233 | 94012 | 2623.35 | 146 | 147 | 35.8 |
| C | 14 | 238 | 26136 | 726.34 | 146 | 147 | 35.8 |
| C | 0 | 10 | 8417 | 231.13 | 146 | 147 | 35.8 |
| D | 8 | 195 | 55005 | 1413.74 | 144 | 142 | 38.8 |
| D | 10 | 253 | 16775 | 428.61 | 144 | 142 | 38.8 |
| D | 2 | 250 | 13332 | 339.89 | 144 | 142 | 38.8 |

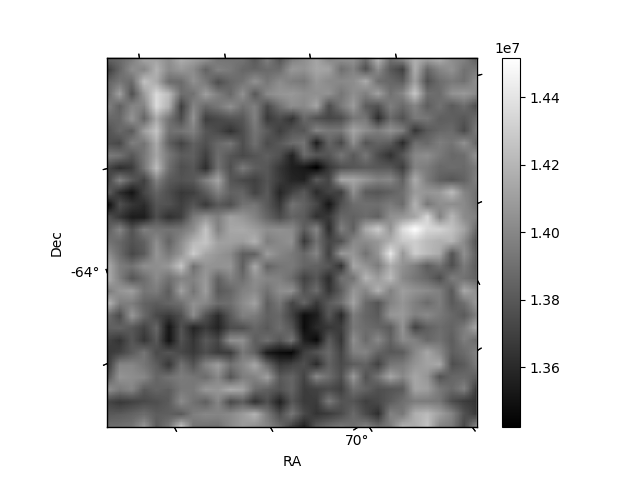

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

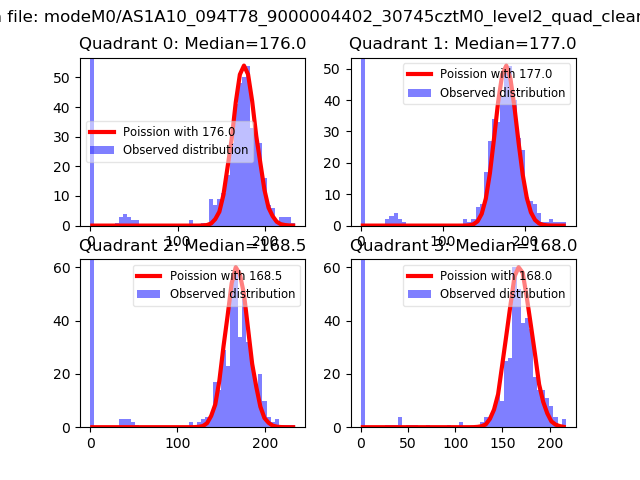

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

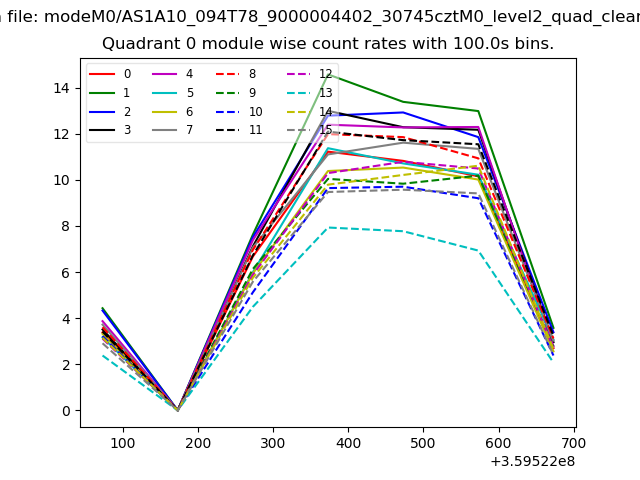

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

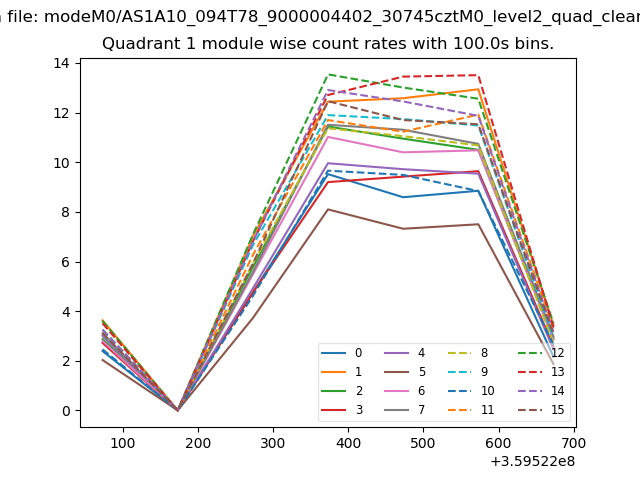

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

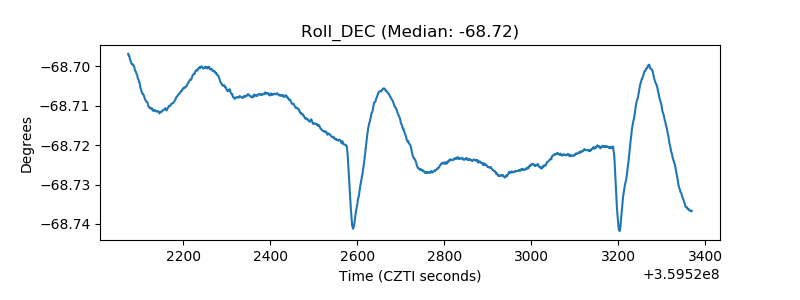

| _Roll_DEC |  |

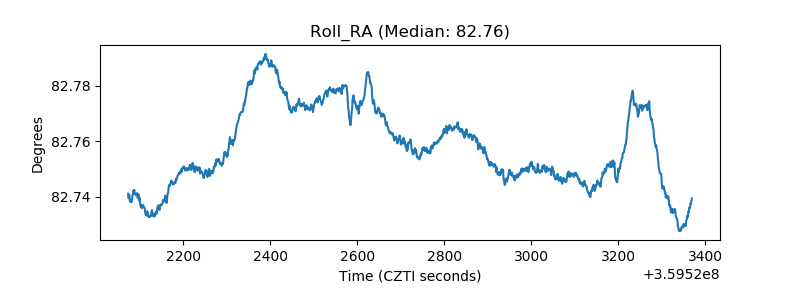

| _Roll_RA |  |
| Veto Counter |  |
