| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T23_9000004404_30574cztM0_level2.evt | modeM0/AS1A10_053T23_9000004404_30574cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,855,040 | 67,331,520 |
| Size | 494.8 MB | 64.2 MB |
| Events in quadrant A | 3,228,028 | 408,778 |
| Events in quadrant B | 4,991,841 | 405,698 |
| Events in quadrant C | 3,377,541 | 384,715 |
| Events in quadrant D | 3,678,027 | 388,494 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13365 | 1 |
| B | 0 | 19636 | 1 |
| C | 0 | 13749 | 1 |
| D | 0 | 14509 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6459 | 105 | 1.625639% |
| B | 6460 | 162 | 2.507740% |
| C | 6460 | 172 | 2.662539% |
| D | 6460 | 97 | 1.501548% |

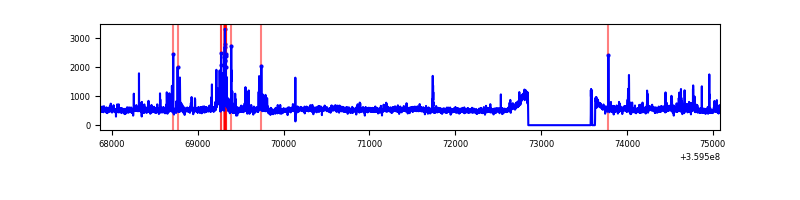

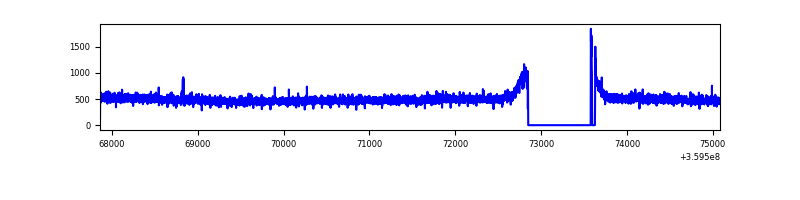

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7224 | 6461 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7225 | 6462 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7225 | 6462 | 14 | 14 | 0.19% | 0.22% |  |
| D | 7225 | 6462 | 17 | 17 | 0.24% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 15270 | 86.65 | 831 | 814 | 166.8 |
| A | 13 | 254 | 11284 | 62.76 | 831 | 814 | 166.8 |
| A | 3 | 137 | 8382 | 45.36 | 831 | 814 | 166.8 |
| B | 6 | 159 | 1762145 | 11131.57 | 814 | 791 | 158.2 |
| B | 6 | 36 | 33163 | 204.59 | 814 | 791 | 158.2 |
| B | 12 | 111 | 19458 | 117.97 | 814 | 791 | 158.2 |
| C | 14 | 238 | 131773 | 716.98 | 779 | 784 | 182.7 |
| C | 0 | 10 | 75655 | 409.81 | 779 | 784 | 182.7 |
| C | 3 | 233 | 41460 | 222.64 | 779 | 784 | 182.7 |
| D | 8 | 195 | 341230 | 1776.56 | 804 | 781 | 191.6 |
| D | 5 | 222 | 140686 | 730.07 | 804 | 781 | 191.6 |
| D | 2 | 250 | 73315 | 378.5 | 804 | 781 | 191.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

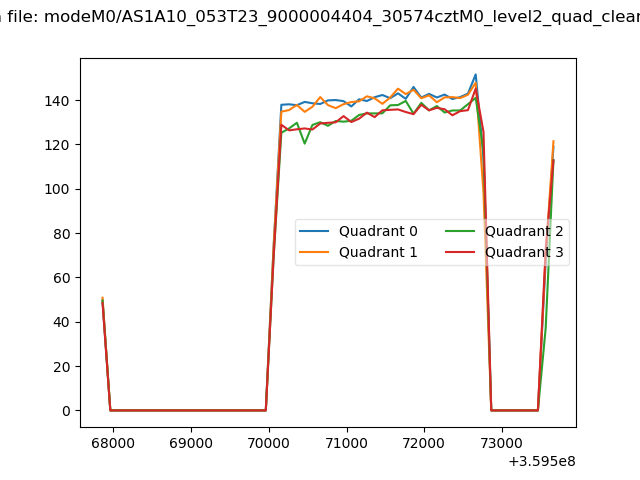

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

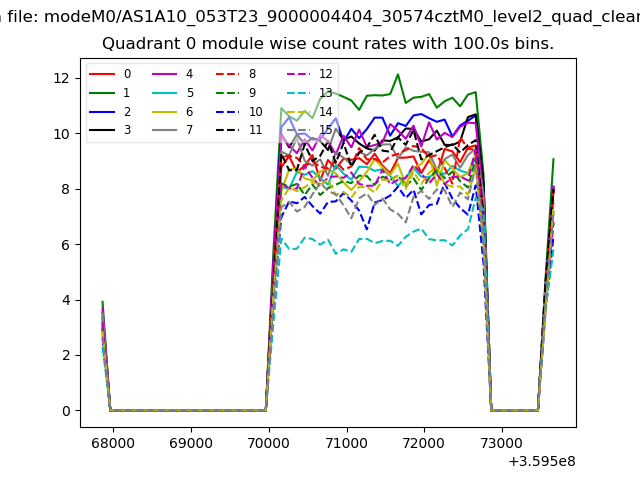

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

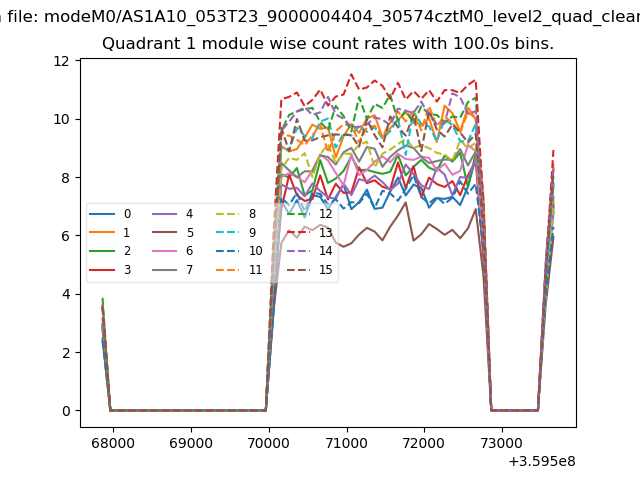

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

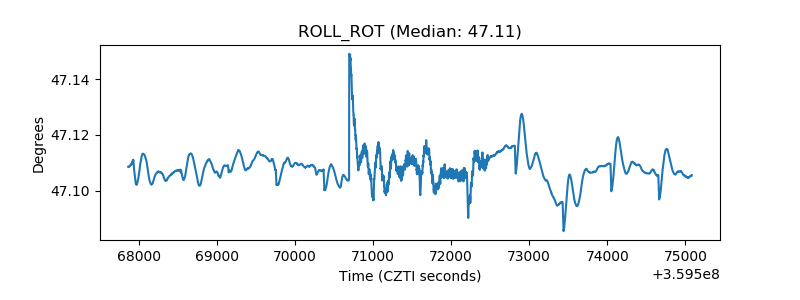

| _ROLL_ROT |  |

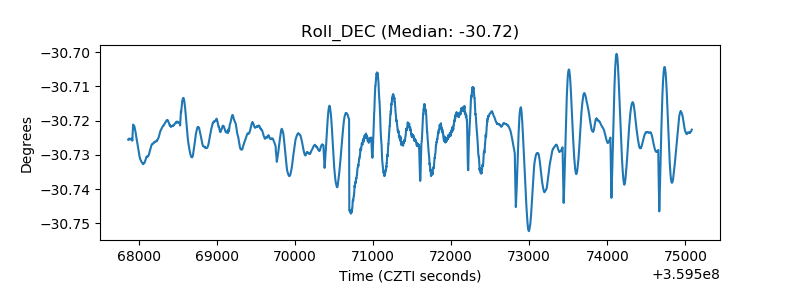

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
