| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T02_9000004406_30583cztM0_level2.evt | modeM0/AS1A10_103T02_9000004406_30583cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,967,680 | 95,135,040 |
| Size | 533.1 MB | 90.7 MB |
| Events in quadrant A | 3,433,590 | 632,229 |
| Events in quadrant B | 5,131,295 | 632,495 |
| Events in quadrant C | 3,723,155 | 583,967 |
| Events in quadrant D | 4,208,895 | 587,625 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14229 | 1 |
| B | 0 | 19769 | 1 |
| C | 0 | 15107 | 2 |
| D | 0 | 16617 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6369 | 92 | 1.444497% |
| B | 6370 | 117 | 1.836735% |
| C | 6369 | 298 | 4.678913% |
| D | 6369 | 185 | 2.904695% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

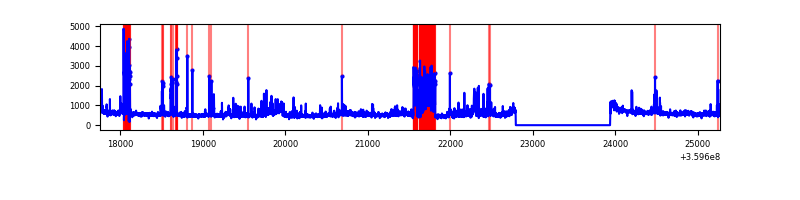

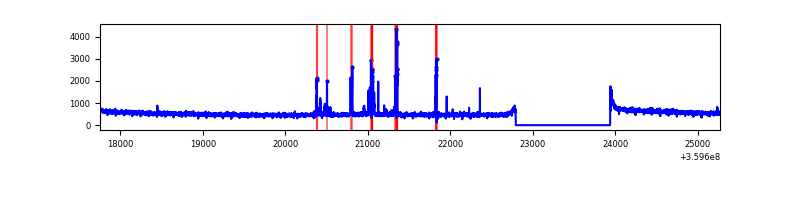

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7514 | 6370 | 23 | 23 | 0.31% | 0.36% |  |
| B | 7515 | 6371 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7514 | 6370 | 89 | 89 | 1.18% | 1.40% |  |
| D | 7514 | 6370 | 163 | 163 | 2.17% | 2.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 155956 | 922.59 | 847 | 832 | 168.1 |
| A | 13 | 254 | 11245 | 61.93 | 847 | 832 | 168.1 |
| A | 8 | 192 | 8089 | 43.16 | 847 | 832 | 168.1 |
| B | 6 | 159 | 1741076 | 11255.27 | 833 | 813 | 154.6 |
| B | 0 | 229 | 57528 | 366.81 | 833 | 813 | 154.6 |
| B | 5 | 255 | 29757 | 187.2 | 833 | 813 | 154.6 |
| C | 0 | 10 | 266622 | 1453.64 | 796 | 803 | 182.9 |
| C | 14 | 238 | 166693 | 907.17 | 796 | 803 | 182.9 |
| C | 3 | 233 | 97357 | 528.01 | 796 | 803 | 182.9 |
| D | 1 | 52 | 749105 | 3891.61 | 820 | 800 | 192.3 |
| D | 8 | 195 | 107933 | 557.15 | 820 | 800 | 192.3 |
| D | 12 | 227 | 100370 | 517.82 | 820 | 800 | 192.3 |

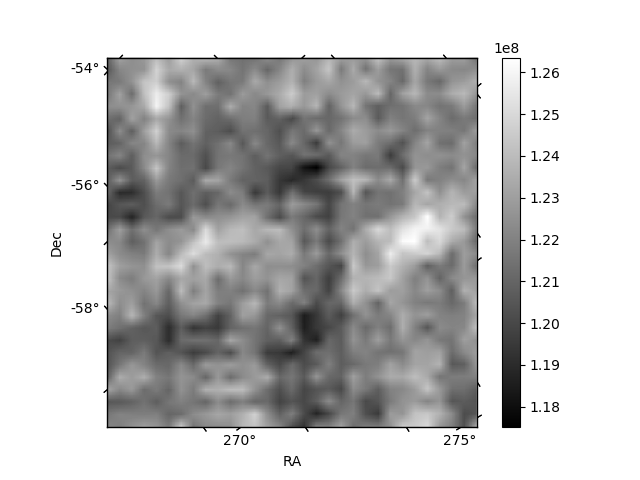

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

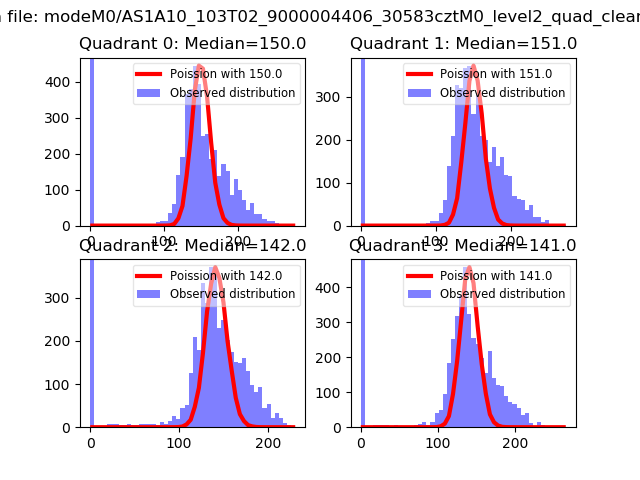

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

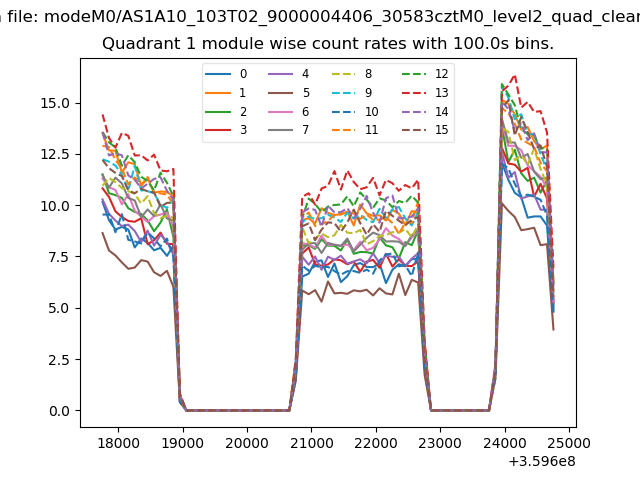

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

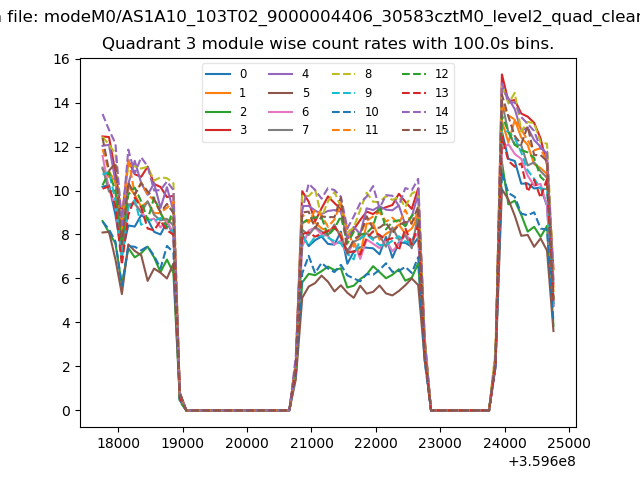

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

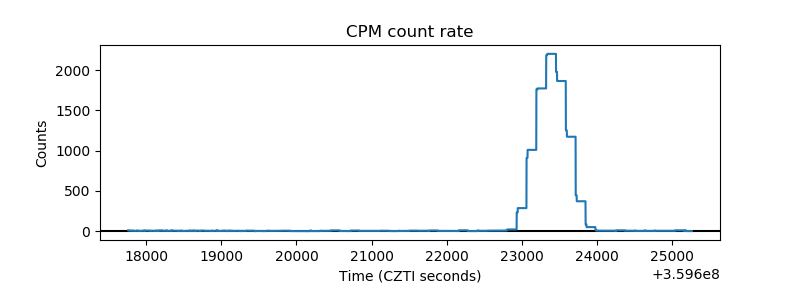

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

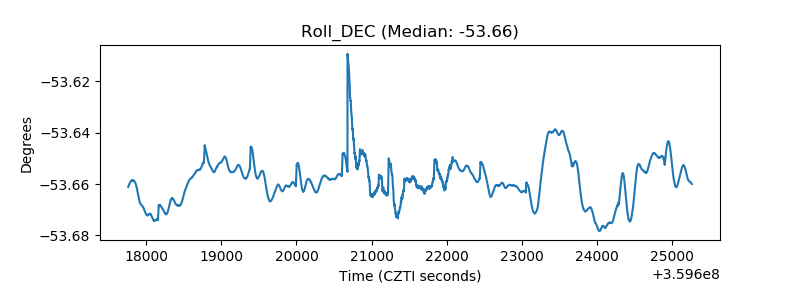

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
