| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T02_9000004406_30590cztM0_level2.evt | modeM0/AS1A10_103T02_9000004406_30590cztM0_level2_quad_clean.evt |
| Size (bytes) | 709,914,240 | 105,344,640 |
| Size | 677.0 MB | 100.5 MB |
| Events in quadrant A | 3,632,966 | 698,189 |
| Events in quadrant B | 5,893,314 | 693,305 |
| Events in quadrant C | 4,001,123 | 659,149 |
| Events in quadrant D | 7,473,766 | 625,888 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15498 | 2 |
| B | 0 | 22733 | 2 |
| C | 0 | 16529 | 2 |
| D | 0 | 27412 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7373 | 113 | 1.532619% |
| B | 7373 | 274 | 3.716262% |
| C | 7373 | 355 | 4.814865% |
| D | 7373 | 789 | 10.701207% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8908 | 7375 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8908 | 7375 | 23 | 23 | 0.26% | 0.31% |  |
| C | 8908 | 7375 | 46 | 46 | 0.52% | 0.62% |  |
| D | 8908 | 7375 | 513 | 513 | 5.76% | 6.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 20389 | 104.5 | 935 | 914 | 186.4 |
| A | 13 | 254 | 13508 | 67.58 | 935 | 914 | 186.4 |
| A | 3 | 137 | 9378 | 45.42 | 935 | 914 | 186.4 |
| B | 6 | 159 | 2093773 | 12077.38 | 918 | 896 | 173.3 |
| B | 0 | 229 | 62674 | 356.5 | 918 | 896 | 173.3 |
| B | 5 | 255 | 53012 | 300.75 | 918 | 896 | 173.3 |
| C | 0 | 10 | 210035 | 1027.92 | 873 | 881 | 203.5 |
| C | 14 | 238 | 193848 | 948.37 | 873 | 881 | 203.5 |
| C | 14 | 254 | 71012 | 344.67 | 873 | 881 | 203.5 |
| D | 8 | 195 | 2558443 | 12333.53 | 870 | 846 | 207.4 |
| D | 12 | 227 | 473957 | 2281.49 | 870 | 846 | 207.4 |
| D | 12 | 218 | 382441 | 1840.17 | 870 | 846 | 207.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

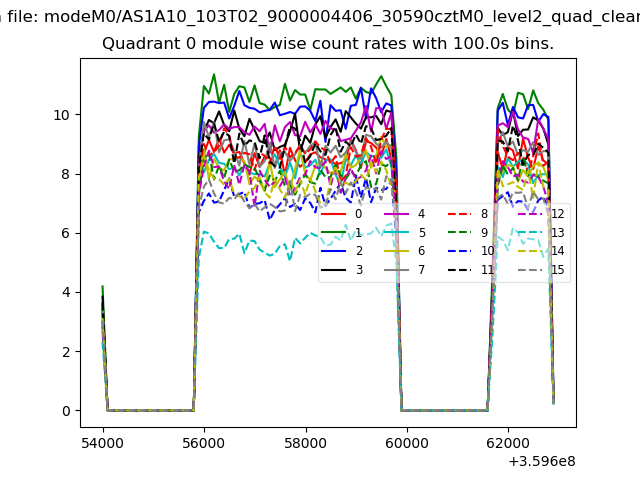

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

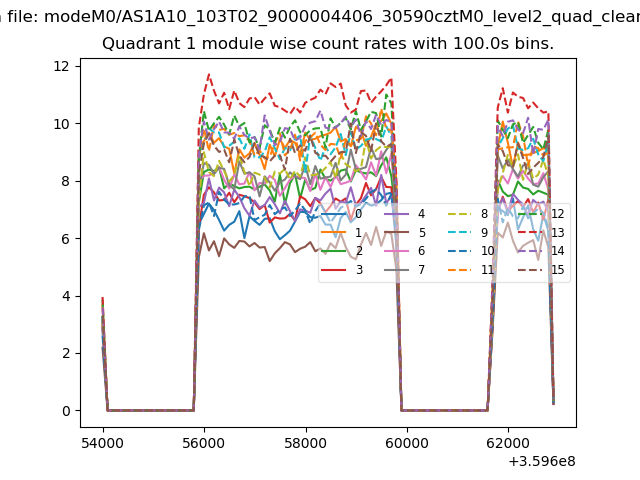

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

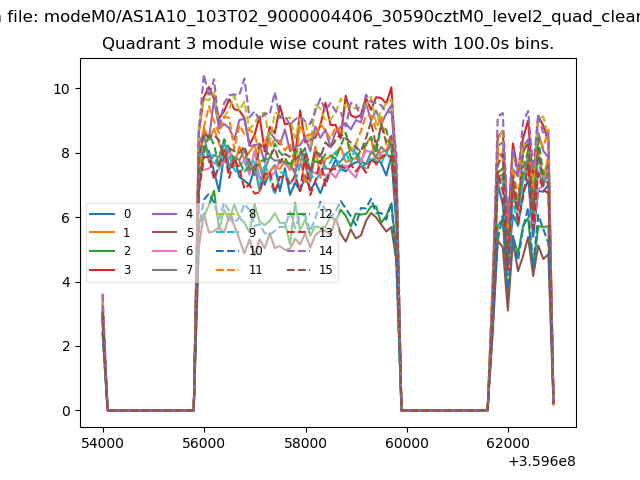

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
