| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T03_9000004408_30591cztM0_level2.evt | modeM0/AS1A10_058T03_9000004408_30591cztM0_level2_quad_clean.evt |
| Size (bytes) | 688,916,160 | 110,088,000 |
| Size | 657.0 MB | 105.0 MB |
| Events in quadrant A | 3,690,770 | 742,103 |
| Events in quadrant B | 5,966,011 | 734,807 |
| Events in quadrant C | 4,095,507 | 651,945 |
| Events in quadrant D | 6,595,000 | 673,322 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15910 | 2 |
| B | 0 | 23263 | 2 |
| C | 0 | 17213 | 2 |
| D | 0 | 25066 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7635 | 68 | 0.890635% |
| B | 7636 | 159 | 2.082242% |
| C | 7636 | 884 | 11.576742% |
| D | 7635 | 217 | 2.842174% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7830 | 7637 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7831 | 7638 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7831 | 7638 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7830 | 7637 | 112 | 112 | 1.43% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14831 | 72.35 | 953 | 933 | 192.1 |
| A | 8 | 192 | 12300 | 59.17 | 953 | 933 | 192.1 |
| A | 3 | 137 | 9584 | 45.04 | 953 | 933 | 192.1 |
| B | 6 | 159 | 2141903 | 11956.75 | 937 | 915 | 179.1 |
| B | 0 | 190 | 42069 | 229.83 | 937 | 915 | 179.1 |
| B | 0 | 229 | 37075 | 201.94 | 937 | 915 | 179.1 |
| C | 14 | 238 | 344397 | 1714.22 | 851 | 854 | 200.4 |
| C | 14 | 254 | 277597 | 1380.9 | 851 | 854 | 200.4 |
| C | 3 | 233 | 68411 | 337.1 | 851 | 854 | 200.4 |
| D | 8 | 195 | 2062062 | 9529.21 | 904 | 877 | 216.3 |
| D | 2 | 250 | 242803 | 1118.47 | 904 | 877 | 216.3 |
| D | 13 | 249 | 240002 | 1105.52 | 904 | 877 | 216.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

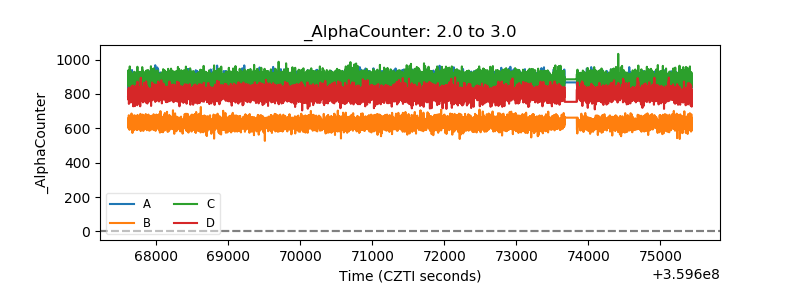

| Alpha Counter |  |

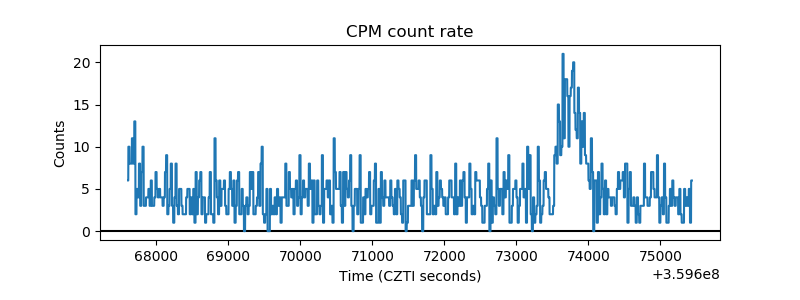

| _CPM_Rate |  |

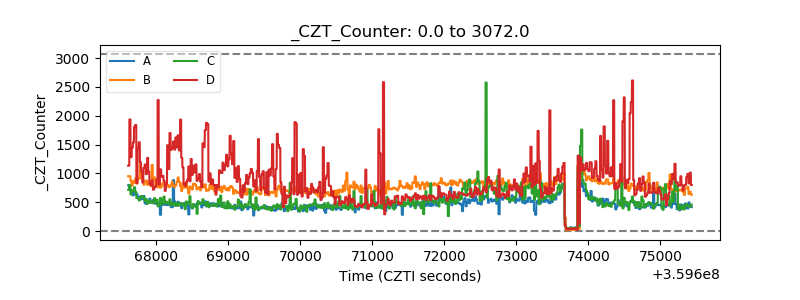

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

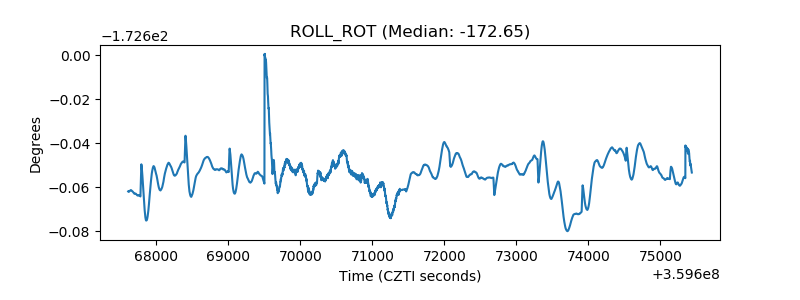

| _ROLL_ROT |  |
| _Roll_DEC |  |

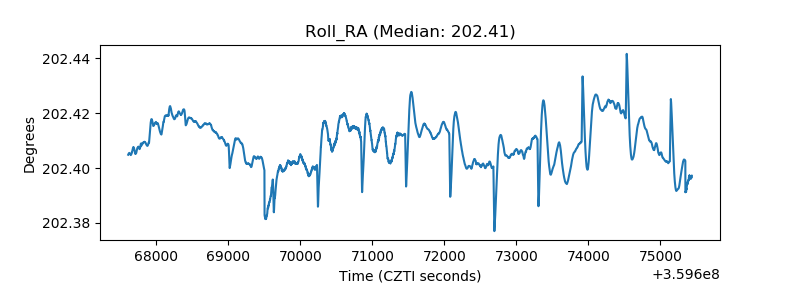

| _Roll_RA |  |

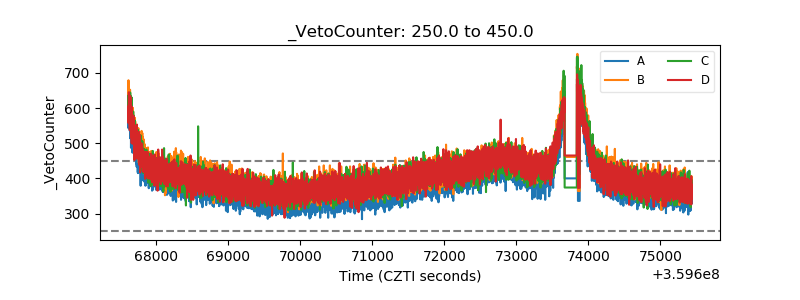

| Veto Counter |  |
