| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T05_9000004412_30628cztM0_level2.evt | modeM0/AS1A10_071T05_9000004412_30628cztM0_level2_quad_clean.evt |
| Size (bytes) | 376,104,960 | 57,545,280 |
| Size | 358.7 MB | 54.9 MB |
| Events in quadrant A | 2,273,467 | 381,633 |
| Events in quadrant B | 3,378,083 | 379,750 |
| Events in quadrant C | 2,233,895 | 353,170 |
| Events in quadrant D | 3,229,427 | 341,615 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9157 | 1 |
| B | 0 | 12759 | 1 |
| C | 0 | 8999 | 1 |
| D | 0 | 12652 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4055 | 21 | 0.517879% |
| B | 4055 | 48 | 1.183724% |
| C | 4055 | 52 | 1.282367% |
| D | 4055 | 60 | 1.479655% |

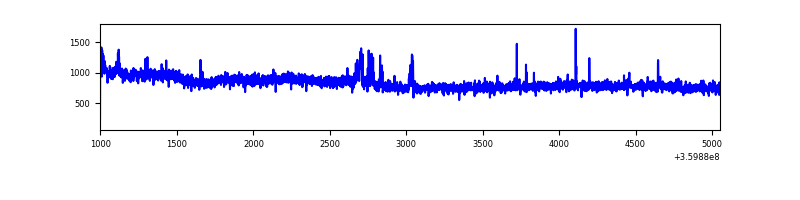

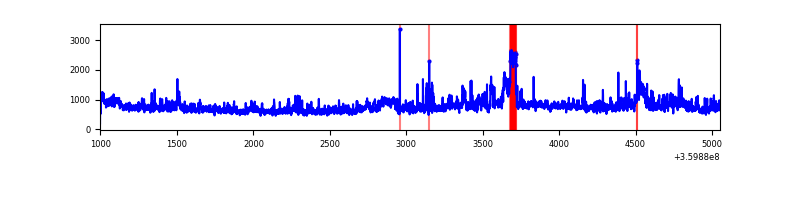

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4055 | 4055 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4055 | 4055 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4055 | 4055 | 4 | 4 | 0.10% | 0.10% |  |
| D | 4055 | 4055 | 40 | 40 | 0.99% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 10665 | 86.91 | 586 | 578 | 116.1 |
| A | 13 | 254 | 7625 | 60.72 | 586 | 578 | 116.1 |
| A | 3 | 137 | 5161 | 39.49 | 586 | 578 | 116.1 |
| B | 6 | 159 | 1088120 | 10103.78 | 573 | 561 | 107.6 |
| B | 0 | 190 | 37674 | 344.79 | 573 | 561 | 107.6 |
| B | 12 | 111 | 12418 | 110.16 | 573 | 561 | 107.6 |
| C | 14 | 238 | 90889 | 720.19 | 540 | 545 | 125.4 |
| C | 0 | 10 | 21976 | 170.84 | 540 | 545 | 125.4 |
| C | 2 | 114 | 9776 | 73.59 | 540 | 545 | 125.4 |
| D | 8 | 195 | 955768 | 7401.09 | 550 | 537 | 129.1 |
| D | 1 | 52 | 152336 | 1176.13 | 550 | 537 | 129.1 |
| D | 13 | 249 | 15825 | 118.45 | 550 | 537 | 129.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

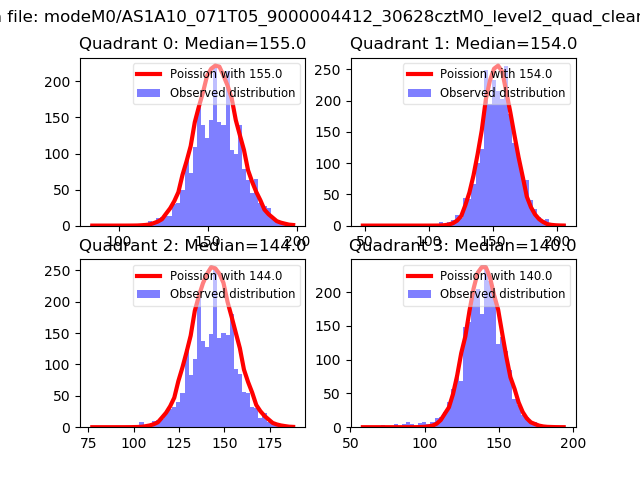

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

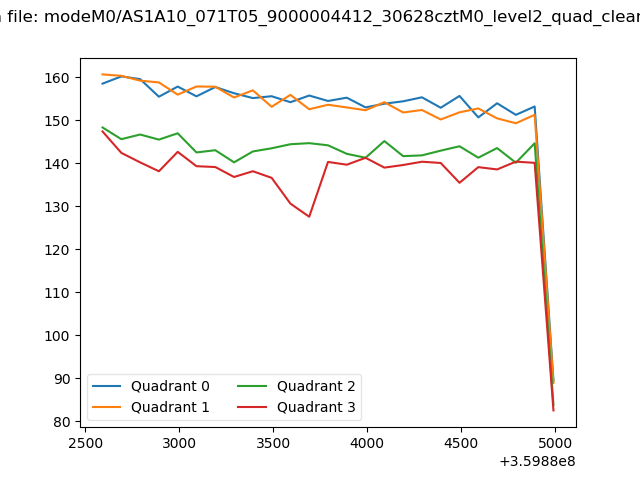

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

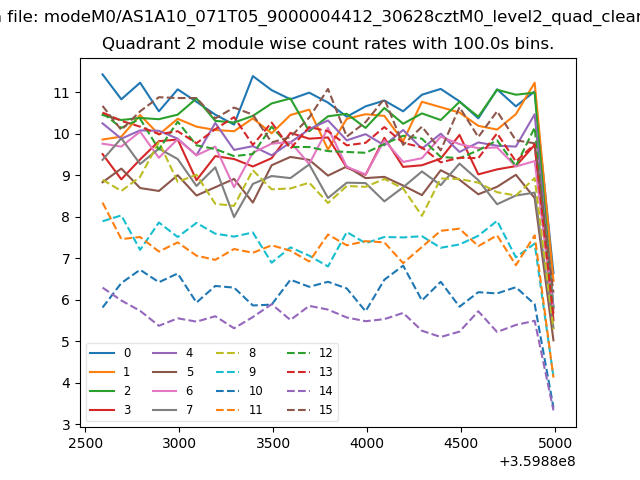

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

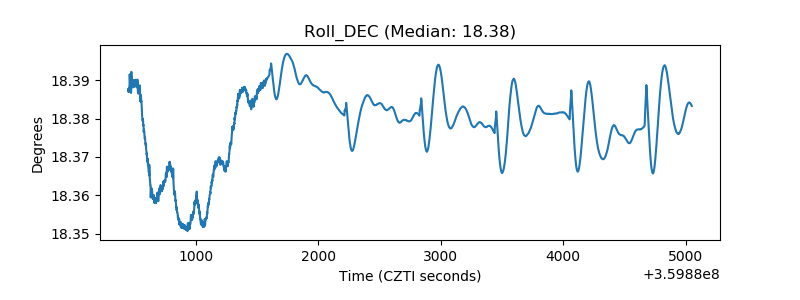

| _Roll_DEC |  |

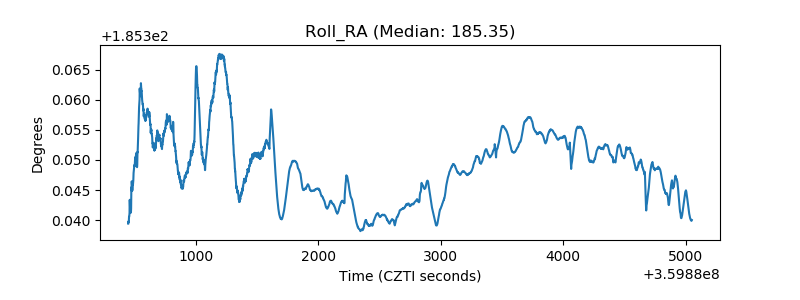

| _Roll_RA |  |

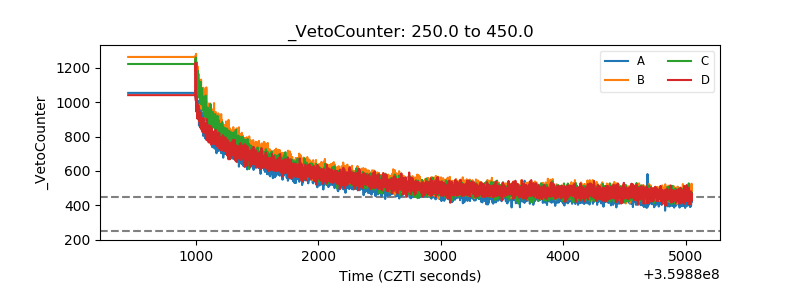

| Veto Counter |  |
