| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T02_9000004416_30643cztM0_level2.evt | modeM0/AS1A10_103T02_9000004416_30643cztM0_level2_quad_clean.evt |
| Size (bytes) | 710,867,520 | 78,762,240 |
| Size | 677.9 MB | 75.1 MB |
| Events in quadrant A | 3,582,364 | 515,642 |
| Events in quadrant B | 5,305,878 | 503,674 |
| Events in quadrant C | 3,603,389 | 496,977 |
| Events in quadrant D | 8,638,883 | 454,909 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14396 | 1 |
| B | 0 | 19623 | 1 |
| C | 0 | 14577 | 1 |
| D | 0 | 29820 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5915 | 195 | 3.296703% |
| B | 5916 | 329 | 5.561190% |
| C | 5916 | 281 | 4.749831% |
| D | 5915 | 897 | 15.164835% |

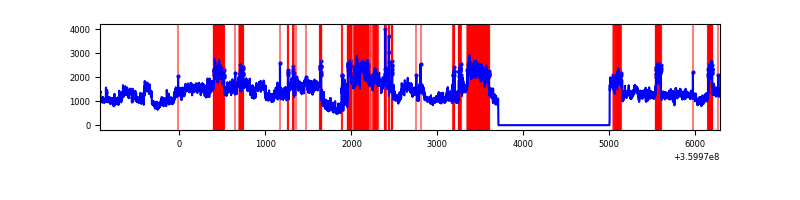

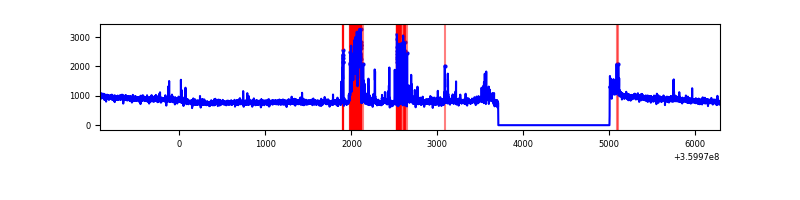

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7210 | 5916 | 70 | 70 | 0.97% | 1.18% |  |
| B | 7211 | 5917 | 138 | 138 | 1.91% | 2.33% |  |
| C | 7211 | 5917 | 12 | 12 | 0.17% | 0.20% |  |
| D | 7210 | 5916 | 736 | 736 | 10.21% | 12.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 290165 | 1754.55 | 851 | 837 | 164.9 |
| A | 8 | 192 | 10905 | 61.05 | 851 | 837 | 164.9 |
| A | 13 | 254 | 10650 | 59.51 | 851 | 837 | 164.9 |
| B | 6 | 159 | 1586135 | 10520.58 | 824 | 805 | 150.7 |
| B | 6 | 36 | 455849 | 3019.77 | 824 | 805 | 150.7 |
| B | 12 | 111 | 17414 | 110.22 | 824 | 805 | 150.7 |
| C | 14 | 238 | 171802 | 919.66 | 811 | 816 | 185.9 |
| C | 10 | 22 | 96302 | 513.58 | 811 | 816 | 185.9 |
| C | 0 | 10 | 53347 | 282.54 | 811 | 816 | 185.9 |
| D | 8 | 195 | 5296081 | 28393.79 | 804 | 785 | 186.5 |
| D | 12 | 33 | 101053 | 537.64 | 804 | 785 | 186.5 |
| D | 12 | 227 | 88200 | 468.73 | 804 | 785 | 186.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

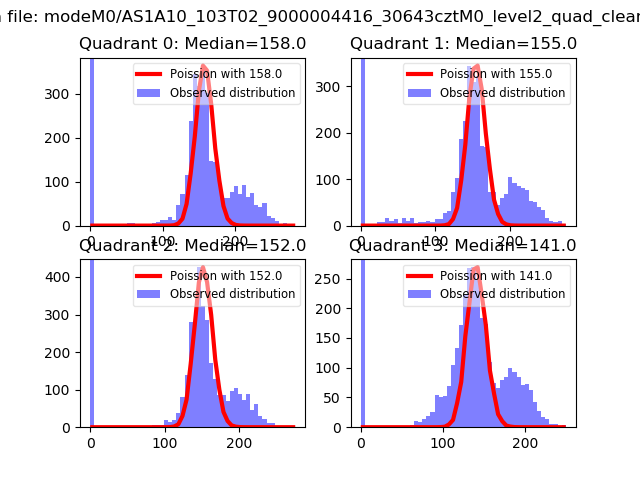

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

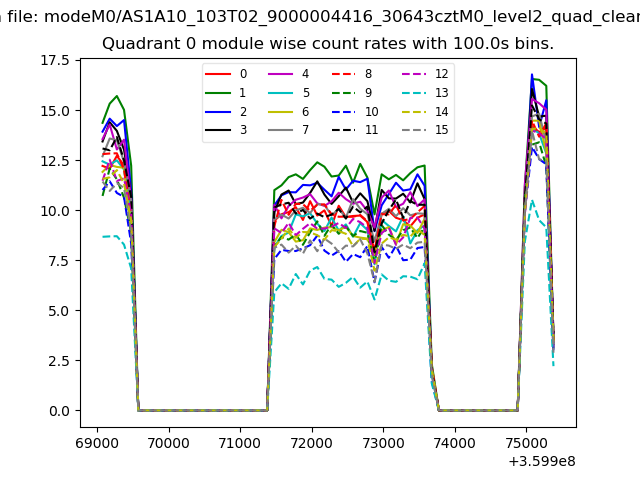

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

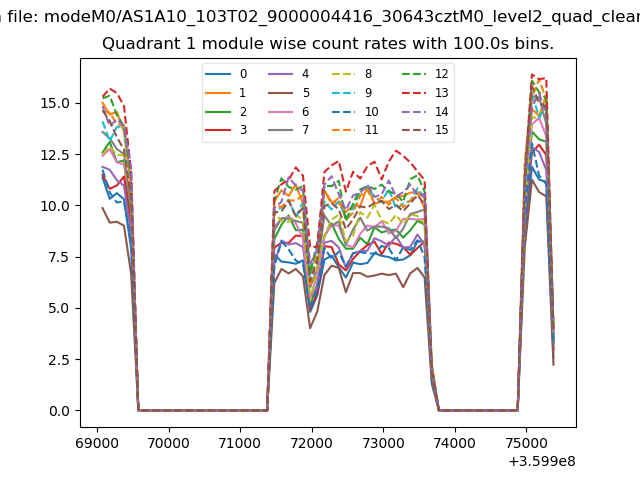

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

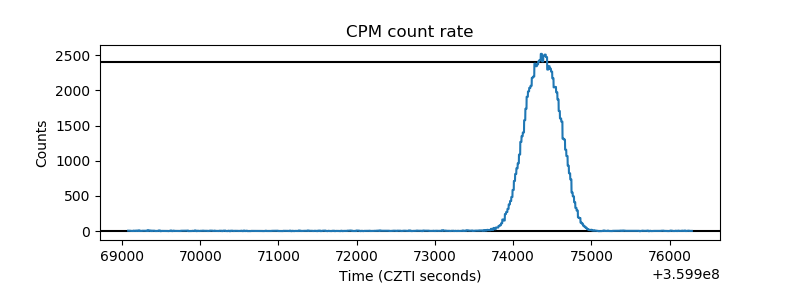

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

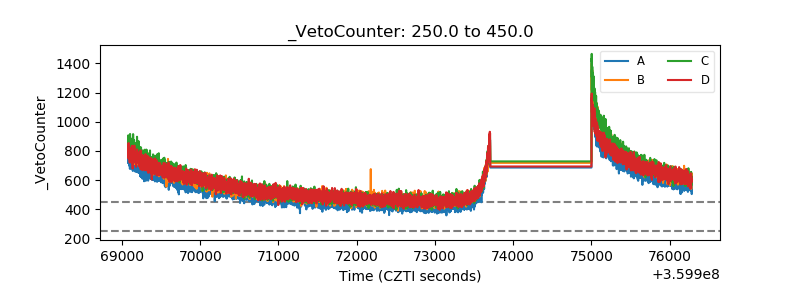

| Veto Counter |  |
