| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T02_9000004416_30645cztM0_level2.evt | modeM0/AS1A10_103T02_9000004416_30645cztM0_level2_quad_clean.evt |
| Size (bytes) | 815,221,440 | 76,783,680 |
| Size | 777.5 MB | 73.2 MB |
| Events in quadrant A | 3,771,228 | 495,891 |
| Events in quadrant B | 5,370,189 | 490,958 |
| Events in quadrant C | 3,822,761 | 474,091 |
| Events in quadrant D | 11,277,964 | 400,651 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15288 | 1 |
| B | 0 | 20506 | 1 |
| C | 0 | 15482 | 1 |
| D | 0 | 38113 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6633 | 153 | 2.306649% |
| B | 6633 | 207 | 3.120760% |
| C | 6633 | 220 | 3.316750% |
| D | 6632 | 2222 | 33.504222% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7888 | 6634 | 21 | 21 | 0.27% | 0.32% |  |
| B | 7888 | 6634 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7888 | 6634 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7887 | 6633 | 2100 | 2100 | 26.63% | 31.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 201507 | 1105.4 | 922 | 906 | 181.5 |
| A | 13 | 254 | 12080 | 61.57 | 922 | 906 | 181.5 |
| A | 8 | 192 | 10562 | 53.21 | 922 | 906 | 181.5 |
| B | 6 | 159 | 1748264 | 10441.81 | 900 | 877 | 167.3 |
| B | 0 | 229 | 46074 | 270.08 | 900 | 877 | 167.3 |
| B | 0 | 190 | 25936 | 149.74 | 900 | 877 | 167.3 |
| C | 14 | 238 | 158661 | 792.82 | 872 | 878 | 199.0 |
| C | 10 | 22 | 105286 | 524.62 | 872 | 878 | 199.0 |
| C | 3 | 233 | 65076 | 322.58 | 872 | 878 | 199.0 |
| D | 8 | 195 | 6726722 | 36030.67 | 809 | 791 | 186.7 |
| D | 10 | 253 | 1221768 | 6540.75 | 809 | 791 | 186.7 |
| D | 12 | 227 | 94541 | 502.22 | 809 | 791 | 186.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

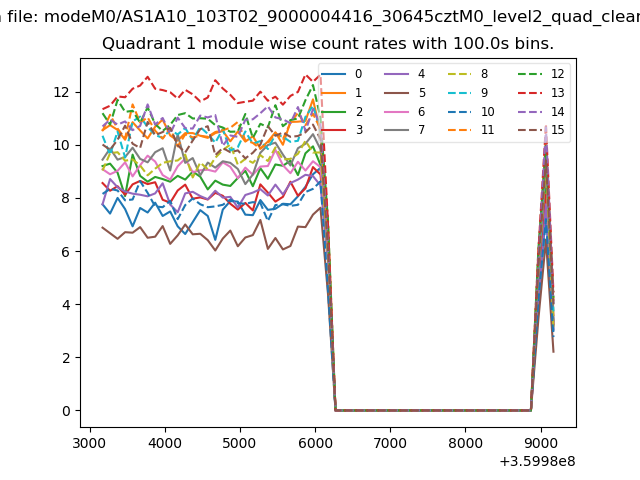

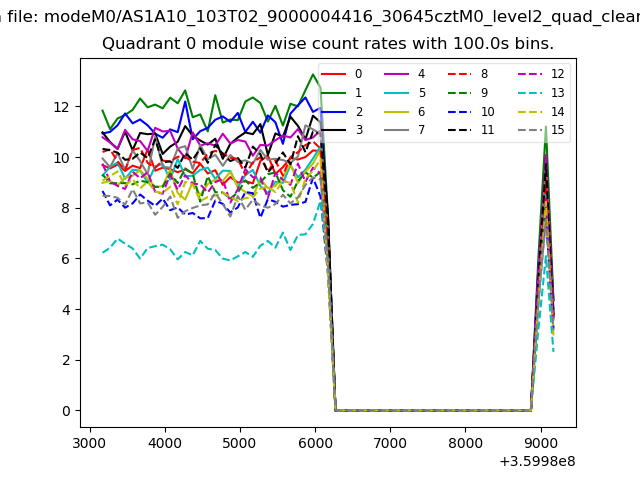

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

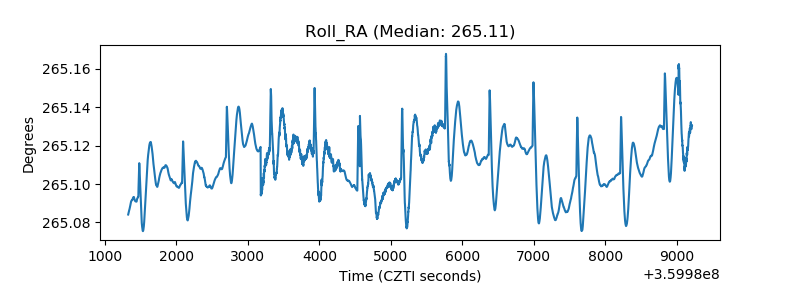

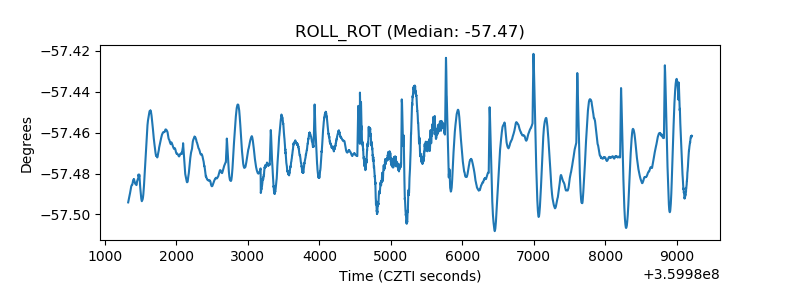

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

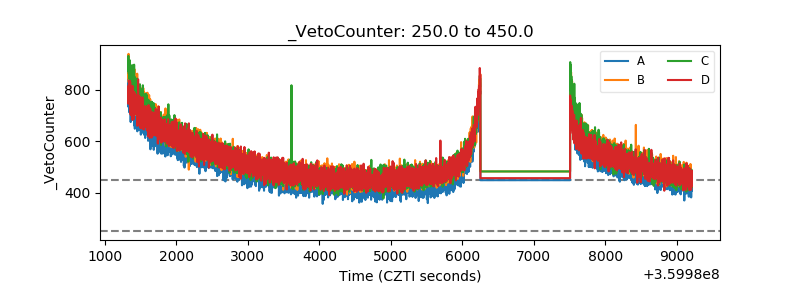

| Veto Counter |  |
