| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_007T01_9000004418_30656cztM0_level2.evt | modeM0/AS1C05_007T01_9000004418_30656cztM0_level2_quad_clean.evt |
| Size (bytes) | 687,628,800 | 68,483,520 |
| Size | 655.8 MB | 65.3 MB |
| Events in quadrant A | 3,504,195 | 425,903 |
| Events in quadrant B | 5,263,214 | 425,633 |
| Events in quadrant C | 3,696,329 | 396,971 |
| Events in quadrant D | 7,927,262 | 375,639 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14189 | 2 |
| B | 0 | 19806 | 2 |
| C | 0 | 14776 | 2 |
| D | 0 | 28128 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6441 | 45 | 0.698649% |
| B | 6441 | 66 | 1.024686% |
| C | 6441 | 157 | 2.437510% |
| D | 6440 | 542 | 8.416149% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7691 | 6442 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7691 | 6442 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7691 | 6442 | 31 | 31 | 0.40% | 0.48% |  |
| D | 7690 | 6441 | 708 | 708 | 9.21% | 10.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 65699 | 369.95 | 883 | 870 | 175.2 |
| A | 0 | 13 | 19660 | 107.23 | 883 | 870 | 175.2 |
| A | 8 | 192 | 15767 | 85.01 | 883 | 870 | 175.2 |
| B | 6 | 159 | 1783847 | 10854.38 | 875 | 855 | 164.3 |
| B | 0 | 190 | 24912 | 146.45 | 875 | 855 | 164.3 |
| B | 12 | 111 | 19576 | 113.97 | 875 | 855 | 164.3 |
| C | 3 | 233 | 169394 | 879.52 | 829 | 838 | 191.6 |
| C | 14 | 238 | 138572 | 718.69 | 829 | 838 | 191.6 |
| C | 0 | 10 | 113763 | 589.24 | 829 | 838 | 191.6 |
| D | 8 | 195 | 4564789 | 21582.12 | 814 | 798 | 211.5 |
| D | 12 | 227 | 149657 | 703.92 | 814 | 798 | 211.5 |
| D | 13 | 249 | 32044 | 147.76 | 814 | 798 | 211.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

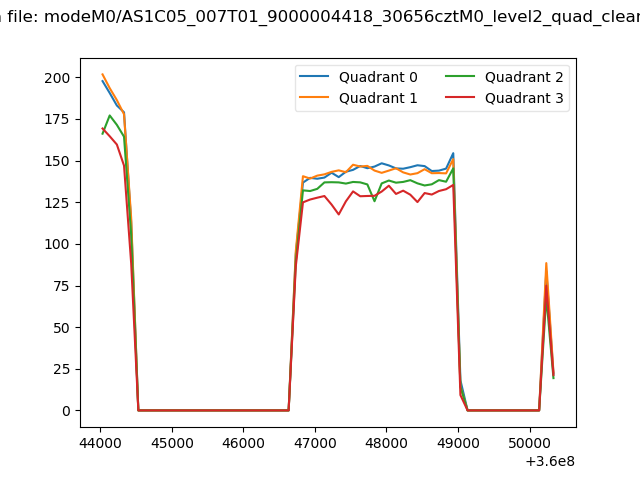

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

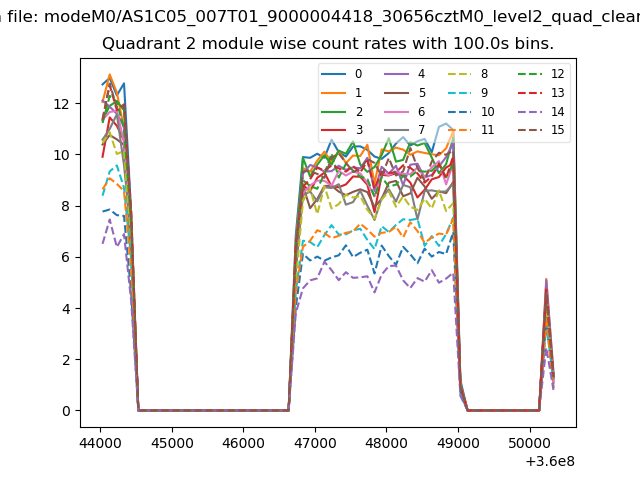

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

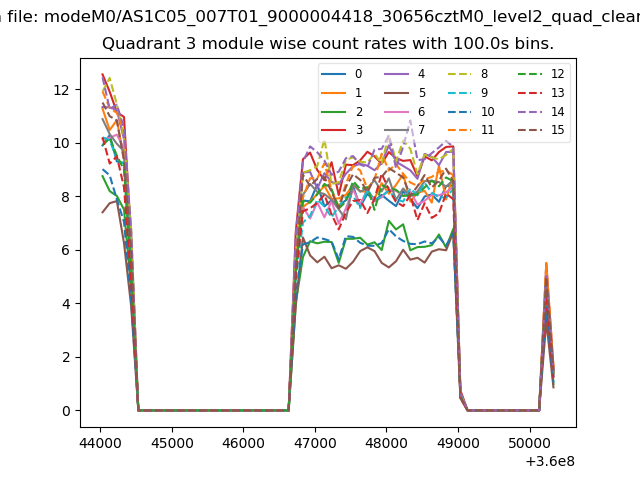

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

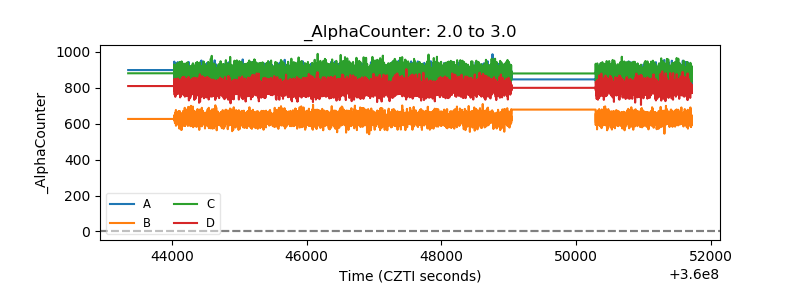

| Alpha Counter |  |

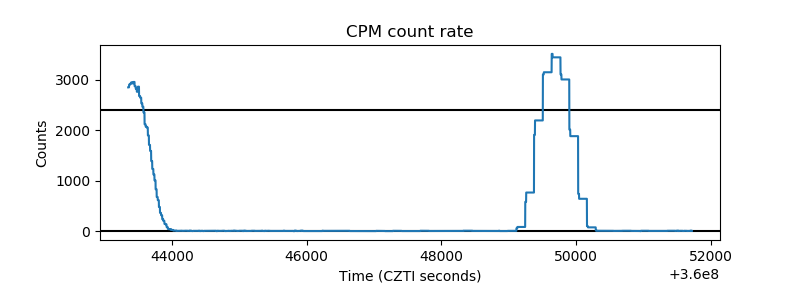

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

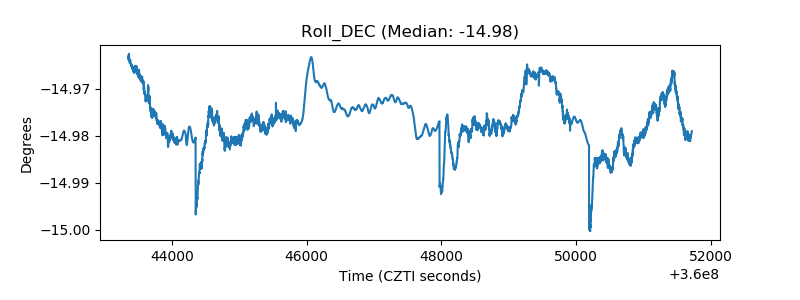

| _Roll_DEC |  |
| _Roll_RA |  |

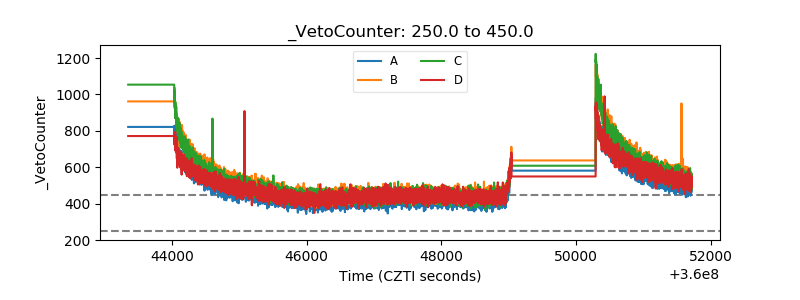

| Veto Counter |  |
