| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_007T01_9000004418_30657cztM0_level2.evt | modeM0/AS1C05_007T01_9000004418_30657cztM0_level2_quad_clean.evt |
| Size (bytes) | 703,160,640 | 64,932,480 |
| Size | 670.6 MB | 61.9 MB |
| Events in quadrant A | 3,806,615 | 399,388 |
| Events in quadrant B | 5,228,070 | 401,471 |
| Events in quadrant C | 3,778,310 | 374,697 |
| Events in quadrant D | 8,060,999 | 353,230 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14997 | 2 |
| B | 0 | 19623 | 2 |
| C | 0 | 15175 | 2 |
| D | 0 | 28395 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6265 | 109 | 1.739824% |
| B | 6266 | 58 | 0.925630% |
| C | 6266 | 118 | 1.883179% |
| D | 6266 | 633 | 10.102139% |

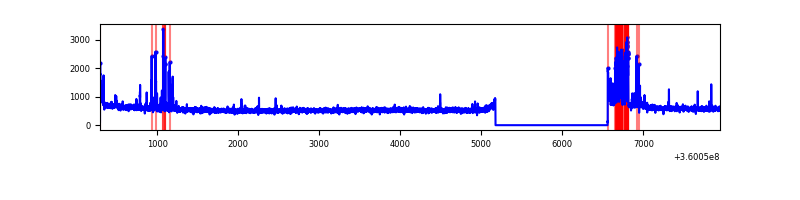

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7650 | 6266 | 66 | 66 | 0.86% | 1.05% |  |
| B | 7651 | 6267 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7651 | 6267 | 38 | 38 | 0.50% | 0.61% |  |
| D | 7651 | 6267 | 735 | 735 | 9.61% | 11.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 257985 | 1471.84 | 898 | 886 | 174.7 |
| A | 12 | 96 | 70045 | 395.92 | 898 | 886 | 174.7 |
| A | 8 | 192 | 15338 | 82.73 | 898 | 886 | 174.7 |
| B | 6 | 159 | 1690912 | 10242.67 | 895 | 877 | 165.0 |
| B | 12 | 111 | 19374 | 112.1 | 895 | 877 | 165.0 |
| B | 11 | 111 | 17847 | 102.85 | 895 | 877 | 165.0 |
| C | 3 | 233 | 188289 | 966.12 | 846 | 855 | 194.0 |
| C | 14 | 238 | 142671 | 730.98 | 846 | 855 | 194.0 |
| C | 0 | 10 | 114507 | 585.81 | 846 | 855 | 194.0 |
| D | 8 | 195 | 4728298 | 22322.5 | 837 | 819 | 211.8 |
| D | 13 | 249 | 78597 | 367.26 | 837 | 819 | 211.8 |
| D | 12 | 227 | 35110 | 161.92 | 837 | 819 | 211.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

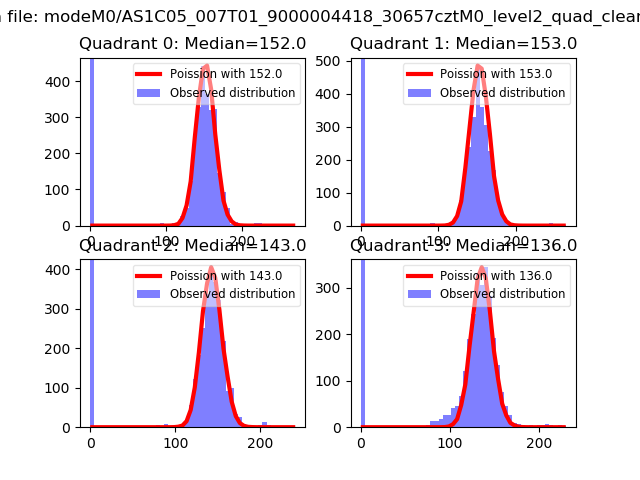

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

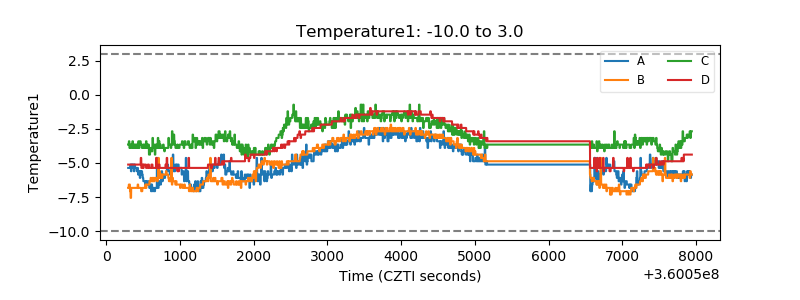

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

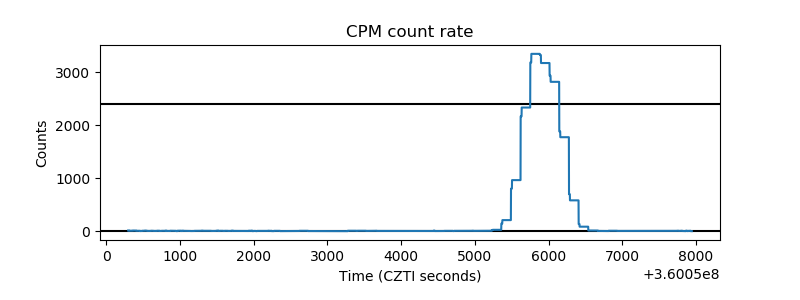

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

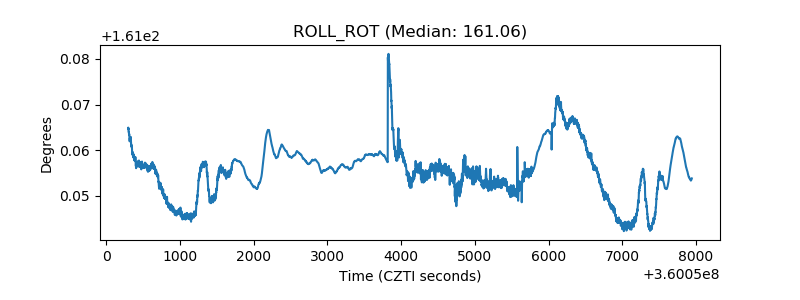

| _ROLL_ROT |  |

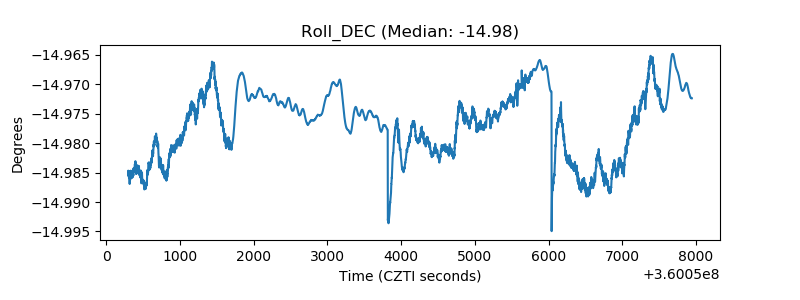

| _Roll_DEC |  |
| _Roll_RA |  |

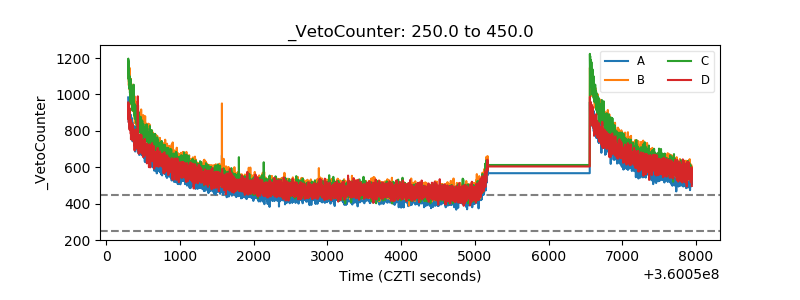

| Veto Counter |  |
