| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T78_9000004420_30661cztM0_level2.evt | modeM0/AS1A10_094T78_9000004420_30661cztM0_level2_quad_clean.evt |
| Size (bytes) | 654,868,800 | 125,366,400 |
| Size | 624.5 MB | 119.6 MB |
| Events in quadrant A | 3,239,391 | 876,806 |
| Events in quadrant B | 4,815,525 | 866,329 |
| Events in quadrant C | 3,550,764 | 836,653 |
| Events in quadrant D | 7,799,773 | 775,238 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13688 | 1 |
| B | 0 | 19142 | 1 |
| C | 0 | 14593 | 1 |
| D | 0 | 27583 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6331 | 85 | 1.342600% |
| B | 6332 | 131 | 2.068857% |
| C | 6332 | 124 | 1.958307% |
| D | 6331 | 846 | 13.362818% |

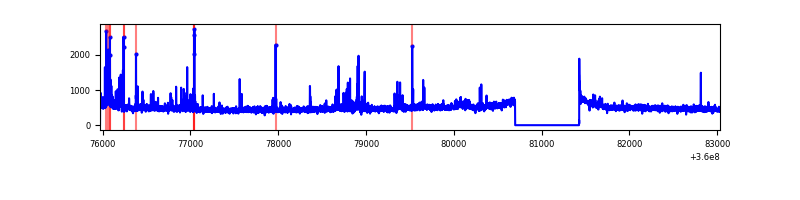

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7061 | 6332 | 12 | 12 | 0.17% | 0.19% |  |
| B | 7062 | 6333 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7062 | 6333 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7061 | 6332 | 870 | 870 | 12.32% | 13.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 217889 | 1397.64 | 780 | 766 | 155.3 |
| A | 13 | 254 | 11958 | 72.04 | 780 | 766 | 155.3 |
| A | 3 | 137 | 7444 | 42.99 | 780 | 766 | 155.3 |
| B | 6 | 159 | 1755576 | 12227.91 | 763 | 746 | 143.5 |
| B | 0 | 230 | 31422 | 213.75 | 763 | 746 | 143.5 |
| B | 0 | 190 | 18657 | 124.81 | 763 | 746 | 143.5 |
| C | 3 | 233 | 505314 | 2979.41 | 735 | 738 | 169.4 |
| C | 14 | 238 | 122248 | 717.49 | 735 | 738 | 169.4 |
| C | 10 | 22 | 22935 | 131.07 | 735 | 738 | 169.4 |
| D | 8 | 195 | 3626912 | 19242.26 | 716 | 703 | 188.5 |
| D | 13 | 249 | 601463 | 3187.9 | 716 | 703 | 188.5 |
| D | 10 | 253 | 308266 | 1632.06 | 716 | 703 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

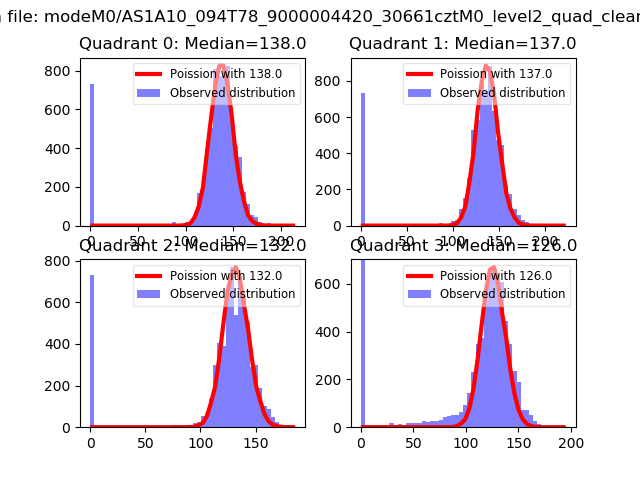

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

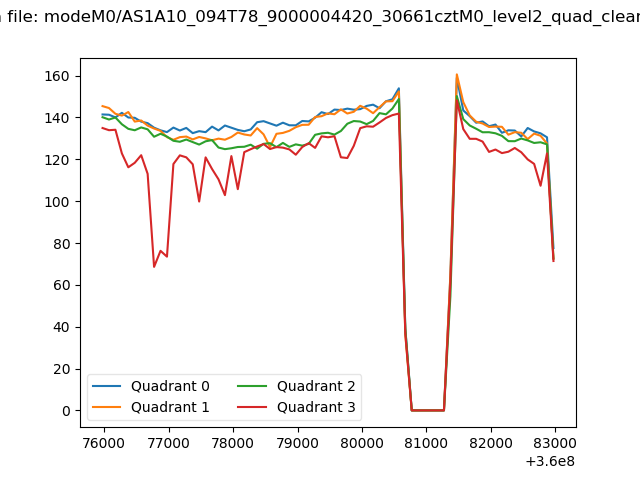

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

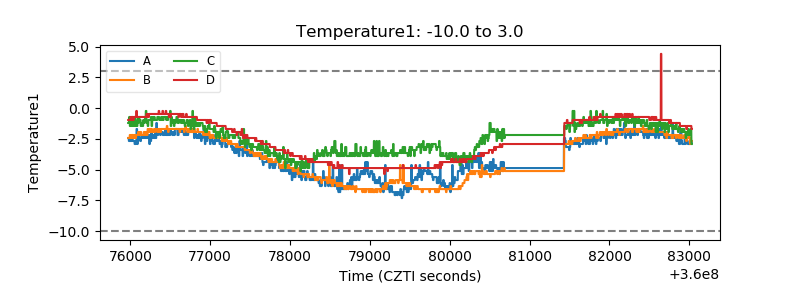

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

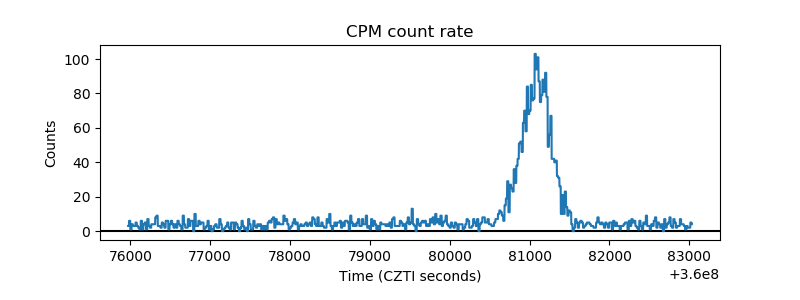

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

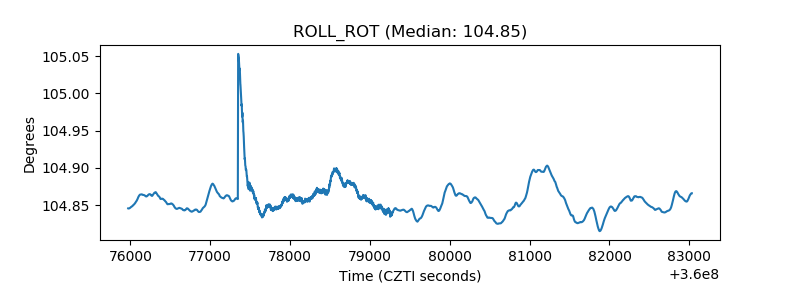

| _ROLL_ROT |  |

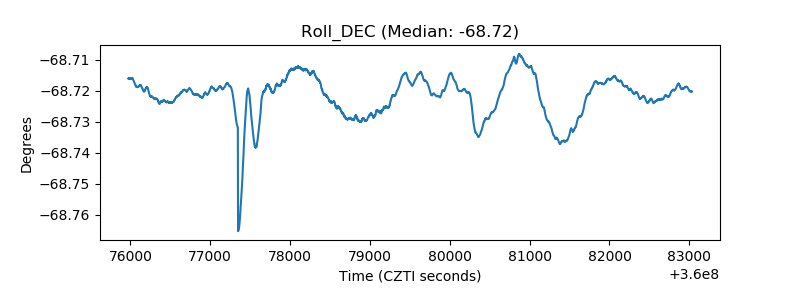

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
