| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T78_9000004420_30662cztM0_level2.evt | modeM0/AS1A10_094T78_9000004420_30662cztM0_level2_quad_clean.evt |
| Size (bytes) | 750,124,800 | 128,782,080 |
| Size | 715.4 MB | 122.8 MB |
| Events in quadrant A | 3,213,254 | 903,058 |
| Events in quadrant B | 5,130,359 | 890,058 |
| Events in quadrant C | 3,618,949 | 861,149 |
| Events in quadrant D | 10,299,957 | 775,132 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13919 | 1 |
| B | 0 | 20351 | 1 |
| C | 0 | 14969 | 1 |
| D | 0 | 35335 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6751 | 78 | 1.155384% |
| B | 6752 | 124 | 1.836493% |
| C | 6752 | 117 | 1.732820% |
| D | 6751 | 1587 | 23.507628% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

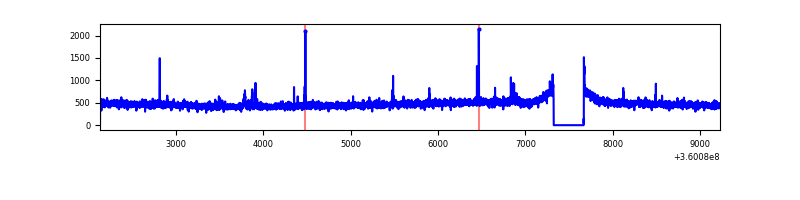

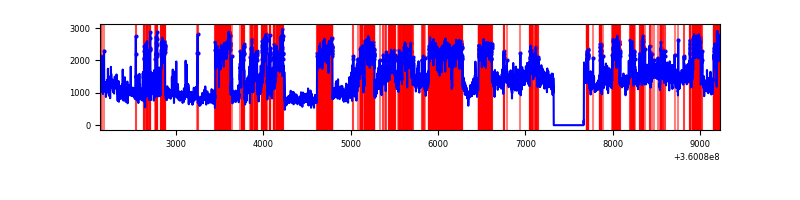

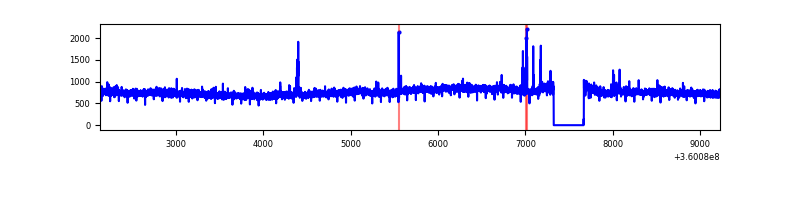

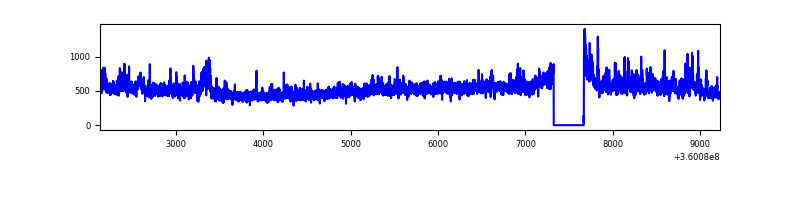

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7096 | 6752 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7097 | 6753 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7097 | 6753 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7096 | 6752 | 1604 | 1604 | 22.60% | 23.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 53016 | 316.92 | 818 | 800 | 164.8 |
| A | 13 | 254 | 11877 | 67.23 | 818 | 800 | 164.8 |
| A | 3 | 137 | 8089 | 44.24 | 818 | 800 | 164.8 |
| B | 6 | 159 | 1933945 | 12717.1 | 800 | 781 | 152.0 |
| B | 4 | 171 | 22931 | 145.71 | 800 | 781 | 152.0 |
| B | 12 | 111 | 18542 | 116.84 | 800 | 781 | 152.0 |
| C | 3 | 233 | 451877 | 2510.27 | 773 | 778 | 179.7 |
| C | 14 | 238 | 128167 | 708.89 | 773 | 778 | 179.7 |
| C | 2 | 114 | 15814 | 83.67 | 773 | 778 | 179.7 |
| D | 8 | 195 | 5243032 | 27189.84 | 740 | 725 | 192.8 |
| D | 12 | 227 | 1086874 | 5633.44 | 740 | 725 | 192.8 |
| D | 12 | 79 | 670662 | 3474.71 | 740 | 725 | 192.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

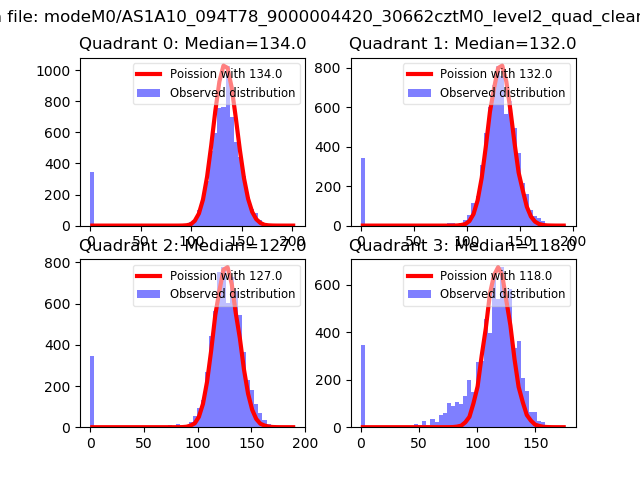

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

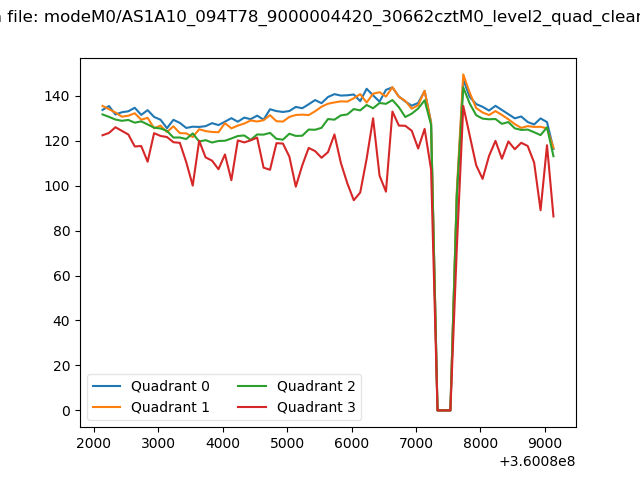

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

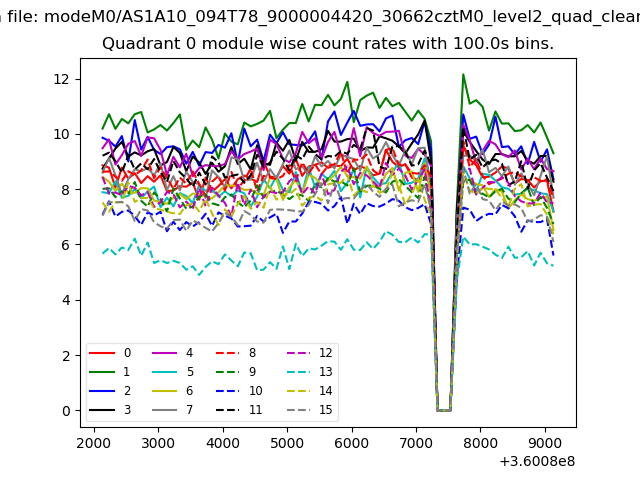

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

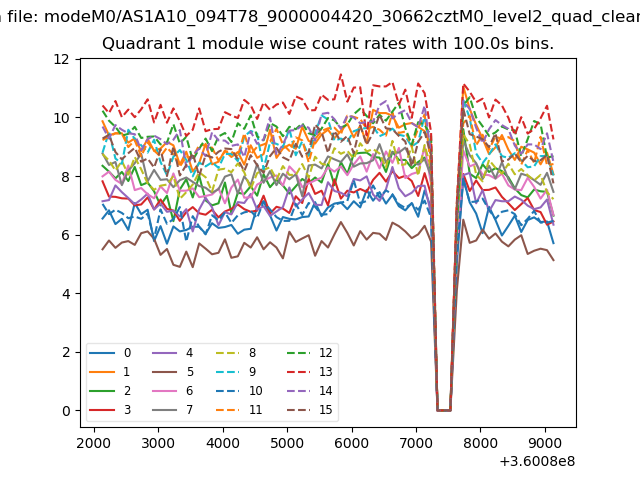

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

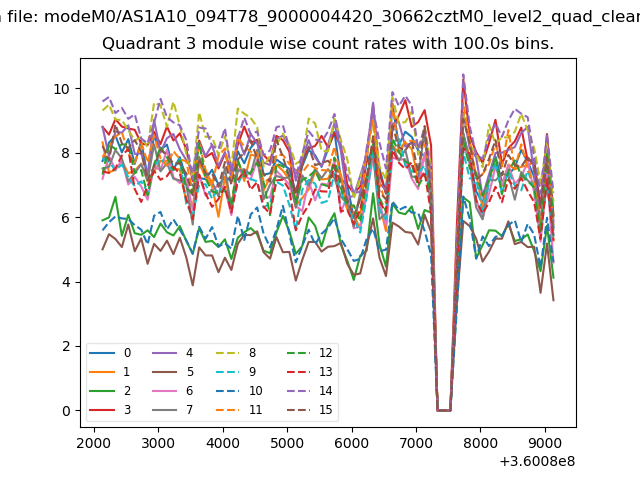

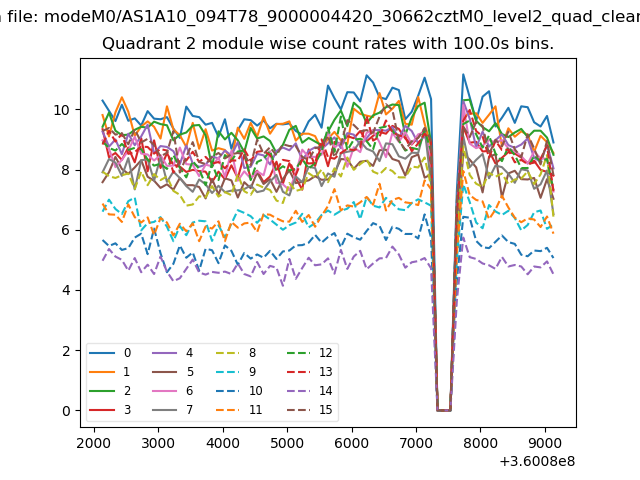

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

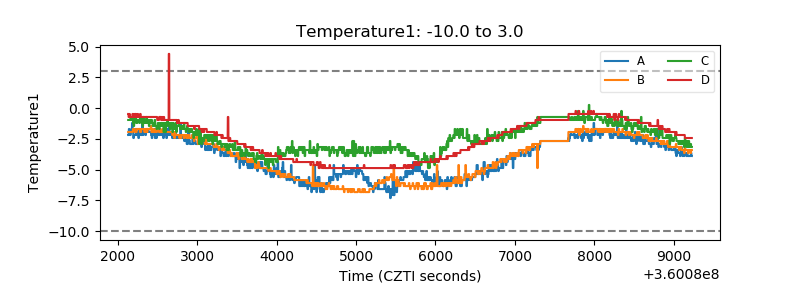

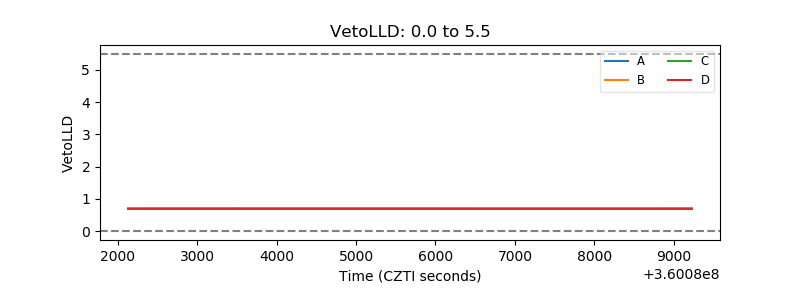

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

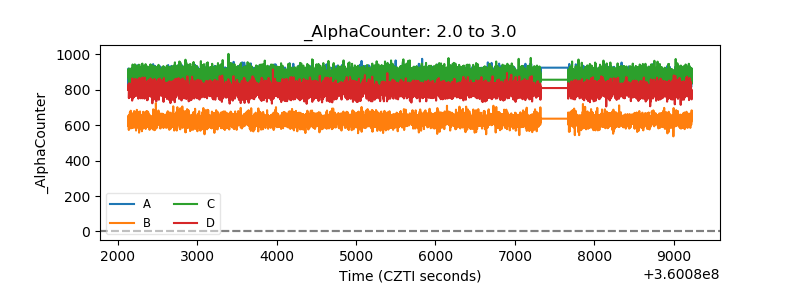

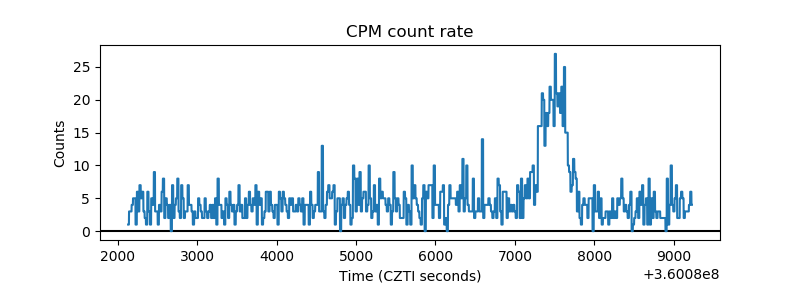

| Alpha Counter |  |
| _CPM_Rate |  |

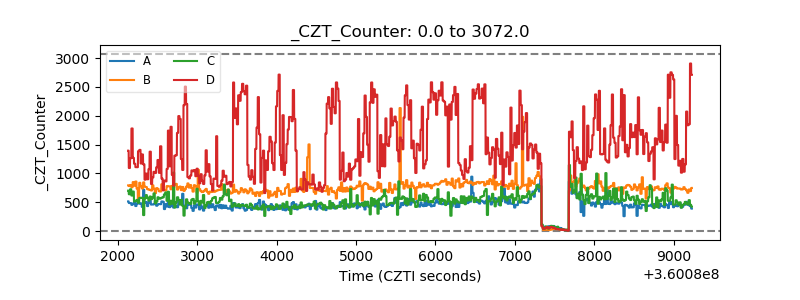

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

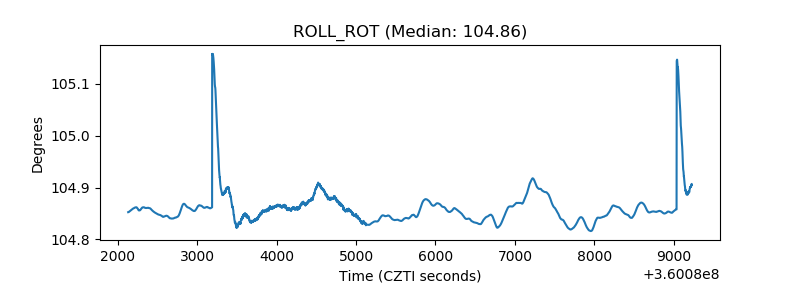

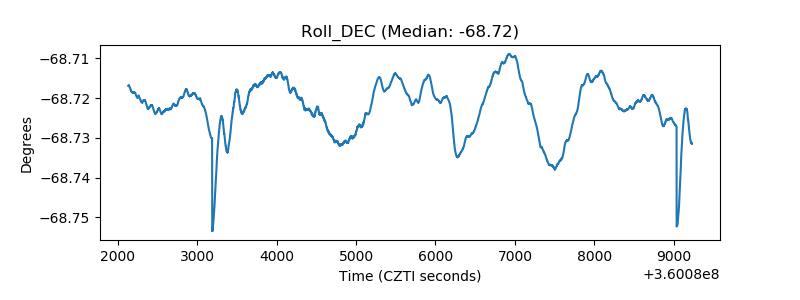

| _ROLL_ROT |  |
| _Roll_DEC |  |

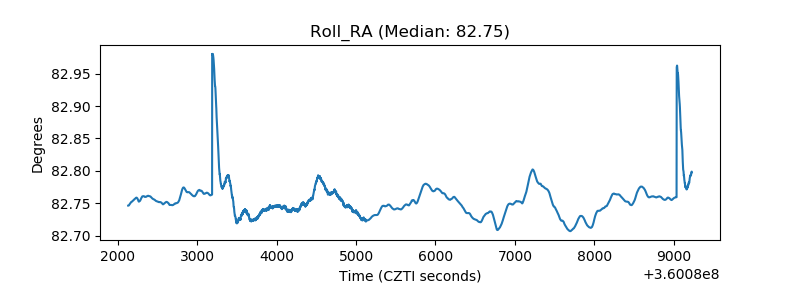

| _Roll_RA |  |
| Veto Counter |  |
