| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T78_9000004420_30663cztM0_level2.evt | modeM0/AS1A10_094T78_9000004420_30663cztM0_level2_quad_clean.evt |
| Size (bytes) | 833,348,160 | 134,360,640 |
| Size | 794.7 MB | 128.1 MB |
| Events in quadrant A | 3,445,838 | 946,109 |
| Events in quadrant B | 5,570,732 | 926,270 |
| Events in quadrant C | 4,061,487 | 900,144 |
| Events in quadrant D | 11,675,589 | 795,302 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14964 | 1 |
| B | 0 | 22092 | 1 |
| C | 0 | 16642 | 1 |
| D | 0 | 39688 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7182 | 110 | 1.531607% |
| B | 7182 | 226 | 3.146756% |
| C | 7183 | 152 | 2.116107% |
| D | 7183 | 2040 | 28.400390% |

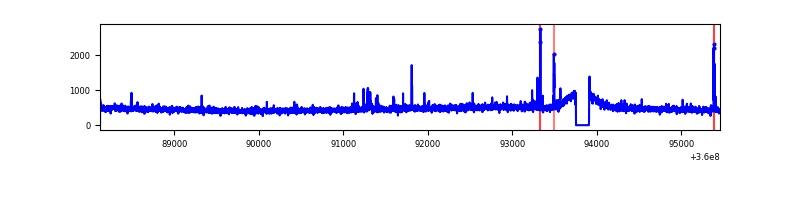

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7337 | 7183 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7337 | 7183 | 17 | 17 | 0.23% | 0.24% |  |
| C | 7338 | 7184 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7338 | 7184 | 2060 | 2060 | 28.07% | 28.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 69148 | 386.5 | 874 | 855 | 176.7 |
| A | 13 | 254 | 12997 | 68.72 | 874 | 855 | 176.7 |
| A | 3 | 137 | 8791 | 44.91 | 874 | 855 | 176.7 |
| B | 6 | 159 | 2027537 | 12492.78 | 852 | 830 | 162.2 |
| B | 5 | 172 | 63083 | 383.73 | 852 | 830 | 162.2 |
| B | 15 | 32 | 49225 | 298.31 | 852 | 830 | 162.2 |
| C | 3 | 233 | 681264 | 3565.89 | 824 | 828 | 190.8 |
| C | 14 | 238 | 134941 | 702.83 | 824 | 828 | 190.8 |
| C | 2 | 114 | 17207 | 85.84 | 824 | 828 | 190.8 |
| D | 8 | 195 | 6459787 | 31820.37 | 775 | 760 | 203.0 |
| D | 12 | 79 | 1039180 | 5115.77 | 775 | 760 | 203.0 |
| D | 12 | 227 | 516251 | 2539.56 | 775 | 760 | 203.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

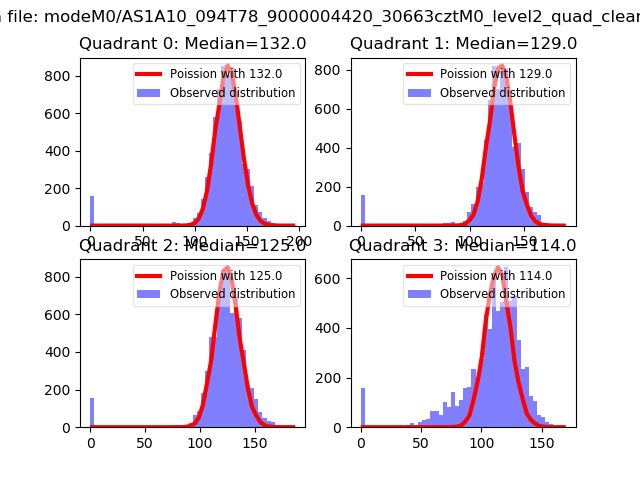

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

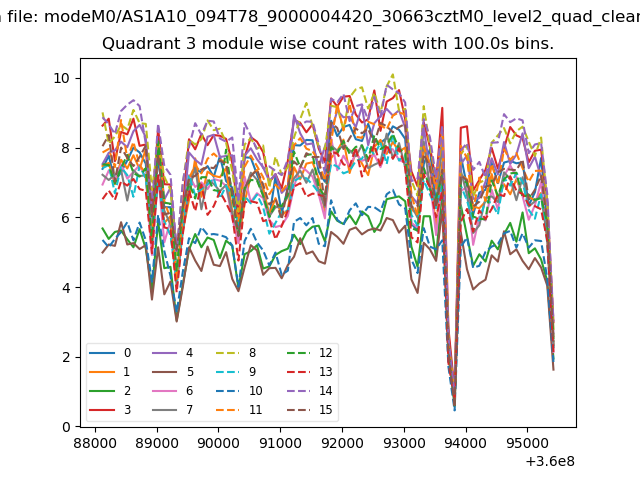

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

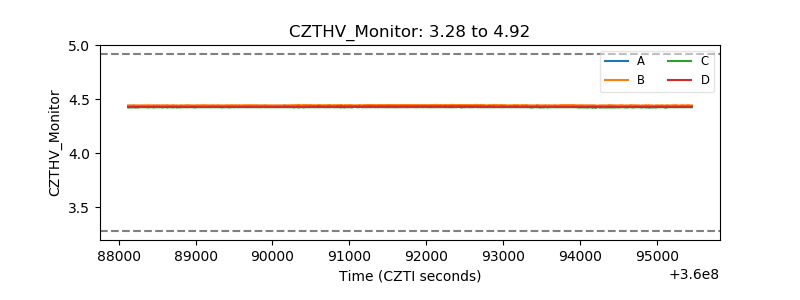

| CZT HV Monitor |  |
| D_VDD |  |

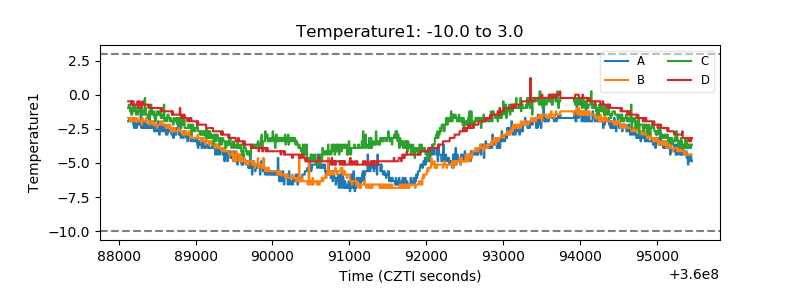

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

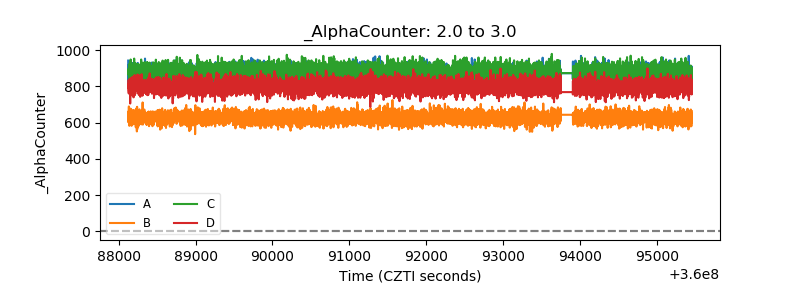

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

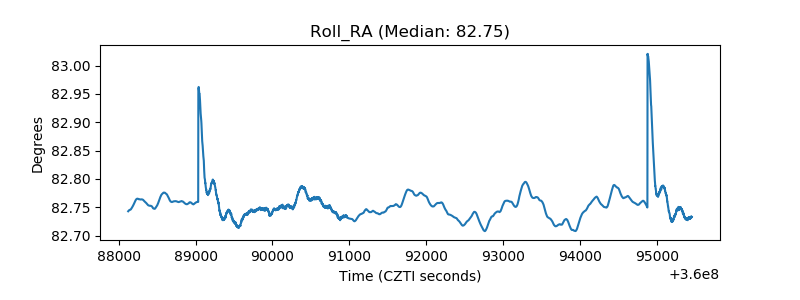

| _Roll_RA |  |

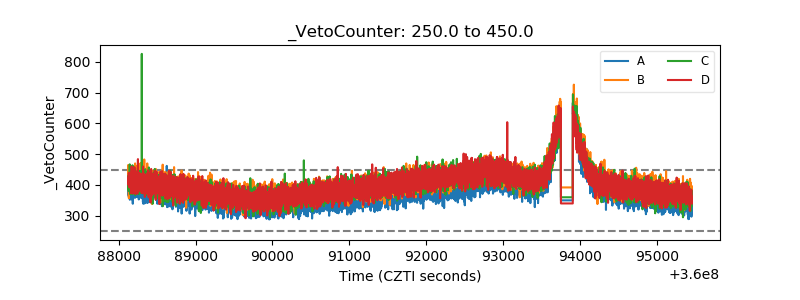

| Veto Counter |  |
