| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T80_9000004424_30676cztM0_level2.evt | modeM0/AS1A10_094T80_9000004424_30676cztM0_level2_quad_clean.evt |
| Size (bytes) | 712,823,040 | 119,983,680 |
| Size | 679.8 MB | 114.4 MB |
| Events in quadrant A | 3,212,705 | 848,828 |
| Events in quadrant B | 4,824,183 | 839,708 |
| Events in quadrant C | 3,815,979 | 810,396 |
| Events in quadrant D | 9,308,110 | 692,723 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13637 | 1 |
| B | 0 | 19133 | 1 |
| C | 0 | 15565 | 2 |
| D | 0 | 32165 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6327 | 150 | 2.370792% |
| B | 6328 | 197 | 3.113148% |
| C | 6327 | 171 | 2.702703% |
| D | 6327 | 1677 | 26.505453% |

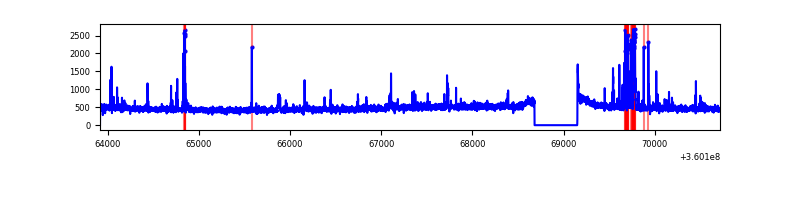

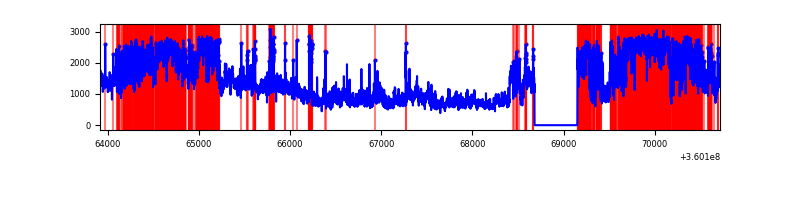

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6797 | 6328 | 42 | 42 | 0.62% | 0.66% |  |
| B | 6798 | 6329 | 4 | 4 | 0.06% | 0.06% |  |
| C | 6797 | 6328 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6797 | 6328 | 1708 | 1708 | 25.13% | 26.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 237735 | 1524.56 | 768 | 753 | 155.4 |
| A | 13 | 254 | 12461 | 75.32 | 768 | 753 | 155.4 |
| A | 8 | 192 | 10483 | 62.6 | 768 | 753 | 155.4 |
| B | 6 | 159 | 1776697 | 12417.53 | 753 | 735 | 143.0 |
| B | 4 | 81 | 71843 | 497.19 | 753 | 735 | 143.0 |
| B | 12 | 111 | 17594 | 117.88 | 753 | 735 | 143.0 |
| C | 3 | 233 | 794833 | 4712.99 | 729 | 731 | 168.5 |
| C | 14 | 238 | 120314 | 709.72 | 729 | 731 | 168.5 |
| C | 10 | 22 | 33359 | 193.65 | 729 | 731 | 168.5 |
| D | 8 | 195 | 3798526 | 24386.28 | 661 | 642 | 155.7 |
| D | 12 | 233 | 1709887 | 10975.09 | 661 | 642 | 155.7 |
| D | 1 | 52 | 581167 | 3727.56 | 661 | 642 | 155.7 |

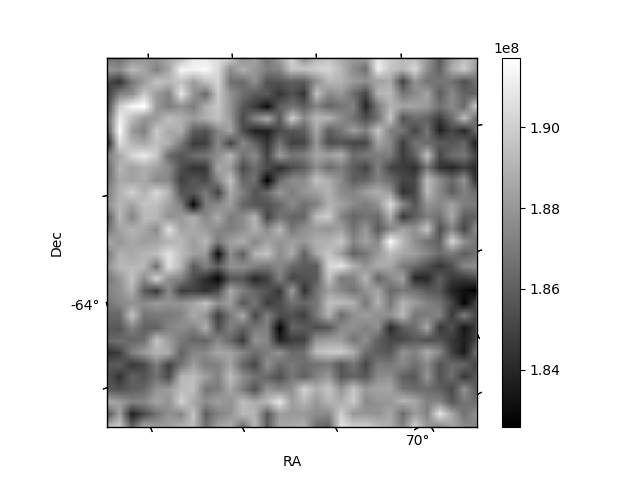

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

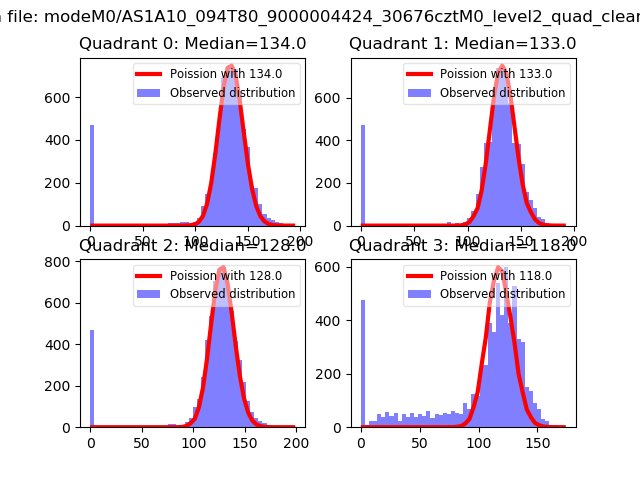

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

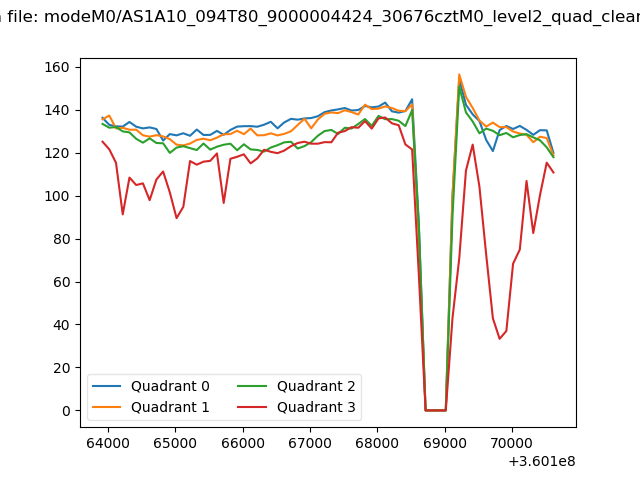

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

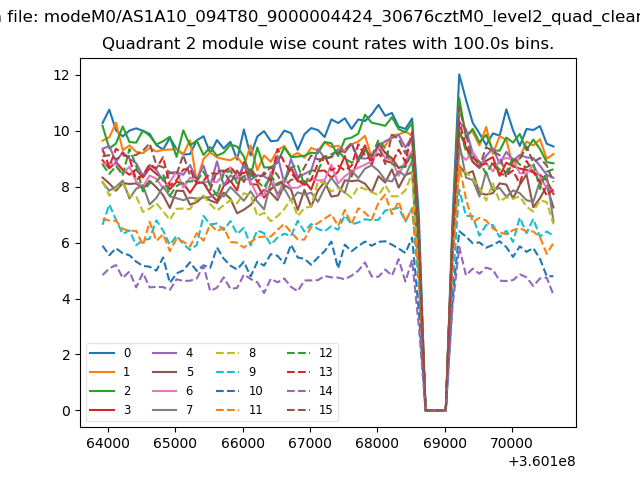

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

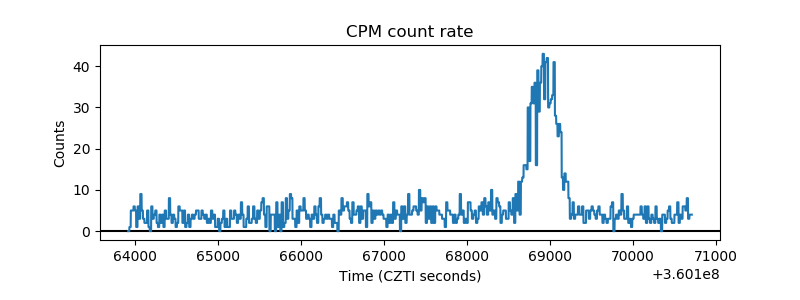

| _CPM_Rate |  |

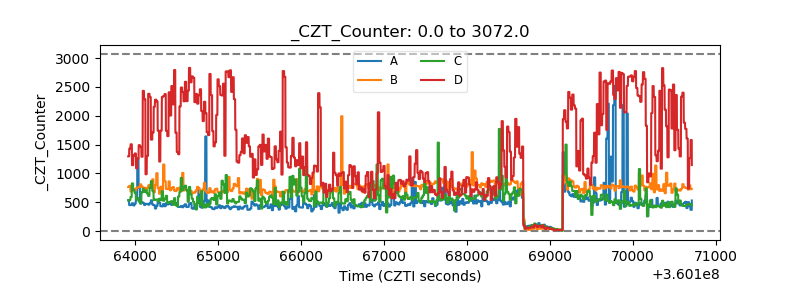

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
