| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T81_9000004426_30677cztM0_level2.evt | modeM0/AS1A10_094T81_9000004426_30677cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,840,320 | 99,501,120 |
| Size | 542.5 MB | 94.9 MB |
| Events in quadrant A | 2,705,398 | 699,914 |
| Events in quadrant B | 4,068,658 | 689,220 |
| Events in quadrant C | 2,940,069 | 671,447 |
| Events in quadrant D | 7,155,863 | 582,426 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11427 | 1 |
| B | 0 | 15957 | 1 |
| C | 0 | 12042 | 1 |
| D | 0 | 25008 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5277 | 125 | 2.368770% |
| B | 5277 | 176 | 3.335228% |
| C | 5277 | 150 | 2.842524% |
| D | 5277 | 1461 | 27.686185% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5467 | 5278 | 28 | 28 | 0.51% | 0.53% |  |
| B | 5467 | 5279 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5467 | 5279 | 1 | 1 | 0.02% | 0.02% |  |
| D | 5467 | 5278 | 1351 | 1351 | 24.71% | 25.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 181250 | 1369.97 | 652 | 637 | 131.8 |
| A | 13 | 254 | 10158 | 72.22 | 652 | 637 | 131.8 |
| A | 8 | 192 | 8805 | 61.96 | 652 | 637 | 131.8 |
| B | 6 | 159 | 1501993 | 12345.01 | 639 | 622 | 121.6 |
| B | 0 | 190 | 19037 | 151.41 | 639 | 622 | 121.6 |
| B | 12 | 111 | 15312 | 120.78 | 639 | 622 | 121.6 |
| C | 3 | 233 | 361735 | 2460.49 | 624 | 626 | 146.8 |
| C | 14 | 238 | 100758 | 682.27 | 624 | 626 | 146.8 |
| C | 0 | 10 | 15793 | 103.34 | 624 | 626 | 146.8 |
| D | 8 | 195 | 2519814 | 18471.89 | 575 | 559 | 136.4 |
| D | 12 | 218 | 1138829 | 8346.12 | 575 | 559 | 136.4 |
| D | 1 | 52 | 637816 | 4672.55 | 575 | 559 | 136.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

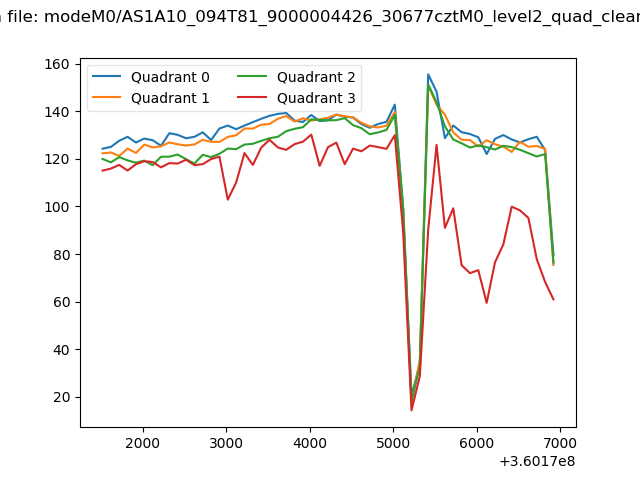

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

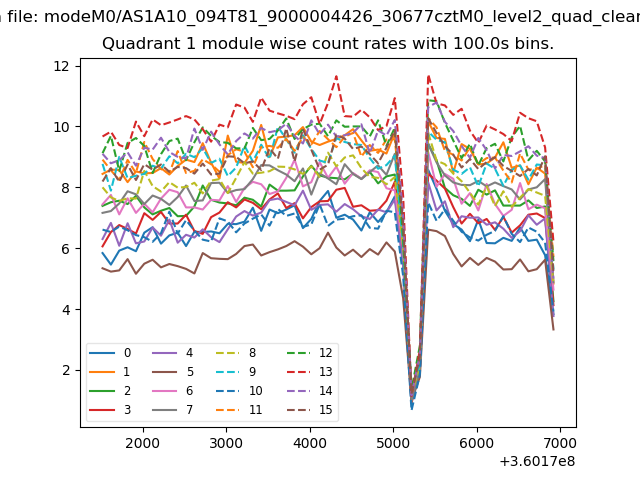

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

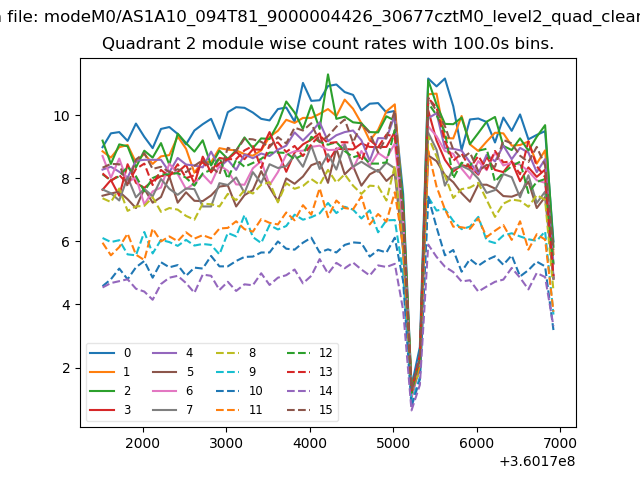

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

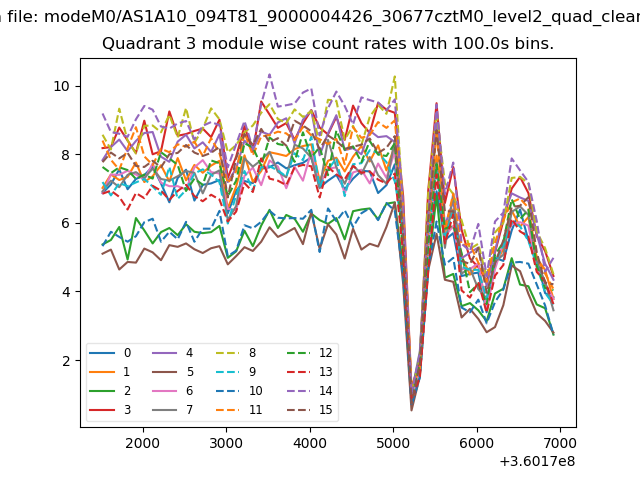

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

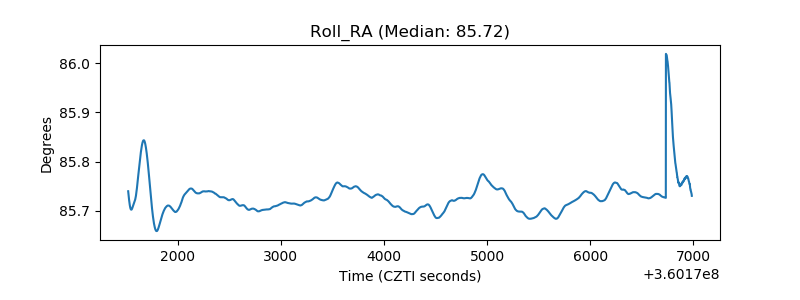

| _Roll_RA |  |

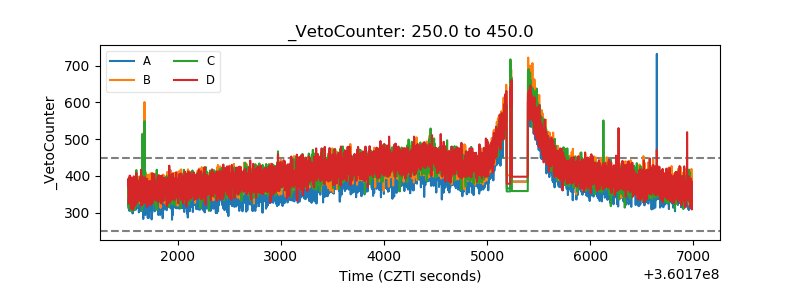

| Veto Counter |  |
