| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T14_9000004430_30701cztM0_level2.evt | modeM0/AS1A10_058T14_9000004430_30701cztM0_level2_quad_clean.evt |
| Size (bytes) | 717,765,120 | 68,065,920 |
| Size | 684.5 MB | 64.9 MB |
| Events in quadrant A | 3,615,776 | 424,865 |
| Events in quadrant B | 5,282,167 | 425,313 |
| Events in quadrant C | 3,713,273 | 409,152 |
| Events in quadrant D | 8,707,176 | 366,241 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14551 | 2 |
| B | 0 | 19473 | 4 |
| C | 0 | 15046 | 2 |
| D | 0 | 30271 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6236 | 63 | 1.010263% |
| B | 6235 | 152 | 2.437851% |
| C | 6235 | 153 | 2.453889% |
| D | 6235 | 605 | 9.703288% |

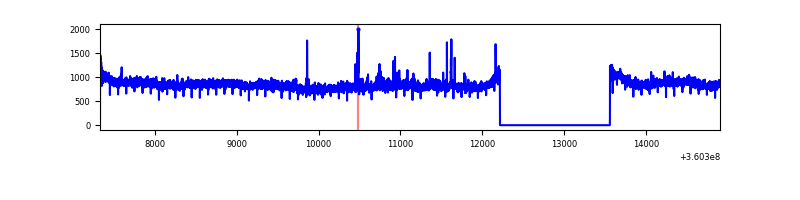

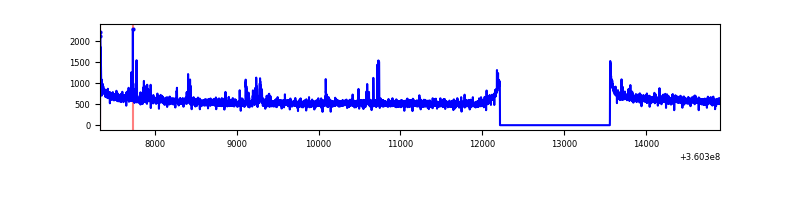

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 6235 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7579 | 6234 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7579 | 6234 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7580 | 6235 | 463 | 463 | 6.11% | 7.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 90444 | 499.06 | 910 | 896 | 179.4 |
| A | 8 | 192 | 17508 | 92.58 | 910 | 896 | 179.4 |
| A | 13 | 254 | 11070 | 56.7 | 910 | 896 | 179.4 |
| B | 6 | 159 | 1681101 | 10170.63 | 896 | 877 | 165.2 |
| B | 0 | 190 | 57363 | 341.92 | 896 | 877 | 165.2 |
| B | 12 | 111 | 19174 | 110.75 | 896 | 877 | 165.2 |
| C | 14 | 238 | 145892 | 737.4 | 870 | 879 | 196.7 |
| C | 3 | 233 | 101260 | 510.44 | 870 | 879 | 196.7 |
| C | 0 | 10 | 31523 | 155.83 | 870 | 879 | 196.7 |
| D | 8 | 195 | 5274790 | 24644.4 | 848 | 834 | 214.0 |
| D | 2 | 250 | 67350 | 310.82 | 848 | 834 | 214.0 |
| D | 12 | 218 | 53367 | 245.48 | 848 | 834 | 214.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

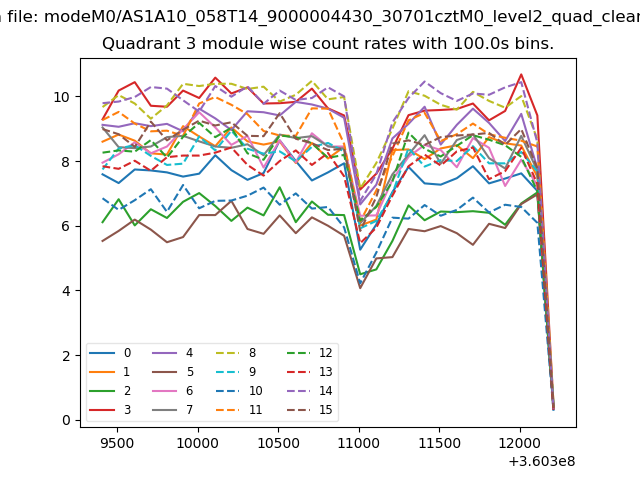

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

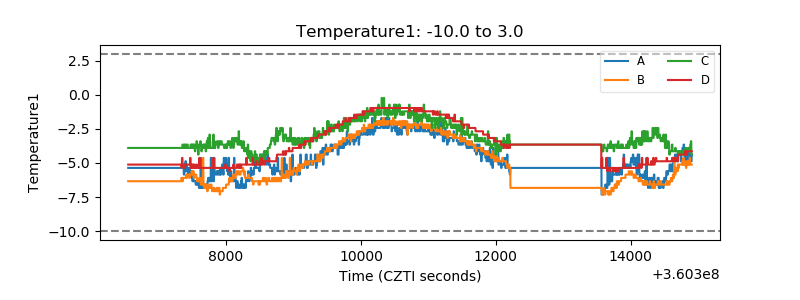

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

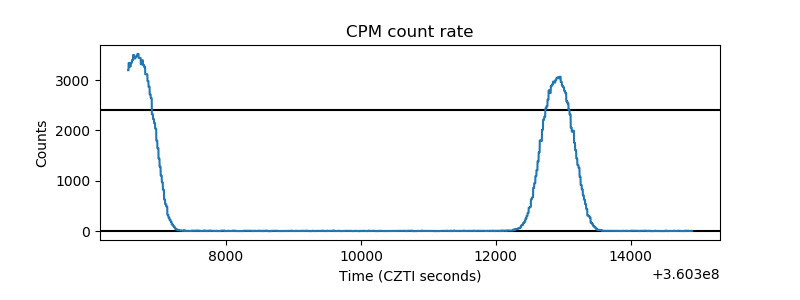

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

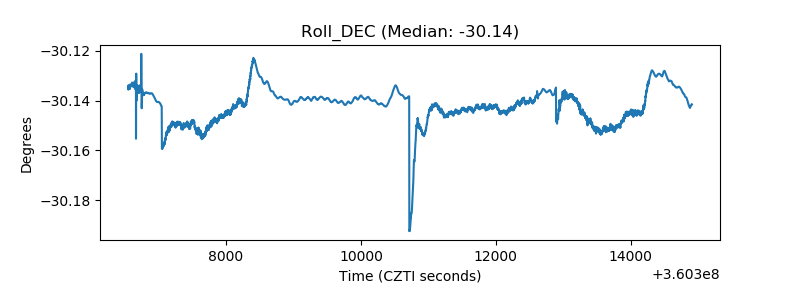

| _Roll_DEC |  |

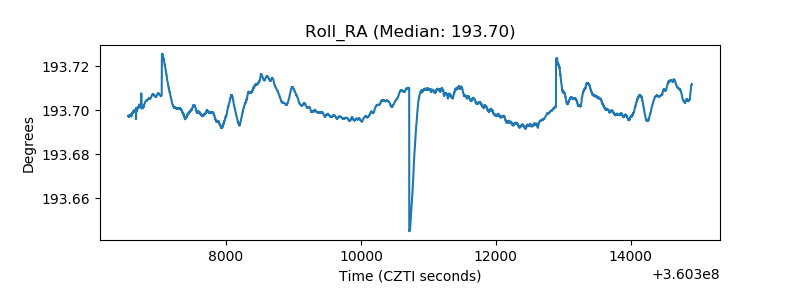

| _Roll_RA |  |

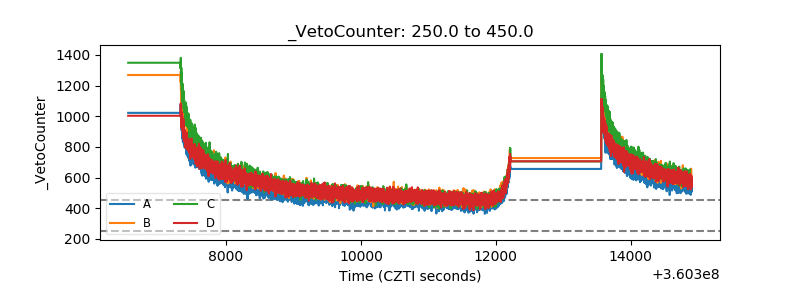

| Veto Counter |  |
