| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T14_9000004430_30710cztM0_level2.evt | modeM0/AS1A10_058T14_9000004430_30710cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,395,008,640 | 141,053,760 |
| Size | 1.3 GB | 134.5 MB |
| Events in quadrant A | 5,818,580 | 937,709 |
| Events in quadrant B | 9,509,430 | 921,472 |
| Events in quadrant C | 6,350,608 | 891,766 |
| Events in quadrant D | 19,790,105 | 716,179 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 236 | 0 |
| B | 0 | 236 | 0 |
| C | 0 | 236 | 0 |
| D | 0 | 236 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24908 | 2 |
| B | 0 | 36514 | 2 |
| C | 0 | 26153 | 2 |
| D | 0 | 66897 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11609 | 159 | 1.369627% |
| B | 11609 | 334 | 2.877078% |
| C | 11609 | 236 | 2.032906% |
| D | 11610 | 3711 | 31.963824% |

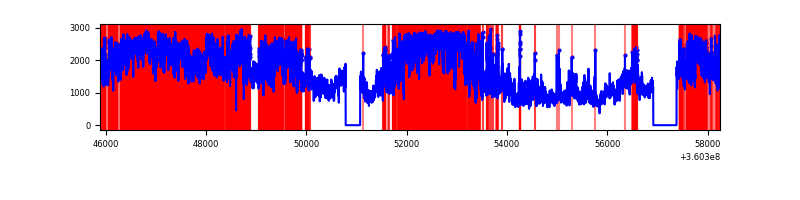

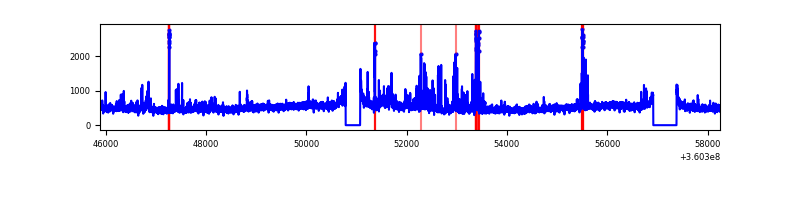

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12364 | 11610 | 37 | 37 | 0.30% | 0.32% |  |
| B | 12364 | 11609 | 114 | 114 | 0.92% | 0.98% |  |
| C | 12364 | 11611 | 44 | 44 | 0.36% | 0.38% |  |
| D | 12364 | 11610 | 4143 | 4143 | 33.51% | 35.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 285697 | 992.27 | 1428 | 1398 | 286.5 |
| A | 13 | 254 | 22891 | 75.02 | 1428 | 1398 | 286.5 |
| A | 8 | 192 | 21068 | 68.65 | 1428 | 1398 | 286.5 |
| B | 6 | 159 | 3377263 | 12464.13 | 1405 | 1369 | 270.8 |
| B | 6 | 36 | 189183 | 693.43 | 1405 | 1369 | 270.8 |
| B | 0 | 190 | 117267 | 427.91 | 1405 | 1369 | 270.8 |
| C | 3 | 233 | 493728 | 1561.43 | 1353 | 1364 | 315.3 |
| C | 10 | 22 | 305115 | 963.28 | 1353 | 1364 | 315.3 |
| C | 14 | 238 | 217772 | 686.29 | 1353 | 1364 | 315.3 |
| D | 8 | 195 | 11434732 | 38127.52 | 1230 | 1200 | 299.9 |
| D | 12 | 218 | 2415087 | 8049.62 | 1230 | 1200 | 299.9 |
| D | 1 | 52 | 384987 | 1279.82 | 1230 | 1200 | 299.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

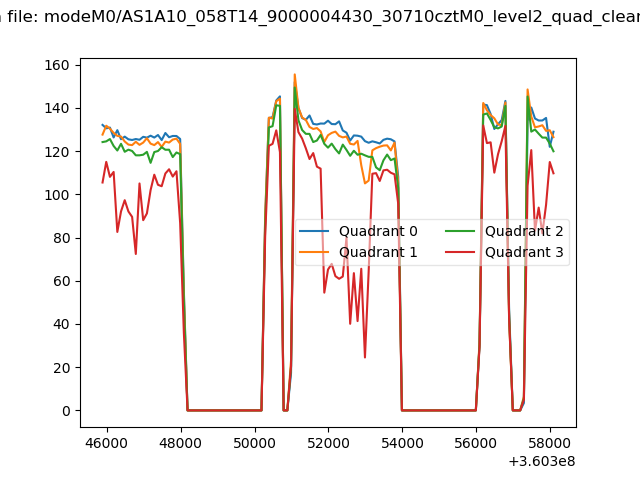

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

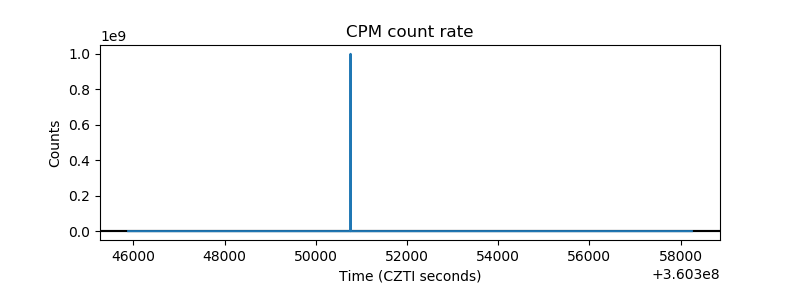

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

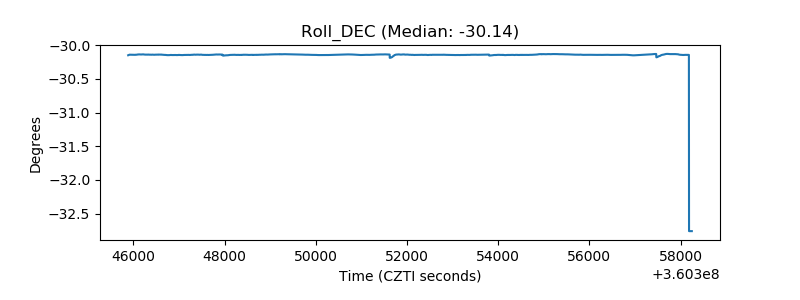

| _Roll_DEC |  |

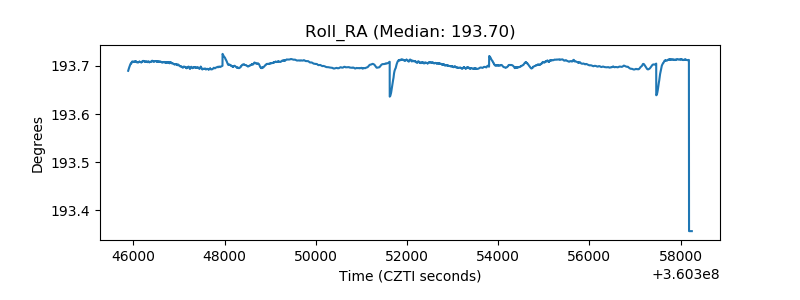

| _Roll_RA |  |
| Veto Counter |  |
