| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T44_9000004434_30713cztM0_level2.evt | modeM0/AS1A10_071T44_9000004434_30713cztM0_level2_quad_clean.evt |
| Size (bytes) | 678,553,920 | 75,006,720 |
| Size | 647.1 MB | 71.5 MB |
| Events in quadrant A | 4,023,251 | 467,944 |
| Events in quadrant B | 5,284,224 | 478,010 |
| Events in quadrant C | 3,804,851 | 449,672 |
| Events in quadrant D | 6,999,927 | 422,354 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16004 | 2 |
| B | 0 | 20018 | 2 |
| C | 0 | 15321 | 2 |
| D | 0 | 25489 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6495 | 229 | 3.525789% |
| B | 6495 | 94 | 1.447267% |
| C | 6495 | 135 | 2.078522% |
| D | 6494 | 329 | 5.066215% |

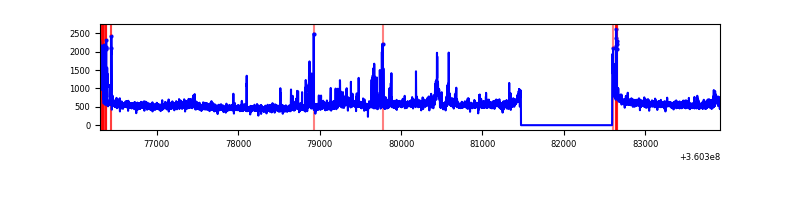

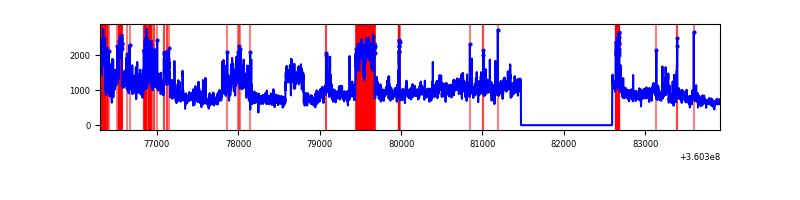

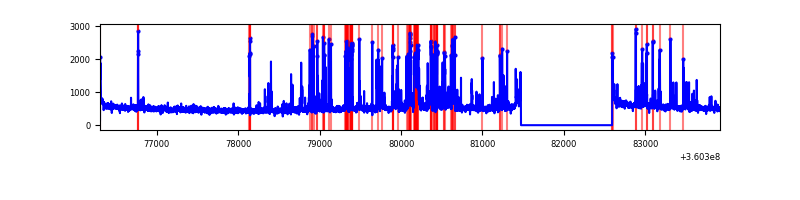

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 6495 | 131 | 131 | 1.72% | 2.02% |  |
| B | 7615 | 6495 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7615 | 6495 | 26 | 26 | 0.34% | 0.40% |  |
| D | 7614 | 6494 | 329 | 329 | 4.32% | 5.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 787846 | 4731.12 | 834 | 819 | 166.4 |
| A | 8 | 192 | 20645 | 119.18 | 834 | 819 | 166.4 |
| A | 13 | 254 | 10943 | 60.86 | 834 | 819 | 166.4 |
| B | 6 | 159 | 1847772 | 11497.02 | 837 | 817 | 160.6 |
| B | 6 | 36 | 59513 | 365.37 | 837 | 817 | 160.6 |
| B | 5 | 172 | 27368 | 165.28 | 837 | 817 | 160.6 |
| C | 3 | 233 | 364187 | 1937.0 | 796 | 801 | 187.6 |
| C | 14 | 238 | 128810 | 682.34 | 796 | 801 | 187.6 |
| C | 10 | 22 | 95892 | 506.88 | 796 | 801 | 187.6 |
| D | 8 | 195 | 3432103 | 16754.92 | 783 | 768 | 204.8 |
| D | 13 | 174 | 399659 | 1947.75 | 783 | 768 | 204.8 |
| D | 10 | 253 | 35773 | 170.93 | 783 | 768 | 204.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

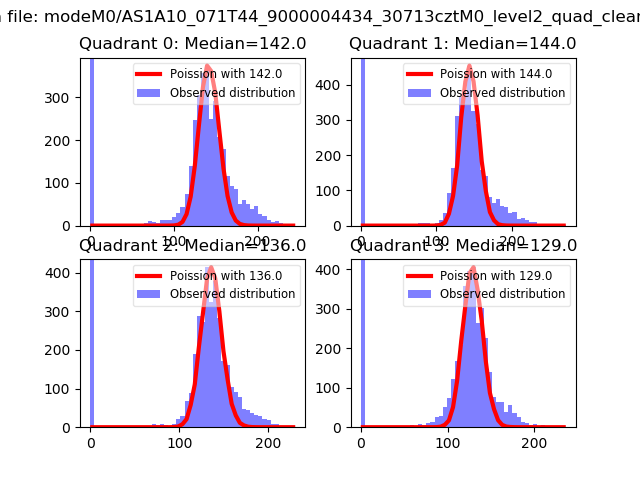

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

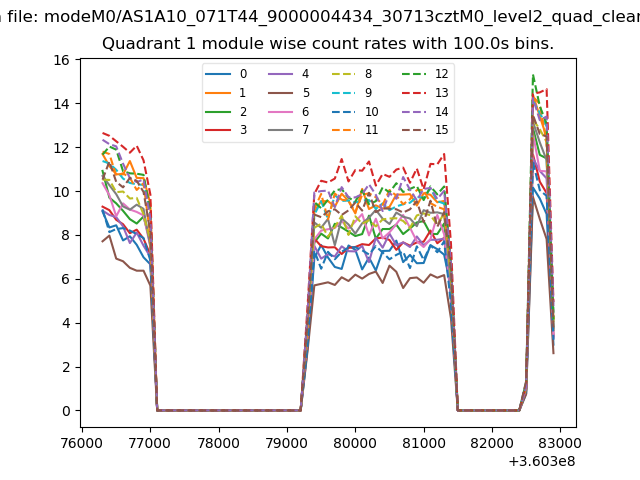

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

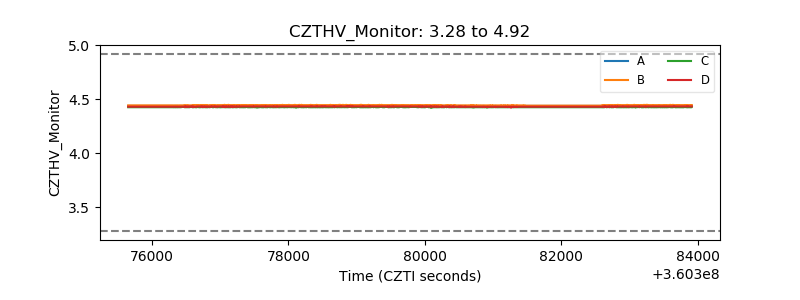

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

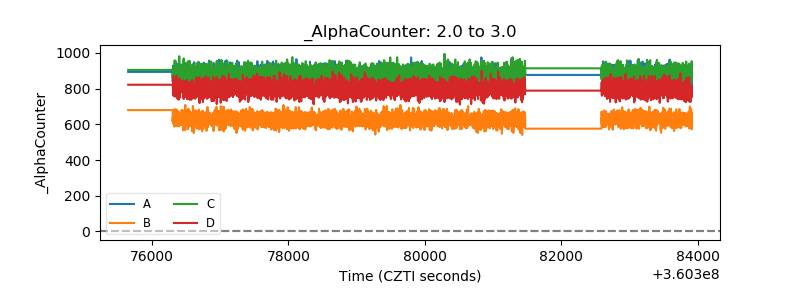

| Alpha Counter |  |
| _CPM_Rate |  |

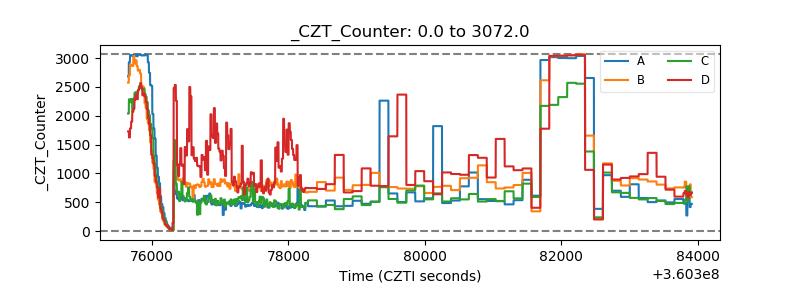

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
