| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T11_9000004436_30732cztM0_level2.evt | modeM0/AS1A10_071T11_9000004436_30732cztM0_level2_quad_clean.evt |
| Size (bytes) | 686,436,480 | 92,108,160 |
| Size | 654.6 MB | 87.8 MB |
| Events in quadrant A | 3,621,082 | 614,854 |
| Events in quadrant B | 5,336,809 | 612,435 |
| Events in quadrant C | 4,166,199 | 570,383 |
| Events in quadrant D | 7,231,546 | 543,161 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14579 | 2 |
| B | 0 | 19938 | 2 |
| C | 0 | 16707 | 2 |
| D | 0 | 25946 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6432 | 180 | 2.798507% |
| B | 6432 | 260 | 4.042289% |
| C | 6432 | 290 | 4.508706% |
| D | 6432 | 277 | 4.306592% |

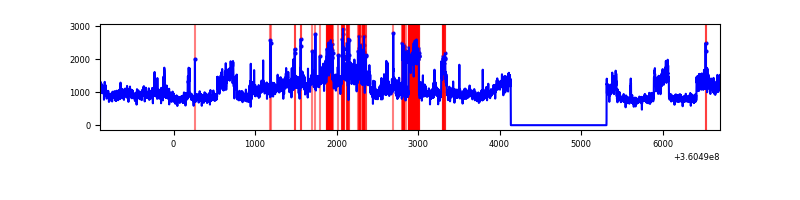

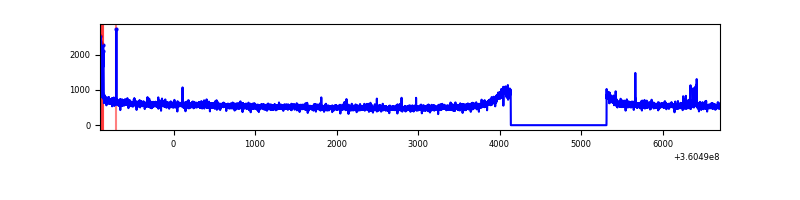

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7607 | 6432 | 11 | 11 | 0.14% | 0.17% |  |
| B | 7607 | 6432 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7607 | 6432 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7607 | 6432 | 204 | 204 | 2.68% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 32677 | 172.82 | 925 | 911 | 183.8 |
| A | 8 | 192 | 21610 | 112.61 | 925 | 911 | 183.8 |
| A | 13 | 254 | 11615 | 58.23 | 925 | 911 | 183.8 |
| B | 6 | 159 | 1769486 | 10374.62 | 901 | 884 | 170.5 |
| B | 12 | 111 | 20488 | 115.0 | 901 | 884 | 170.5 |
| B | 11 | 111 | 18503 | 103.35 | 901 | 884 | 170.5 |
| C | 3 | 233 | 509132 | 2538.11 | 858 | 863 | 200.3 |
| C | 14 | 238 | 140202 | 695.81 | 858 | 863 | 200.3 |
| C | 10 | 22 | 77208 | 381.24 | 858 | 863 | 200.3 |
| D | 8 | 195 | 3553408 | 15696.59 | 866 | 852 | 226.3 |
| D | 10 | 253 | 210691 | 927.15 | 866 | 852 | 226.3 |
| D | 2 | 250 | 77001 | 336.46 | 866 | 852 | 226.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

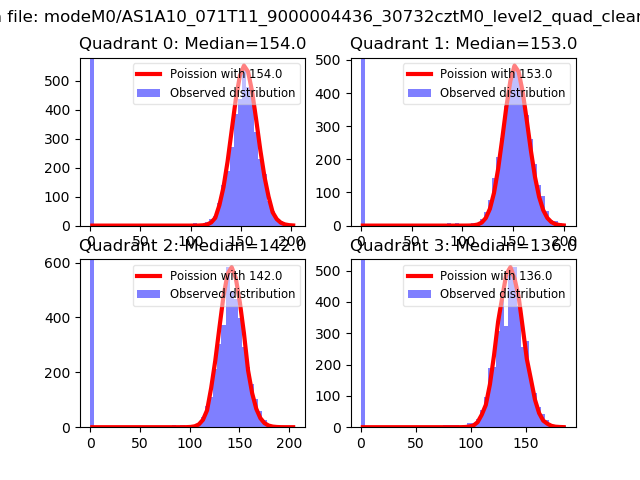

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

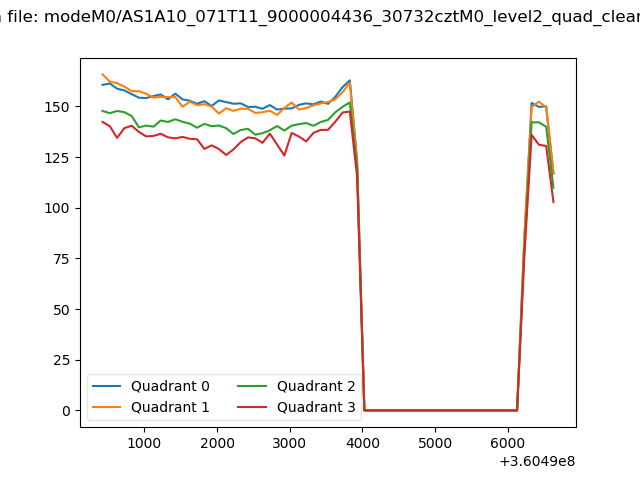

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

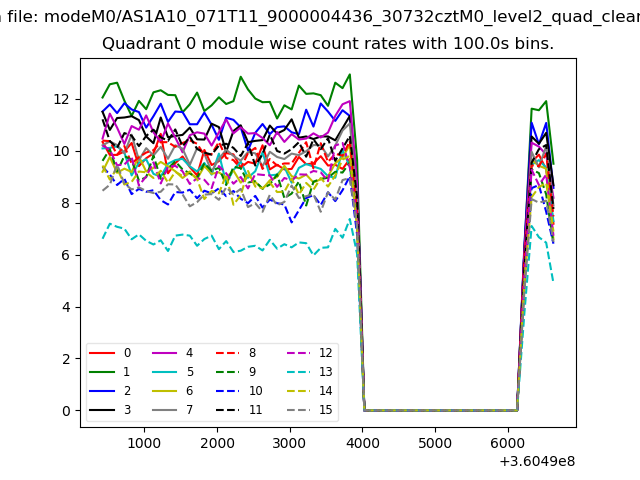

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

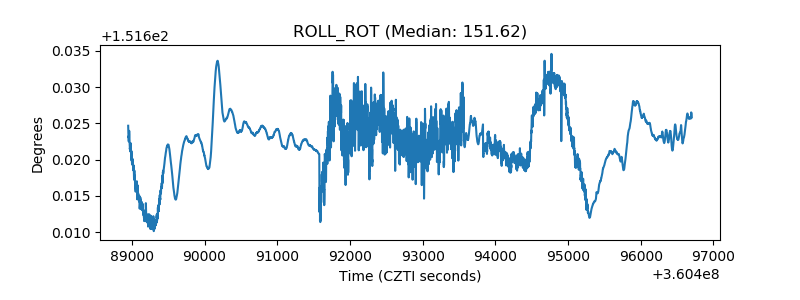

| _ROLL_ROT |  |

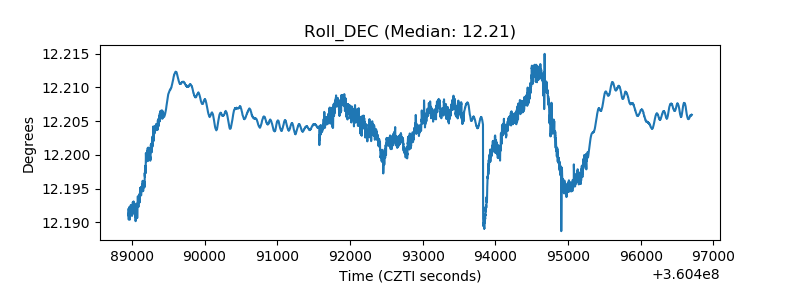

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
