| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T11_9000004436_30733cztM0_level2.evt | modeM0/AS1A10_071T11_9000004436_30733cztM0_level2_quad_clean.evt |
| Size (bytes) | 719,740,800 | 101,332,800 |
| Size | 686.4 MB | 96.6 MB |
| Events in quadrant A | 3,631,127 | 676,019 |
| Events in quadrant B | 5,567,532 | 670,855 |
| Events in quadrant C | 3,944,249 | 636,009 |
| Events in quadrant D | 8,182,873 | 598,438 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14851 | 2 |
| B | 0 | 21282 | 2 |
| C | 0 | 15865 | 2 |
| D | 0 | 29092 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6997 | 108 | 1.543519% |
| B | 6997 | 188 | 2.686866% |
| C | 6997 | 213 | 3.044162% |
| D | 6996 | 524 | 7.489994% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7967 | 6997 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7967 | 6997 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7967 | 6997 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7966 | 6996 | 516 | 516 | 6.48% | 7.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 20079 | 102.18 | 935 | 918 | 187.5 |
| A | 13 | 254 | 12402 | 61.24 | 935 | 918 | 187.5 |
| A | 3 | 137 | 9117 | 43.72 | 935 | 918 | 187.5 |
| B | 6 | 159 | 1945669 | 11110.39 | 912 | 891 | 175.0 |
| B | 12 | 111 | 21335 | 116.79 | 912 | 891 | 175.0 |
| B | 11 | 111 | 19595 | 106.85 | 912 | 891 | 175.0 |
| C | 3 | 233 | 349073 | 1704.34 | 877 | 883 | 204.3 |
| C | 14 | 238 | 141673 | 689.15 | 877 | 883 | 204.3 |
| C | 2 | 114 | 16360 | 75.76 | 877 | 883 | 204.3 |
| D | 8 | 195 | 4128396 | 18100.77 | 875 | 860 | 228.0 |
| D | 10 | 253 | 375017 | 1640.82 | 875 | 860 | 228.0 |
| D | 13 | 249 | 169156 | 738.04 | 875 | 860 | 228.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

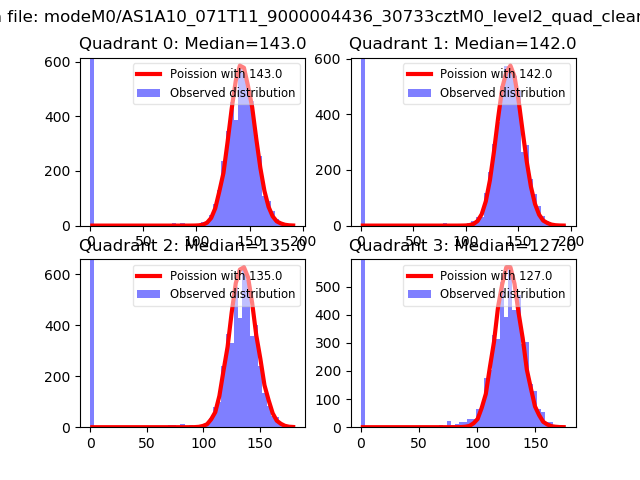

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

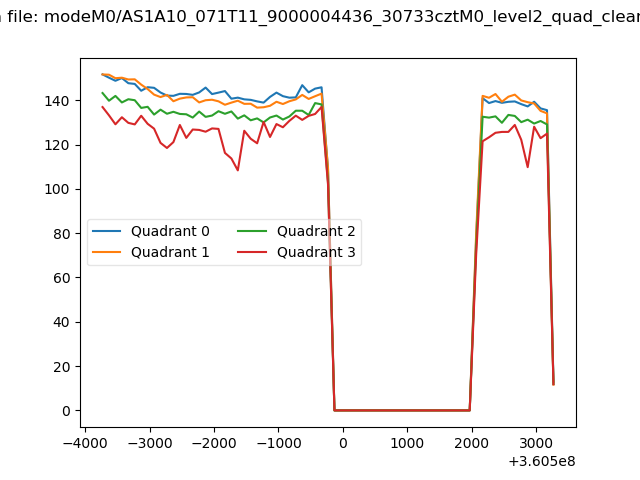

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

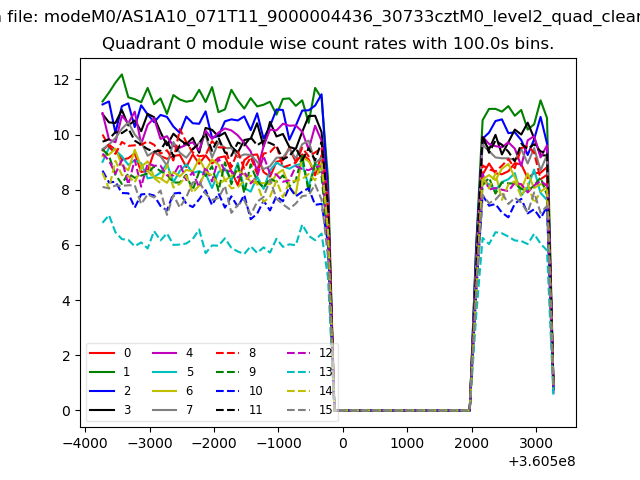

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

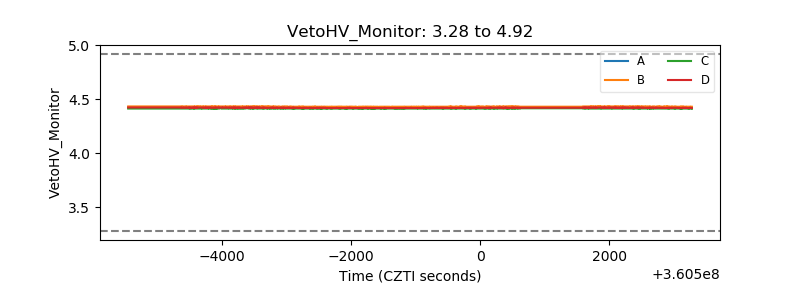

| Veto HV Monitor |  |
| Veto LLD |  |

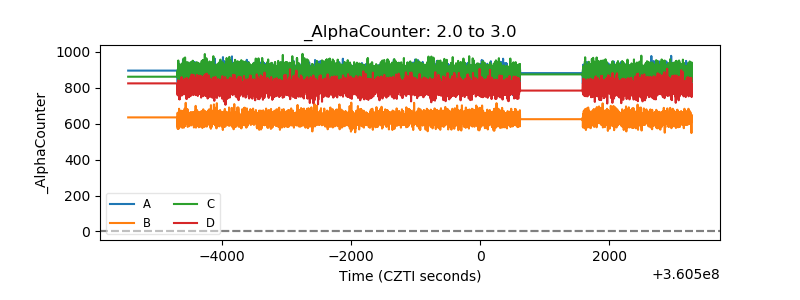

| Alpha Counter |  |

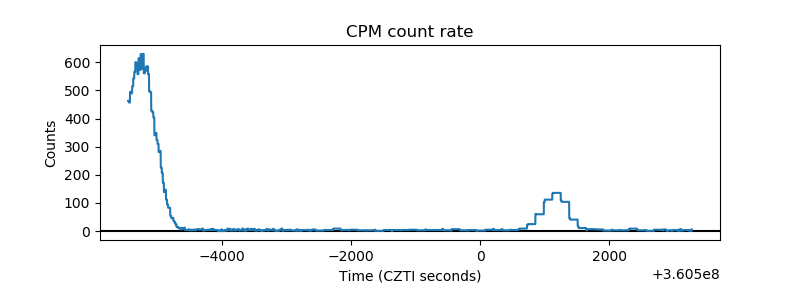

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

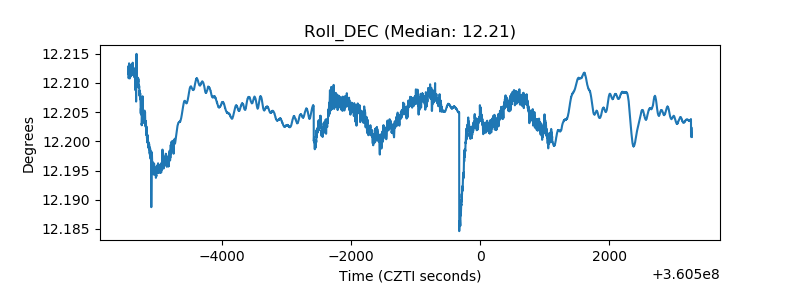

| _Roll_DEC |  |
| _Roll_RA |  |

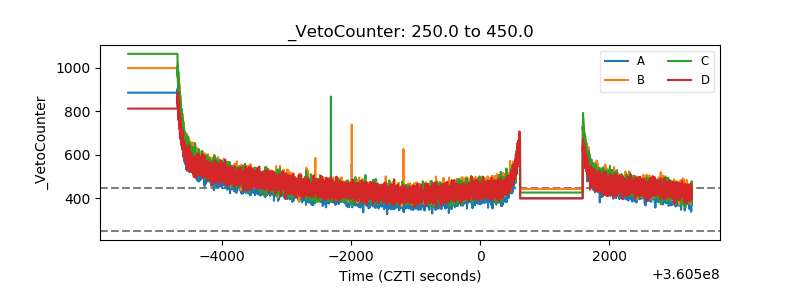

| Veto Counter |  |
