| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T35_9000004438_30748cztM0_level2.evt | modeM0/AS1A10_053T35_9000004438_30748cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,452,882,240 | 217,169,280 |
| Size | 1.4 GB | 207.1 MB |
| Events in quadrant A | 8,779,769 | 1,383,123 |
| Events in quadrant B | 13,565,192 | 1,390,909 |
| Events in quadrant C | 8,967,752 | 1,340,221 |
| Events in quadrant D | 11,565,049 | 1,313,402 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35991 | 3 |
| B | 0 | 52400 | 3 |
| C | 0 | 36523 | 3 |
| D | 0 | 44826 | 11 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 336 | 0 |
| B | 0 | 336 | 0 |
| C | 0 | 336 | 0 |
| D | 0 | 336 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16680 | 256 | 1.534772% |
| B | 16682 | 634 | 3.800504% |
| C | 16682 | 347 | 2.080086% |
| D | 16681 | 732 | 4.388226% |

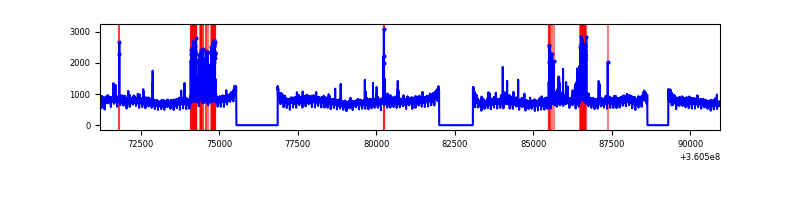

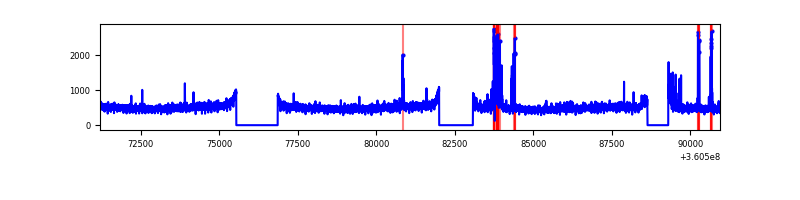

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19741 | 16682 | 55 | 55 | 0.28% | 0.33% |  |
| B | 19742 | 16682 | 170 | 170 | 0.86% | 1.02% |  |
| C | 19742 | 16683 | 29 | 29 | 0.15% | 0.17% |  |
| D | 19742 | 16681 | 554 | 554 | 2.81% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 415085 | 961.9 | 2165 | 2123 | 429.3 |
| A | 13 | 254 | 31032 | 67.34 | 2165 | 2123 | 429.3 |
| A | 3 | 137 | 21217 | 44.47 | 2165 | 2123 | 429.3 |
| B | 6 | 159 | 4470246 | 11229.34 | 2112 | 2067 | 397.9 |
| B | 5 | 255 | 620424 | 1554.04 | 2112 | 2067 | 397.9 |
| B | 0 | 190 | 77932 | 190.66 | 2112 | 2067 | 397.9 |
| C | 3 | 233 | 391960 | 815.32 | 2058 | 2074 | 478.2 |
| C | 14 | 238 | 338258 | 703.02 | 2058 | 2074 | 478.2 |
| C | 0 | 10 | 139048 | 286.44 | 2058 | 2074 | 478.2 |
| D | 10 | 253 | 1805067 | 3668.14 | 2086 | 2037 | 491.5 |
| D | 8 | 195 | 1161057 | 2357.94 | 2086 | 2037 | 491.5 |
| D | 2 | 250 | 226377 | 456.4 | 2086 | 2037 | 491.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

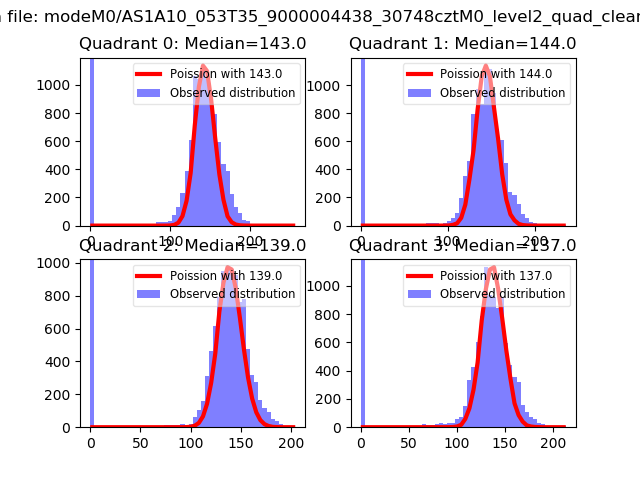

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

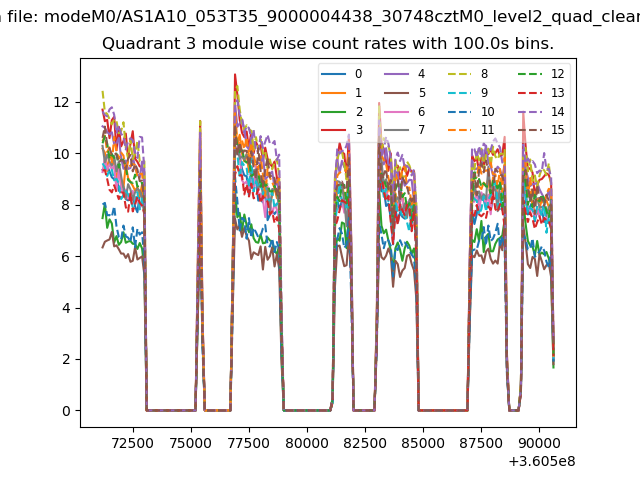

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

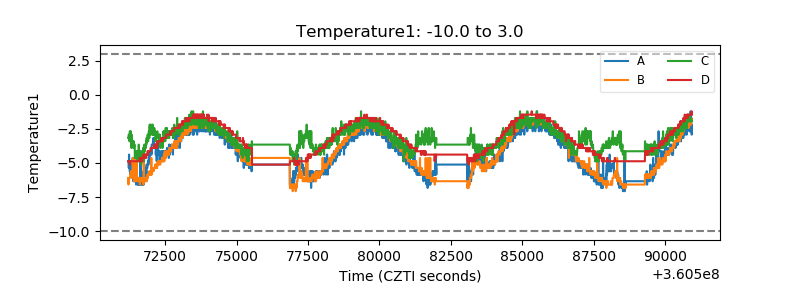

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

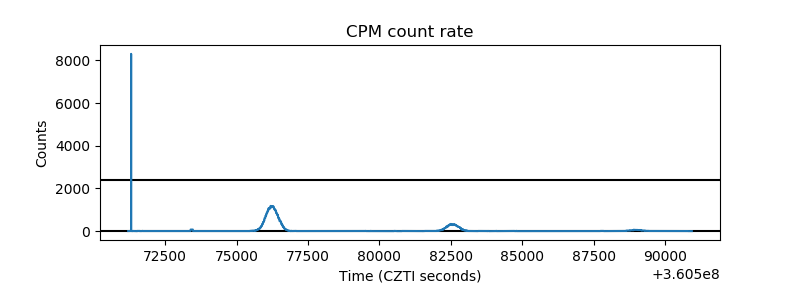

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

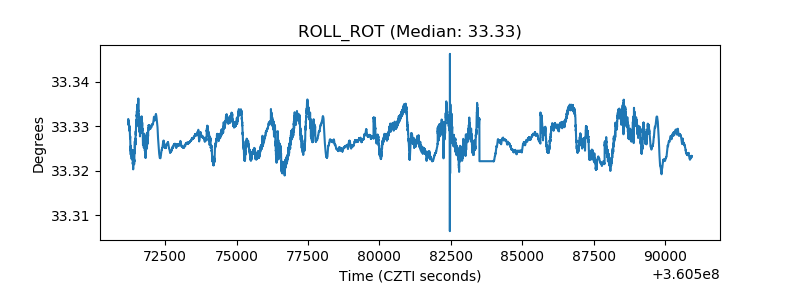

| _ROLL_ROT |  |
| _Roll_DEC |  |

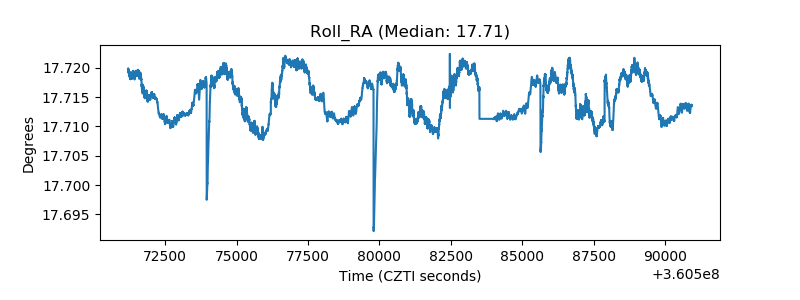

| _Roll_RA |  |
| Veto Counter |  |
