| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T18_9000004448_30788cztM0_level2.evt | modeM0/AS1A10_071T18_9000004448_30788cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,638,720 | 58,740,480 |
| Size | 602.4 MB | 56.0 MB |
| Events in quadrant A | 3,308,856 | 357,408 |
| Events in quadrant B | 5,050,735 | 356,313 |
| Events in quadrant C | 3,823,466 | 331,828 |
| Events in quadrant D | 6,536,099 | 308,009 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13166 | 1 |
| B | 0 | 18620 | 1 |
| C | 0 | 15281 | 1 |
| D | 0 | 23665 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6075 | 55 | 0.905350% |
| B | 6076 | 104 | 1.711652% |
| C | 6076 | 152 | 2.501646% |
| D | 6075 | 358 | 5.893004% |

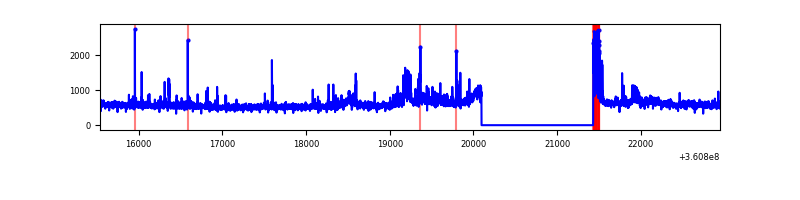

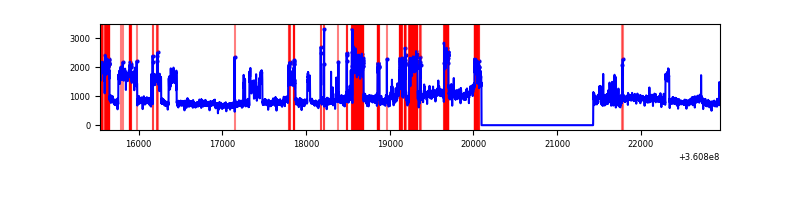

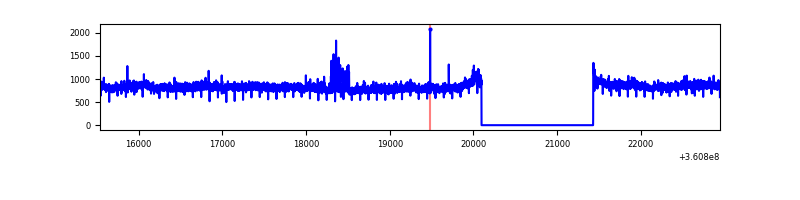

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7410 | 6075 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7411 | 6076 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7411 | 6076 | 33 | 33 | 0.45% | 0.54% |  |
| D | 7410 | 6075 | 366 | 366 | 4.94% | 6.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11094 | 60.18 | 858 | 843 | 170.3 |
| A | 3 | 137 | 7797 | 40.82 | 858 | 843 | 170.3 |
| A | 0 | 226 | 7264 | 37.69 | 858 | 843 | 170.3 |
| B | 6 | 159 | 1648347 | 10365.34 | 849 | 833 | 158.9 |
| B | 0 | 190 | 46116 | 284.9 | 849 | 833 | 158.9 |
| B | 12 | 111 | 18916 | 113.77 | 849 | 833 | 158.9 |
| C | 3 | 233 | 404724 | 2184.15 | 795 | 802 | 184.9 |
| C | 0 | 10 | 164831 | 886.96 | 795 | 802 | 184.9 |
| C | 14 | 238 | 133636 | 718.28 | 795 | 802 | 184.9 |
| D | 8 | 195 | 3314949 | 16237.33 | 784 | 770 | 204.1 |
| D | 12 | 227 | 141716 | 690.54 | 784 | 770 | 204.1 |
| D | 2 | 250 | 64732 | 313.37 | 784 | 770 | 204.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

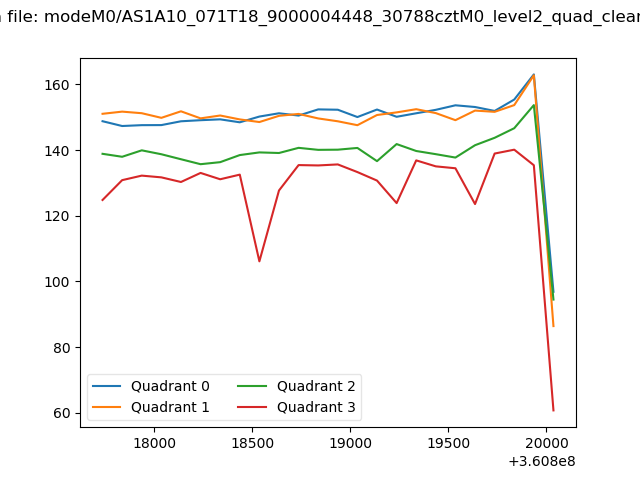

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

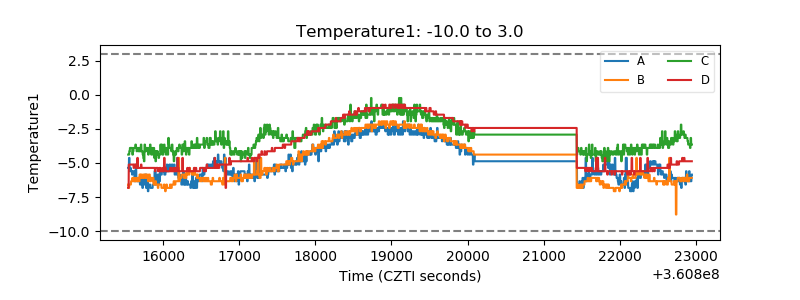

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

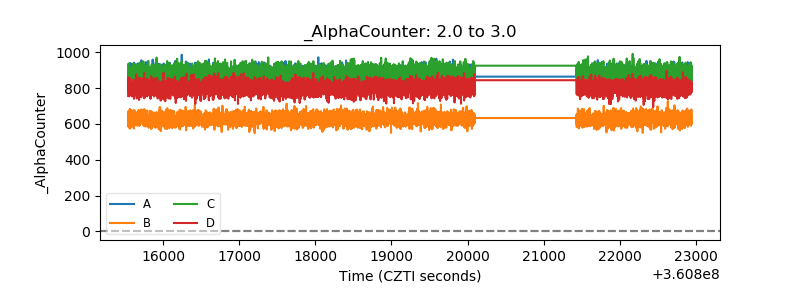

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

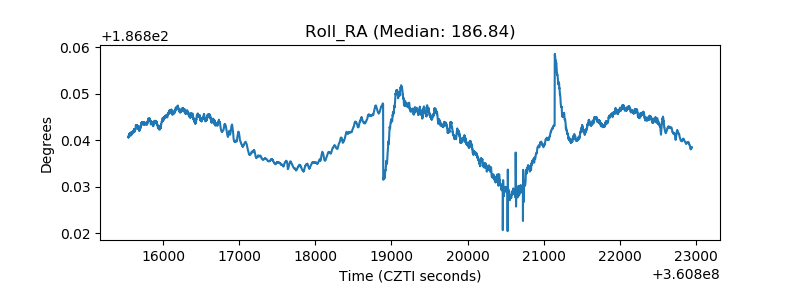

| _ROLL_ROT |  |

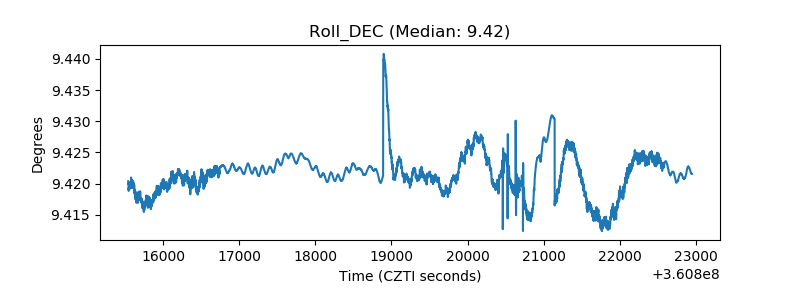

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
