| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T25_9000004450_30800cztM0_level2.evt | modeM0/AS1A10_071T25_9000004450_30800cztM0_level2_quad_clean.evt |
| Size (bytes) | 636,693,120 | 87,782,400 |
| Size | 607.2 MB | 83.7 MB |
| Events in quadrant A | 3,123,983 | 576,387 |
| Events in quadrant B | 5,034,550 | 580,008 |
| Events in quadrant C | 4,513,794 | 537,151 |
| Events in quadrant D | 6,179,119 | 519,137 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13188 | 2 |
| B | 0 | 19392 | 3 |
| C | 0 | 17546 | 2 |
| D | 0 | 22820 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6386 | 14 | 0.219230% |
| B | 6385 | 50 | 0.783085% |
| C | 6385 | 180 | 2.819107% |
| D | 6385 | 270 | 4.228661% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7542 | 6388 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7541 | 6386 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7541 | 6387 | 61 | 61 | 0.81% | 0.96% |  |
| D | 7541 | 6387 | 344 | 344 | 4.56% | 5.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12167 | 70.04 | 808 | 795 | 162.4 |
| A | 3 | 137 | 7934 | 43.97 | 808 | 795 | 162.4 |
| A | 0 | 226 | 6812 | 37.06 | 808 | 795 | 162.4 |
| B | 6 | 159 | 1798408 | 11846.64 | 803 | 785 | 151.7 |
| B | 15 | 32 | 21713 | 137.92 | 803 | 785 | 151.7 |
| B | 12 | 111 | 18767 | 118.5 | 803 | 785 | 151.7 |
| C | 3 | 233 | 1039911 | 5753.42 | 765 | 772 | 180.6 |
| C | 0 | 10 | 353540 | 1953.18 | 765 | 772 | 180.6 |
| C | 14 | 238 | 122829 | 675.8 | 765 | 772 | 180.6 |
| D | 8 | 195 | 3229979 | 16920.3 | 761 | 741 | 190.8 |
| D | 2 | 250 | 43529 | 224.19 | 761 | 741 | 190.8 |
| D | 2 | 234 | 27855 | 142.07 | 761 | 741 | 190.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

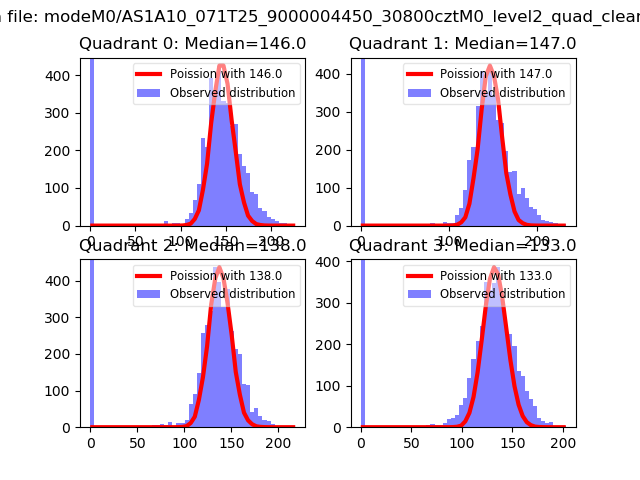

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
