| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T25_9000004450_30804cztM0_level2.evt | modeM0/AS1A10_071T25_9000004450_30804cztM0_level2_quad_clean.evt |
| Size (bytes) | 622,128,960 | 69,782,400 |
| Size | 593.3 MB | 66.5 MB |
| Events in quadrant A | 3,492,005 | 434,974 |
| Events in quadrant B | 5,343,937 | 433,041 |
| Events in quadrant C | 4,111,100 | 402,503 |
| Events in quadrant D | 5,462,109 | 395,705 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13854 | 2 |
| B | 0 | 19860 | 2 |
| C | 0 | 16471 | 2 |
| D | 0 | 21028 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6407 | 75 | 1.170595% |
| B | 6407 | 172 | 2.684564% |
| C | 6407 | 235 | 3.667863% |
| D | 6407 | 96 | 1.498361% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7672 | 6407 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7672 | 6407 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7672 | 6408 | 33 | 33 | 0.43% | 0.51% |  |
| D | 7672 | 6408 | 20 | 20 | 0.26% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11589 | 59.31 | 906 | 894 | 180.3 |
| A | 3 | 137 | 8537 | 42.39 | 906 | 894 | 180.3 |
| A | 0 | 226 | 7664 | 37.54 | 906 | 894 | 180.3 |
| B | 6 | 159 | 1742808 | 10343.58 | 891 | 874 | 168.4 |
| B | 0 | 190 | 55835 | 326.36 | 891 | 874 | 168.4 |
| B | 12 | 111 | 20393 | 115.9 | 891 | 874 | 168.4 |
| C | 3 | 233 | 497198 | 2557.17 | 837 | 844 | 194.1 |
| C | 0 | 10 | 190271 | 975.91 | 837 | 844 | 194.1 |
| C | 14 | 238 | 139175 | 712.67 | 837 | 844 | 194.1 |
| D | 8 | 195 | 2203881 | 11067.56 | 847 | 831 | 199.1 |
| D | 2 | 234 | 26062 | 126.75 | 847 | 831 | 199.1 |
| D | 2 | 250 | 22890 | 110.82 | 847 | 831 | 199.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

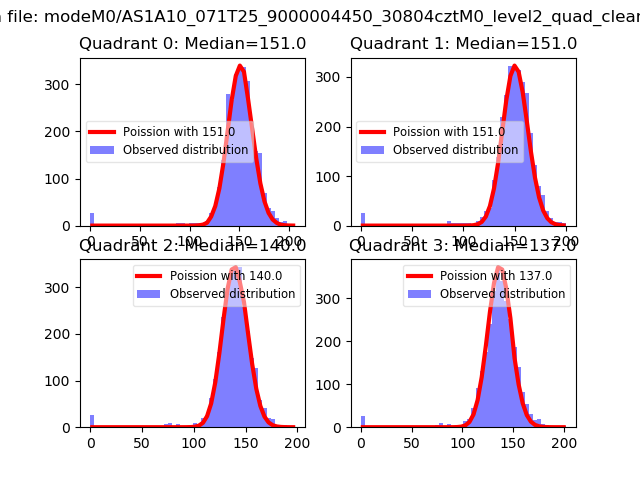

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

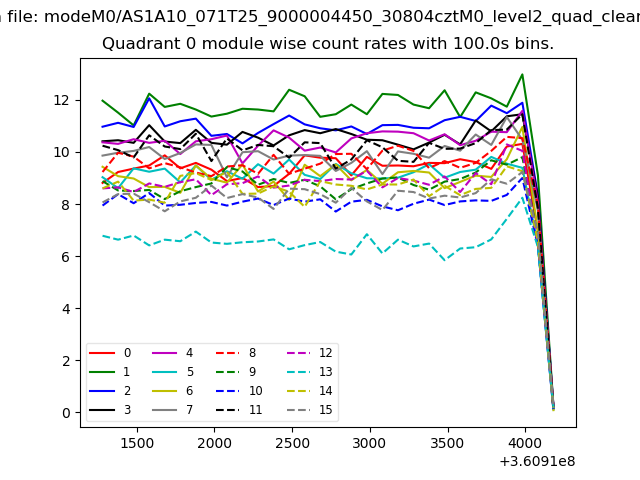

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

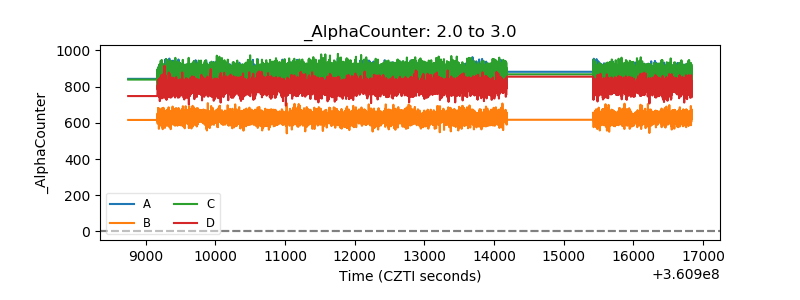

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

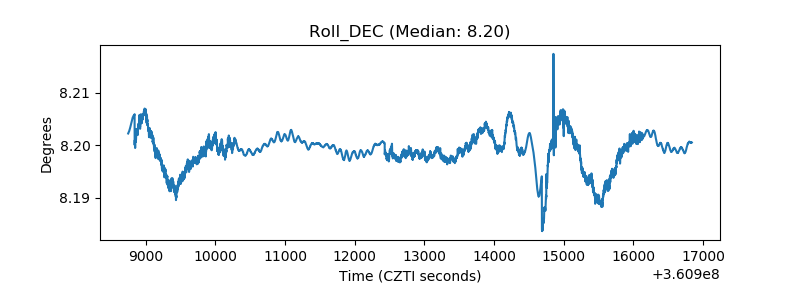

| _Roll_DEC |  |

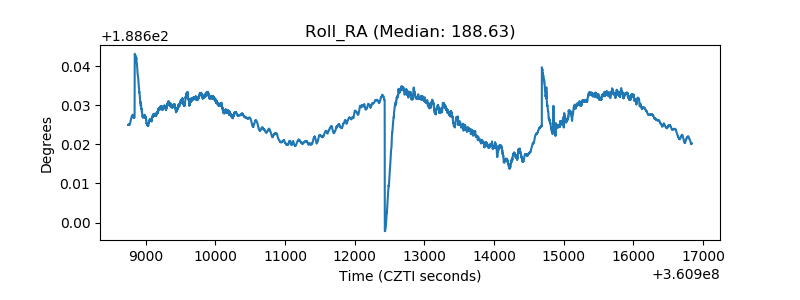

| _Roll_RA |  |
| Veto Counter |  |
