| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_003T01_9000004452_30807cztM0_level2.evt | modeM0/AS1C06_003T01_9000004452_30807cztM0_level2_quad_clean.evt |
| Size (bytes) | 696,352,320 | 124,554,240 |
| Size | 664.1 MB | 118.8 MB |
| Events in quadrant A | 3,599,847 | 845,834 |
| Events in quadrant B | 6,559,625 | 822,076 |
| Events in quadrant C | 5,334,101 | 791,018 |
| Events in quadrant D | 5,088,237 | 791,023 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15561 | 1 |
| B | 0 | 24966 | 1 |
| C | 0 | 20989 | 1 |
| D | 0 | 20243 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7506 | 225 | 2.997602% |
| B | 7507 | 580 | 7.726122% |
| C | 7506 | 383 | 5.102585% |
| D | 7506 | 286 | 3.810285% |

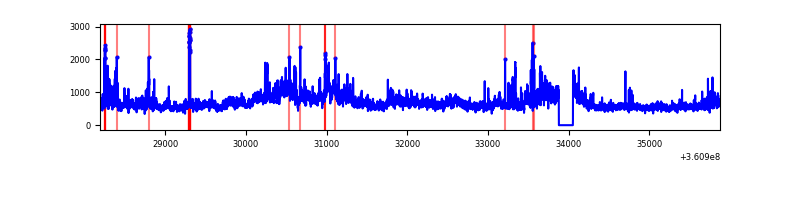

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7681 | 7506 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7682 | 7507 | 228 | 228 | 2.97% | 3.04% |  |
| C | 7681 | 7506 | 32 | 32 | 0.42% | 0.43% |  |
| D | 7681 | 7506 | 93 | 93 | 1.21% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 30476 | 160.94 | 917 | 896 | 183.8 |
| A | 7 | 16 | 14573 | 74.42 | 917 | 896 | 183.8 |
| A | 15 | 174 | 14282 | 72.83 | 917 | 896 | 183.8 |
| B | 6 | 159 | 2079907 | 12357.21 | 883 | 862 | 168.2 |
| B | 5 | 172 | 465557 | 2762.01 | 883 | 862 | 168.2 |
| B | 4 | 80 | 174893 | 1034.39 | 883 | 862 | 168.2 |
| C | 3 | 233 | 1705209 | 8437.55 | 862 | 863 | 202.0 |
| C | 14 | 238 | 139510 | 686.39 | 862 | 863 | 202.0 |
| C | 0 | 10 | 92040 | 451.38 | 862 | 863 | 202.0 |
| D | 8 | 195 | 1534857 | 7243.02 | 879 | 854 | 211.8 |
| D | 12 | 218 | 66375 | 309.36 | 879 | 854 | 211.8 |
| D | 1 | 52 | 33844 | 155.76 | 879 | 854 | 211.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

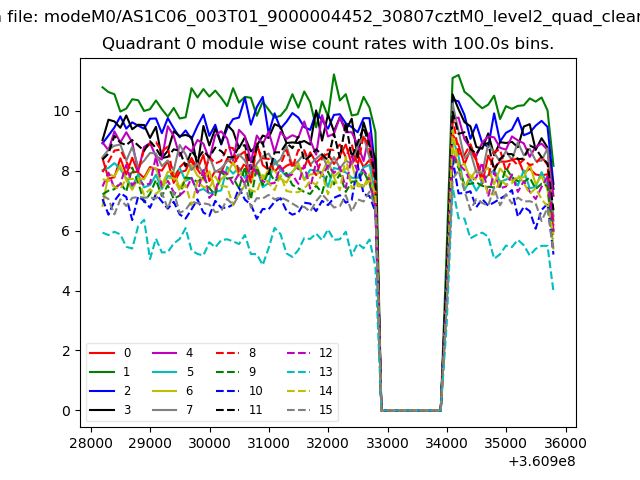

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

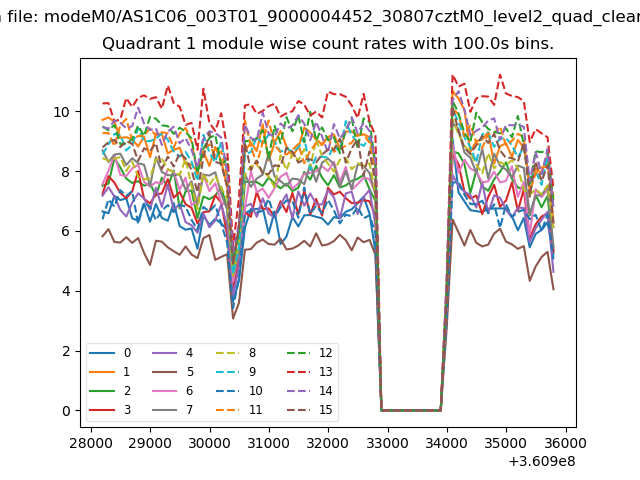

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

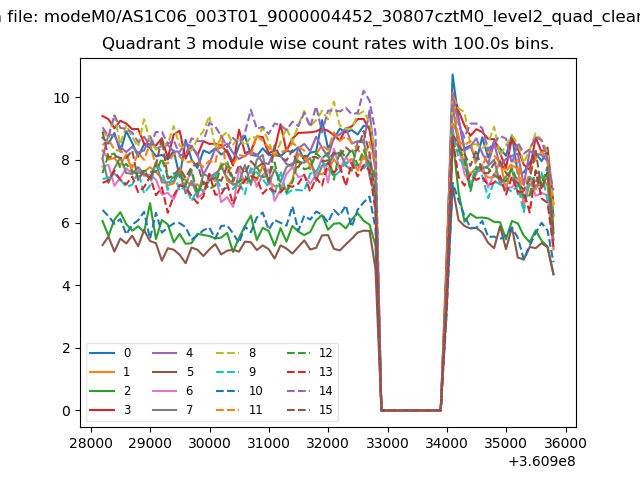

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

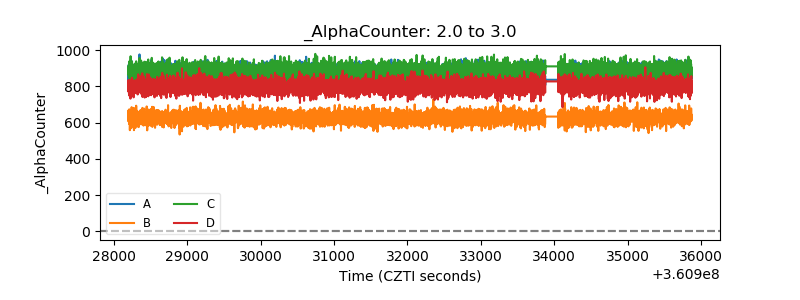

| Alpha Counter |  |

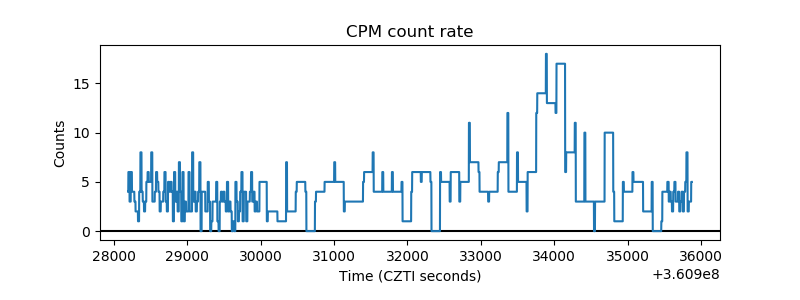

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

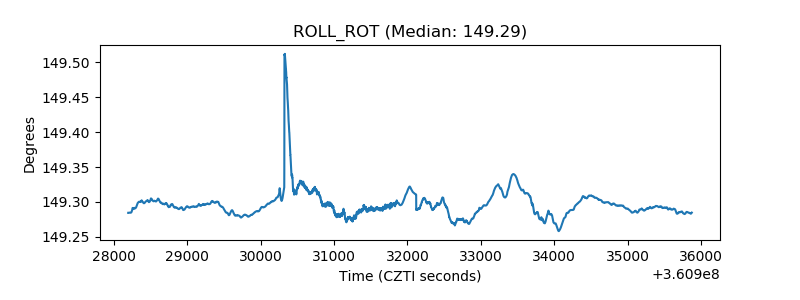

| _ROLL_ROT |  |
| _Roll_DEC |  |

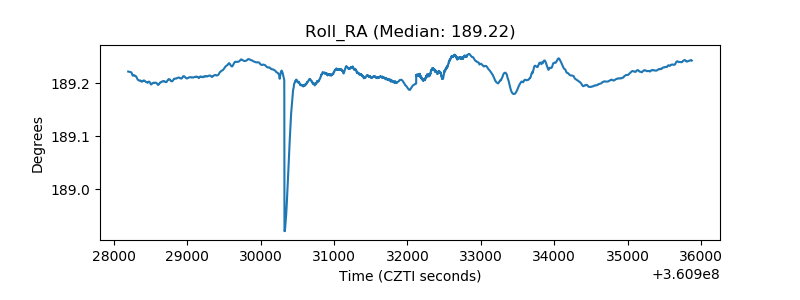

| _Roll_RA |  |
| Veto Counter |  |
