| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_003T01_9000004452_30808cztM0_level2.evt | modeM0/AS1C06_003T01_9000004452_30808cztM0_level2_quad_clean.evt |
| Size (bytes) | 674,928,000 | 105,937,920 |
| Size | 643.7 MB | 101.0 MB |
| Events in quadrant A | 3,127,063 | 724,980 |
| Events in quadrant B | 5,711,041 | 705,894 |
| Events in quadrant C | 4,176,257 | 680,358 |
| Events in quadrant D | 6,975,913 | 632,160 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13730 | 1 |
| B | 0 | 21728 | 1 |
| C | 0 | 16599 | 3 |
| D | 0 | 25236 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6663 | 145 | 2.176197% |
| B | 6664 | 365 | 5.477191% |
| C | 6663 | 253 | 3.797088% |
| D | 6663 | 1045 | 15.683626% |

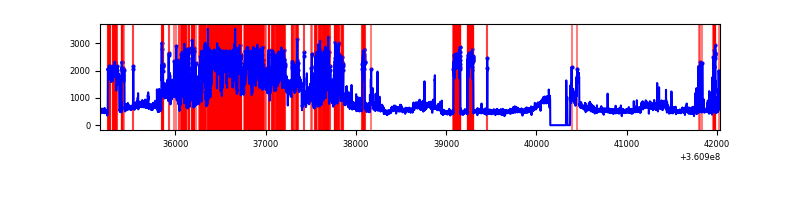

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6868 | 6665 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6869 | 6664 | 95 | 95 | 1.38% | 1.43% |  |
| C | 6868 | 6663 | 29 | 29 | 0.42% | 0.44% |  |
| D | 6868 | 6664 | 928 | 928 | 13.51% | 13.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12095 | 69.39 | 809 | 790 | 162.9 |
| A | 3 | 137 | 8005 | 44.29 | 809 | 790 | 162.9 |
| A | 0 | 226 | 6894 | 37.47 | 809 | 790 | 162.9 |
| B | 6 | 159 | 1906301 | 12557.42 | 789 | 768 | 151.7 |
| B | 4 | 80 | 267391 | 1757.04 | 789 | 768 | 151.7 |
| B | 5 | 172 | 112538 | 736.56 | 789 | 768 | 151.7 |
| C | 3 | 233 | 970244 | 5369.97 | 769 | 772 | 180.5 |
| C | 14 | 238 | 121497 | 668.7 | 769 | 772 | 180.5 |
| C | 0 | 10 | 40097 | 217.82 | 769 | 772 | 180.5 |
| D | 8 | 195 | 2388869 | 13052.44 | 744 | 725 | 183.0 |
| D | 12 | 218 | 1251189 | 6834.43 | 744 | 725 | 183.0 |
| D | 12 | 6 | 325268 | 1773.79 | 744 | 725 | 183.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

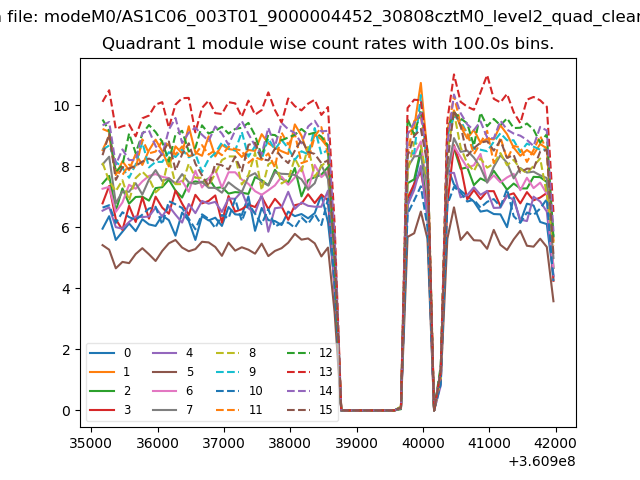

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

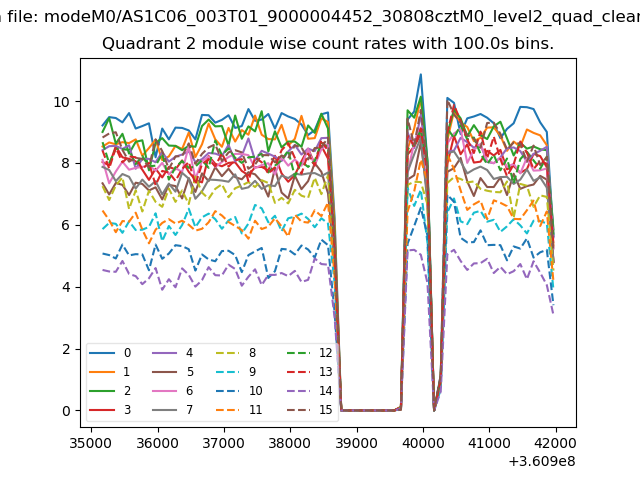

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

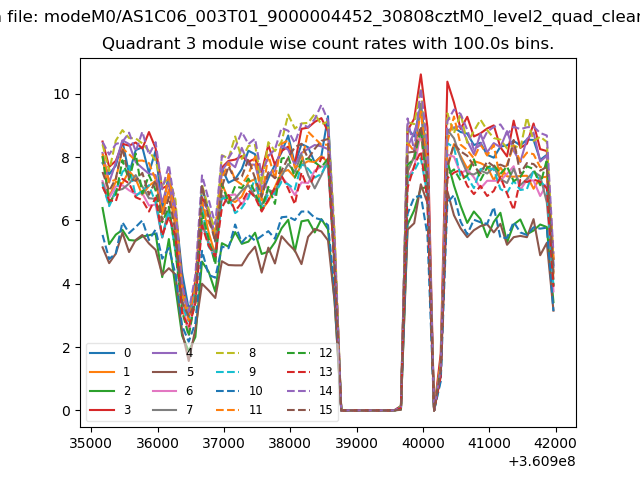

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

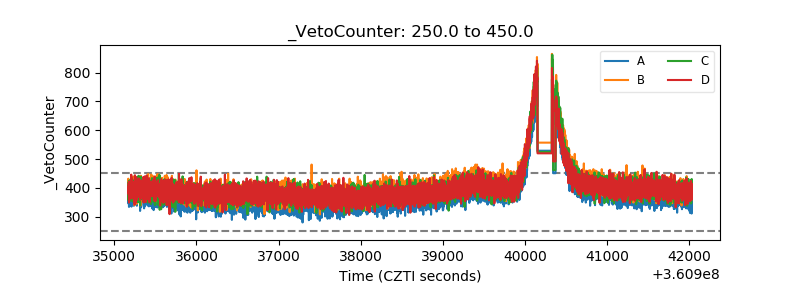

| Veto HV Monitor |  |
| Veto LLD |  |

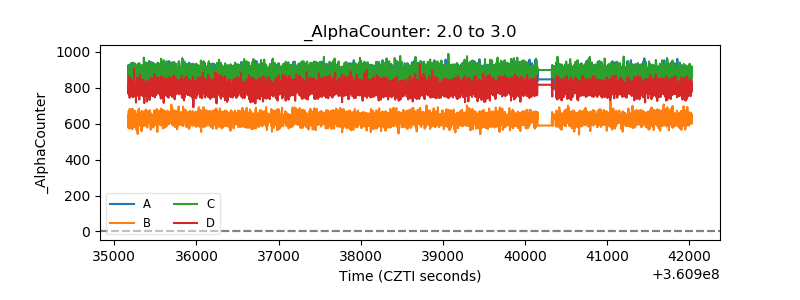

| Alpha Counter |  |
| _CPM_Rate |  |

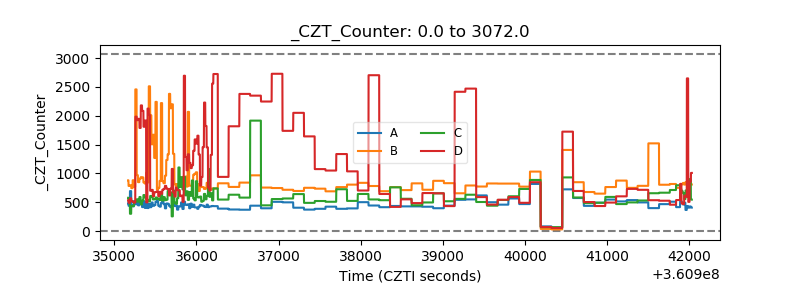

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

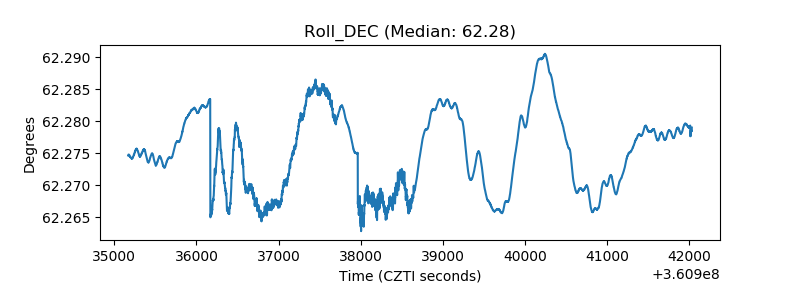

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
