| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_003T01_9000004452_30812cztM0_level2.evt | modeM0/AS1C06_003T01_9000004452_30812cztM0_level2_quad_clean.evt |
| Size (bytes) | 662,235,840 | 98,642,880 |
| Size | 631.6 MB | 94.1 MB |
| Events in quadrant A | 3,097,627 | 694,075 |
| Events in quadrant B | 5,140,672 | 689,028 |
| Events in quadrant C | 4,039,703 | 664,008 |
| Events in quadrant D | 7,347,943 | 495,857 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13539 | 2 |
| B | 0 | 20047 | 1 |
| C | 0 | 16231 | 1 |
| D | 0 | 26135 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6357 | 60 | 0.943841% |
| B | 6358 | 170 | 2.673797% |
| C | 6358 | 252 | 3.963511% |
| D | 6358 | 1869 | 29.396036% |

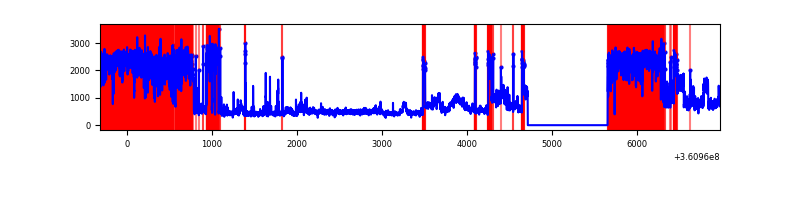

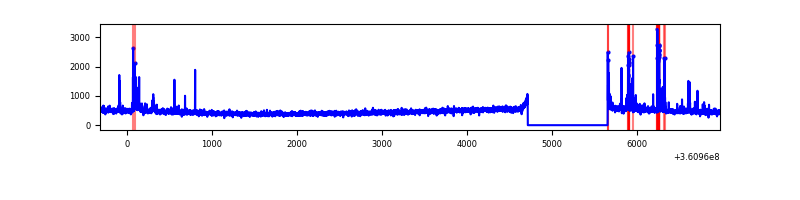

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7297 | 6357 | 32 | 32 | 0.44% | 0.50% |  |
| B | 7298 | 6358 | 59 | 59 | 0.81% | 0.93% |  |
| C | 7298 | 6358 | 65 | 65 | 0.89% | 1.02% |  |
| D | 7298 | 6358 | 1647 | 1647 | 22.57% | 25.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 202785 | 1331.76 | 749 | 733 | 151.7 |
| A | 13 | 254 | 12333 | 76.46 | 749 | 733 | 151.7 |
| A | 3 | 137 | 7637 | 45.51 | 749 | 733 | 151.7 |
| B | 6 | 159 | 1892220 | 13454.99 | 741 | 721 | 140.6 |
| B | 5 | 172 | 215016 | 1524.36 | 741 | 721 | 140.6 |
| B | 4 | 80 | 58824 | 413.31 | 741 | 721 | 140.6 |
| C | 3 | 233 | 979621 | 5809.58 | 720 | 724 | 168.5 |
| C | 14 | 238 | 117051 | 690.38 | 720 | 724 | 168.5 |
| C | 0 | 10 | 110241 | 649.96 | 720 | 724 | 168.5 |
| D | 12 | 218 | 2680449 | 19417.94 | 581 | 569 | 138.0 |
| D | 8 | 195 | 1708642 | 12376.4 | 581 | 569 | 138.0 |
| D | 2 | 250 | 413541 | 2992.32 | 581 | 569 | 138.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

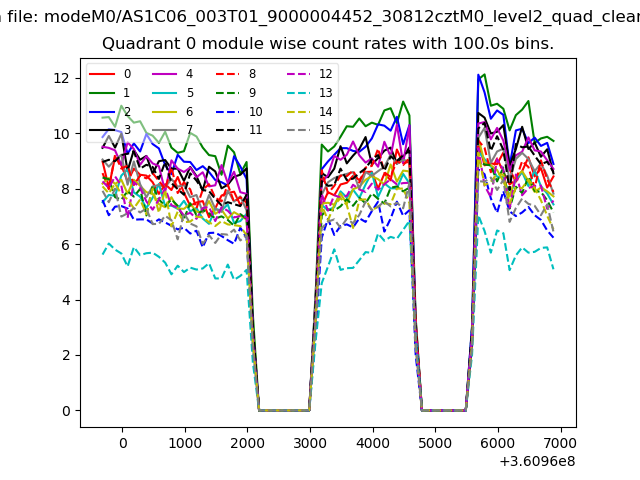

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

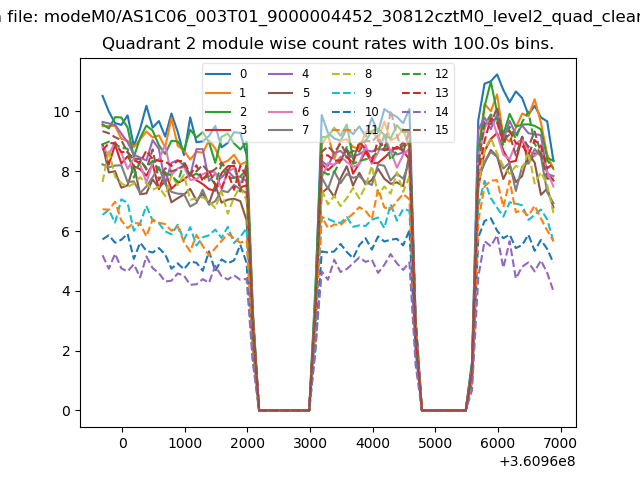

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

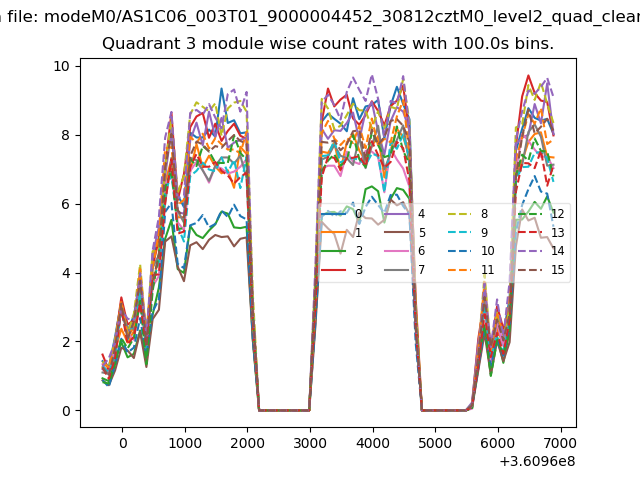

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

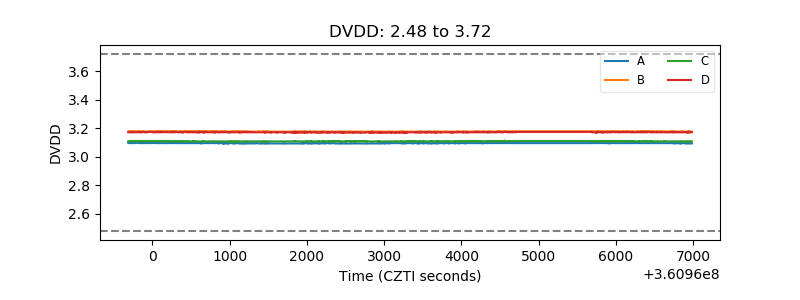

| D_VDD |  |

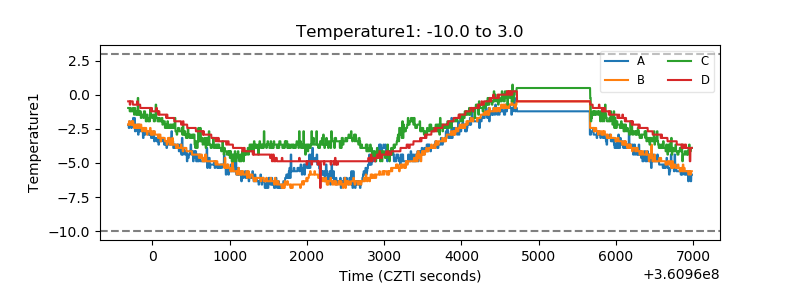

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

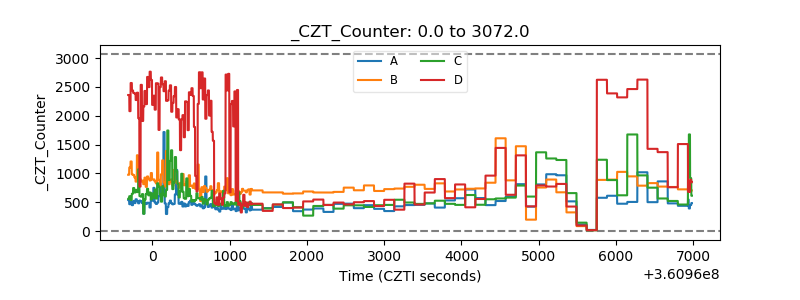

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
