| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_003T01_9000004452_30816cztM0_level2.evt | modeM0/AS1C06_003T01_9000004452_30816cztM0_level2_quad_clean.evt |
| Size (bytes) | 641,266,560 | 111,087,360 |
| Size | 611.6 MB | 105.9 MB |
| Events in quadrant A | 3,345,954 | 756,546 |
| Events in quadrant B | 5,387,776 | 761,454 |
| Events in quadrant C | 3,491,035 | 719,680 |
| Events in quadrant D | 6,755,846 | 671,995 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14027 | 2 |
| B | 0 | 20353 | 2 |
| C | 0 | 14441 | 2 |
| D | 0 | 24744 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6512 | 54 | 0.829238% |
| B | 6512 | 126 | 1.934889% |
| C | 6512 | 140 | 2.149877% |
| D | 6512 | 545 | 8.369165% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 6513 | 27 | 27 | 0.35% | 0.41% |  |
| B | 7782 | 6512 | 33 | 33 | 0.42% | 0.51% |  |
| C | 7782 | 6512 | 21 | 21 | 0.27% | 0.32% |  |
| D | 7782 | 6512 | 447 | 447 | 5.74% | 6.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 144939 | 886.0 | 828 | 814 | 162.7 |
| A | 13 | 254 | 12692 | 73.02 | 828 | 814 | 162.7 |
| A | 3 | 137 | 7509 | 41.15 | 828 | 814 | 162.7 |
| B | 6 | 159 | 1924648 | 12600.42 | 826 | 806 | 152.7 |
| B | 5 | 172 | 82367 | 534.19 | 826 | 806 | 152.7 |
| B | 0 | 155 | 57162 | 369.11 | 826 | 806 | 152.7 |
| C | 14 | 238 | 130804 | 709.42 | 791 | 797 | 183.3 |
| C | 0 | 10 | 125572 | 680.87 | 791 | 797 | 183.3 |
| C | 3 | 233 | 90729 | 490.74 | 791 | 797 | 183.3 |
| D | 8 | 195 | 3157841 | 17535.65 | 768 | 752 | 180.0 |
| D | 2 | 250 | 213203 | 1180.03 | 768 | 752 | 180.0 |
| D | 12 | 6 | 160379 | 886.63 | 768 | 752 | 180.0 |

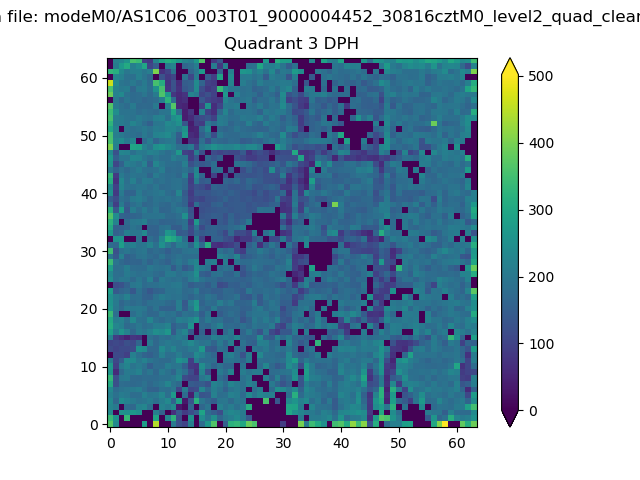

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

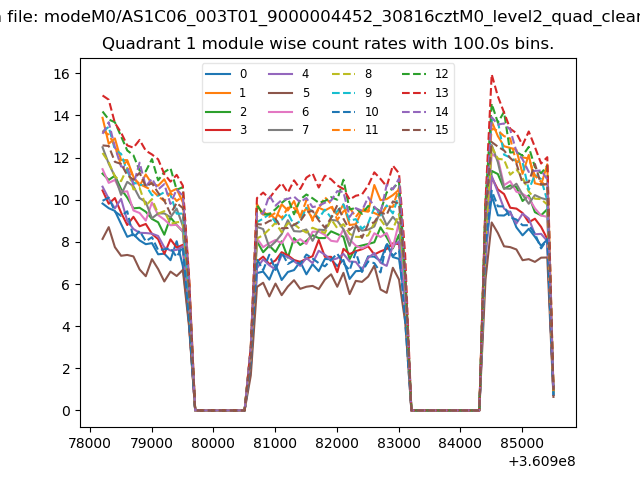

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

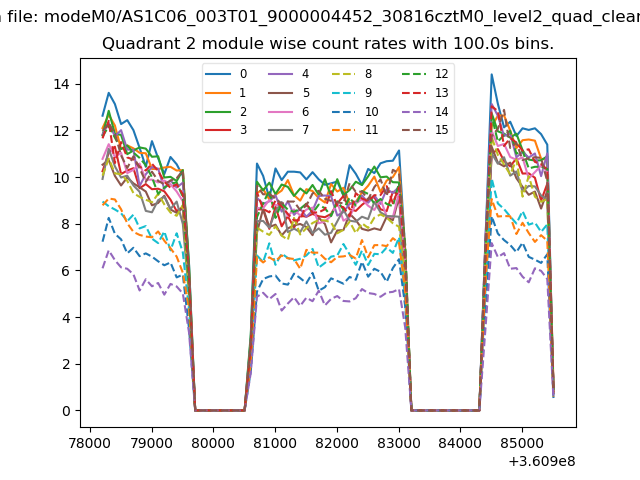

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

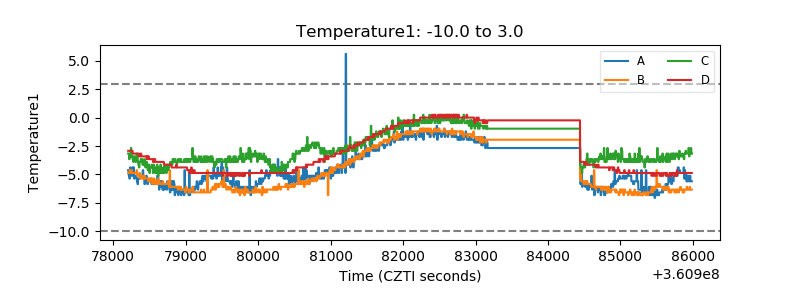

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

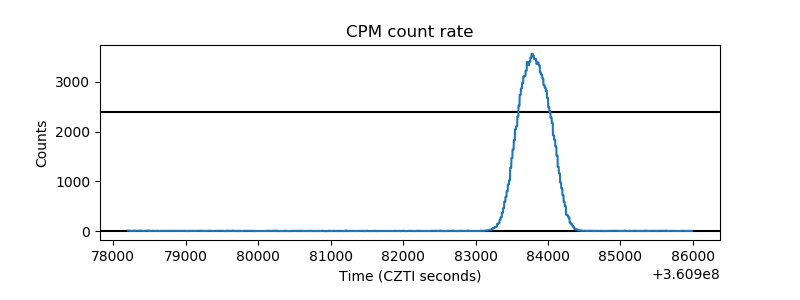

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

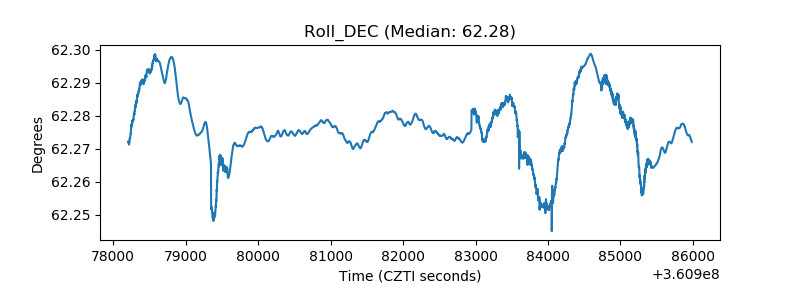

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
