| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_003T01_9000004452_30819cztM0_level2.evt | modeM0/AS1C06_003T01_9000004452_30819cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,283,520 | 91,296,000 |
| Size | 556.3 MB | 87.1 MB |
| Events in quadrant A | 3,212,017 | 604,765 |
| Events in quadrant B | 5,038,197 | 604,504 |
| Events in quadrant C | 3,238,500 | 573,941 |
| Events in quadrant D | 5,756,695 | 548,599 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13222 | 1 |
| B | 0 | 19117 | 4 |
| C | 0 | 13202 | 1 |
| D | 0 | 21468 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6200 | 132 | 2.129032% |
| B | 6200 | 193 | 3.112903% |
| C | 6200 | 179 | 2.887097% |
| D | 6200 | 335 | 5.403226% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7310 | 6200 | 10 | 10 | 0.14% | 0.16% |  |
| B | 7310 | 6200 | 11 | 11 | 0.15% | 0.18% |  |
| C | 7310 | 6200 | 10 | 10 | 0.14% | 0.16% |  |
| D | 7310 | 6200 | 183 | 183 | 2.50% | 2.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 141834 | 901.17 | 795 | 780 | 156.5 |
| A | 13 | 254 | 12115 | 72.42 | 795 | 780 | 156.5 |
| A | 3 | 137 | 7498 | 42.92 | 795 | 780 | 156.5 |
| B | 6 | 159 | 1794580 | 12224.29 | 783 | 762 | 146.7 |
| B | 4 | 80 | 62183 | 418.56 | 783 | 762 | 146.7 |
| B | 0 | 155 | 41071 | 274.69 | 783 | 762 | 146.7 |
| C | 14 | 238 | 124088 | 715.86 | 747 | 750 | 172.3 |
| C | 3 | 233 | 88048 | 506.68 | 747 | 750 | 172.3 |
| C | 0 | 10 | 71809 | 412.43 | 747 | 750 | 172.3 |
| D | 8 | 195 | 2034664 | 11708.36 | 748 | 733 | 173.7 |
| D | 7 | 69 | 310742 | 1784.57 | 748 | 733 | 173.7 |
| D | 12 | 218 | 276547 | 1587.73 | 748 | 733 | 173.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

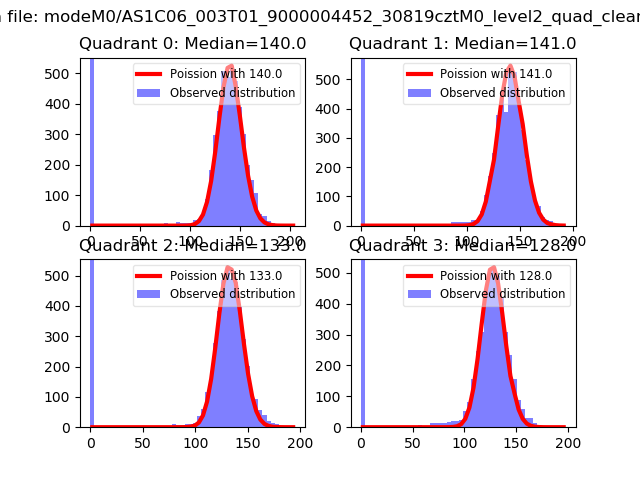

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

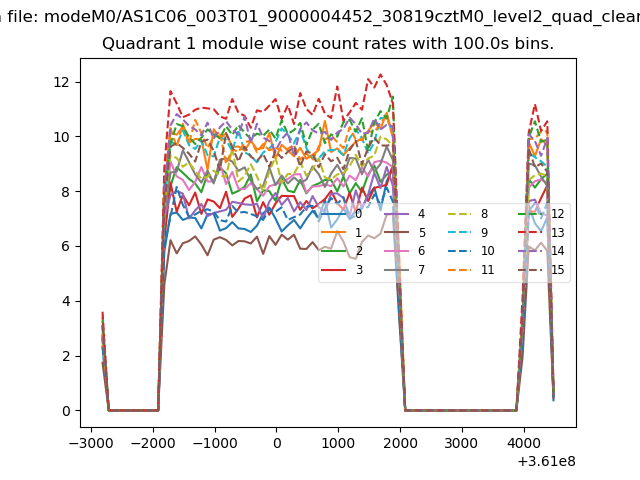

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

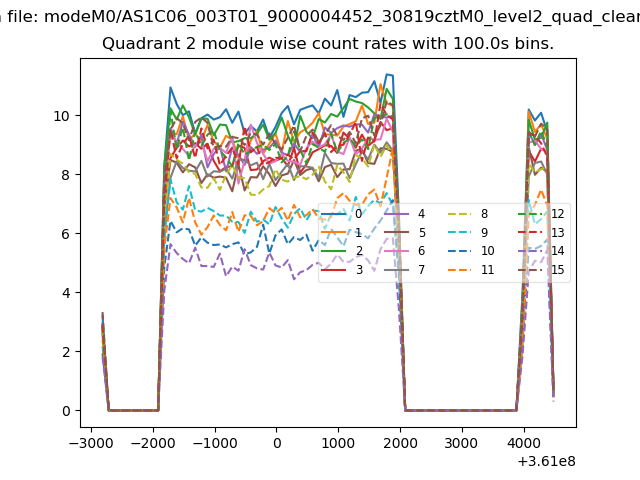

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

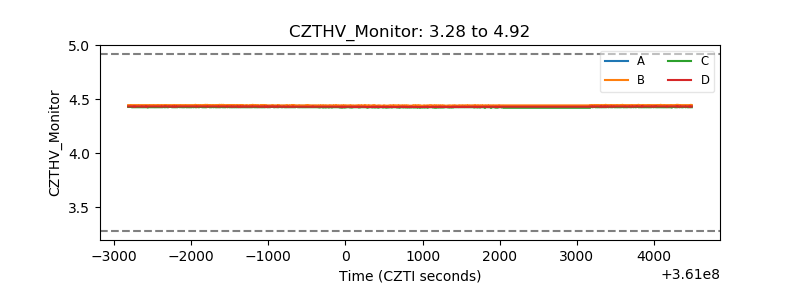

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

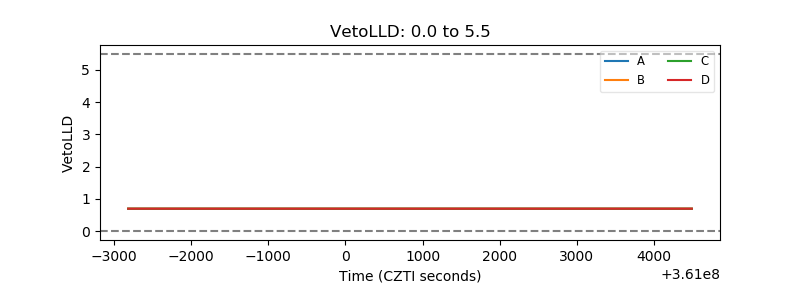

| Veto LLD |  |

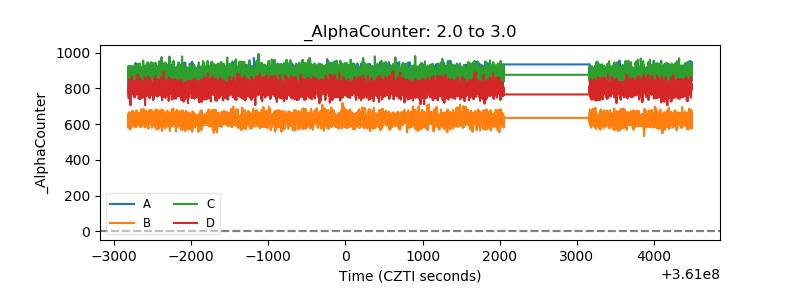

| Alpha Counter |  |

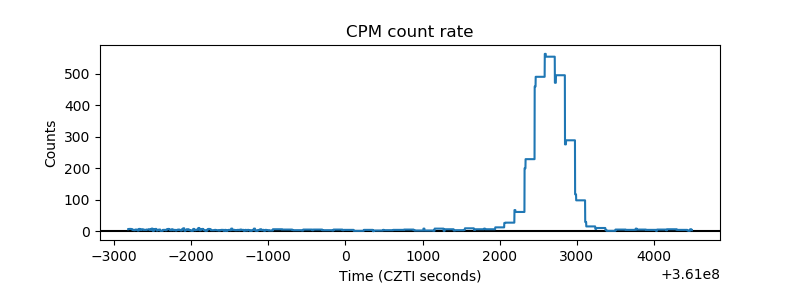

| _CPM_Rate |  |

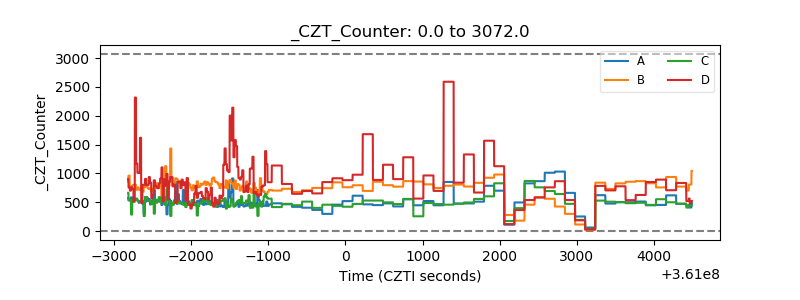

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
